IRF3415PBF

150V N-channel power MOSFET, 43A, 41mΩ RDS(on), TO-220AB package

2940

Effective Inventory
Go to Inquiry

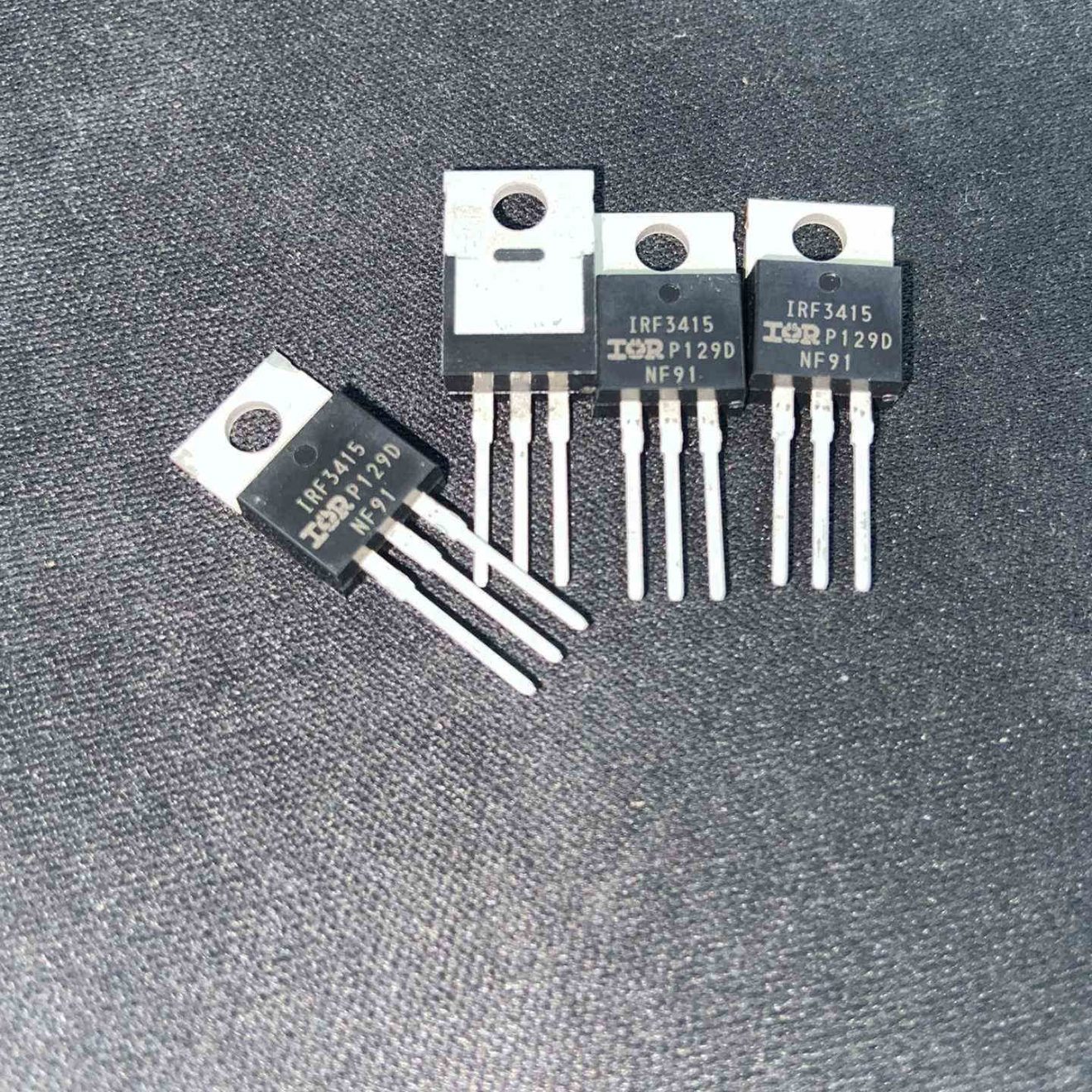

Image for reference only

Manufacturer Part：

IRF3415PBF

Package：

TO-220AB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF3415PBF is an N-channel HEXFET power MOSFET from Infineon Technologies with 150V voltage rating and 43A current capability. It features low on-resistance and fast switching characteristics, packaged in a TO-220AB through-hole package for high-power switching applications.

Key Specifications

Parameter Value
Drain-Source Voltage (VDSS) 150V
Continuous Drain Current (ID) 43A @ Tc=25°C
On-Resistance (RDS(on)) 41mΩ max @ VGS=10V
Gate Threshold Voltage (VGS(th)) 2V to 4V
Total Gate Charge (Qg) 130nC (typ)
Power Dissipation (PD) 250W @ Tc=25°C
Operating Junction Temperature -55°C to +175°C
Package TO-220AB

Features

  • Low on-resistance (RDS(on) = 41mΩ max)
  • Fast switching speed
  • Fully characterized avalanche voltage and current
  • Dynamic dv/dt rating
  • High ruggedness and reliability
  • RoHS compliant and lead-free
  • Standard TO-220AB package

Applications

  • DC-DC converters
  • Switch-mode power supplies
  • Motor control and drives
  • Power factor correction (PFC)
  • Industrial automation
  • Solar inverters

The IRF3415PBF is a 150V N-channel enhancement mode power MOSFET from Infineon’s HEXFET family. It combines low on-resistance with fast switching performance, making it suitable for a wide range of power conversion applications. The TO-220AB package provides excellent thermal dissipation capabilities for high-power designs.

The IRF3415PBF is an N-channel enhancement-mode MOSFET. When VGS exceeds the threshold voltage (VGS(th) = 2-4V), a conductive channel forms between drain and source, allowing current flow. The device operates in the saturation region for linear applications and in the triode (ohmic) region for switching applications. When used as a switch, it transitions between the cut-off region (VGS > VGS(th), minimal on-resistance). The gate is insulated by SiO2, providing very high input impedance.

Pin Number Symbol Description
1 Gate (G) Gate control terminal
2 Drain (D) Drain terminal
3 Source (S) Source terminal
Tab Drain Tab connected to drain
  • DC-DC converters
  • Switch-mode power supplies
  • Motor control and drives
  • Power factor correction (PFC)
  • Industrial automation
  • Solar inverters
Model Manufacturer Voltage Package
IRF540NPBF Infineon 100V TO-220AB
IRF640NPBF Infineon 200V TO-220AB
FDP050N15 ON Semiconductor 150V TO-220
