IRF3710STRLPBF

100V N-channel MOSFET, 57A, 23mΩ RDS(on), D2PAK (TO-263) surface mount package

7230

Effective Inventory
Go to Inquiry

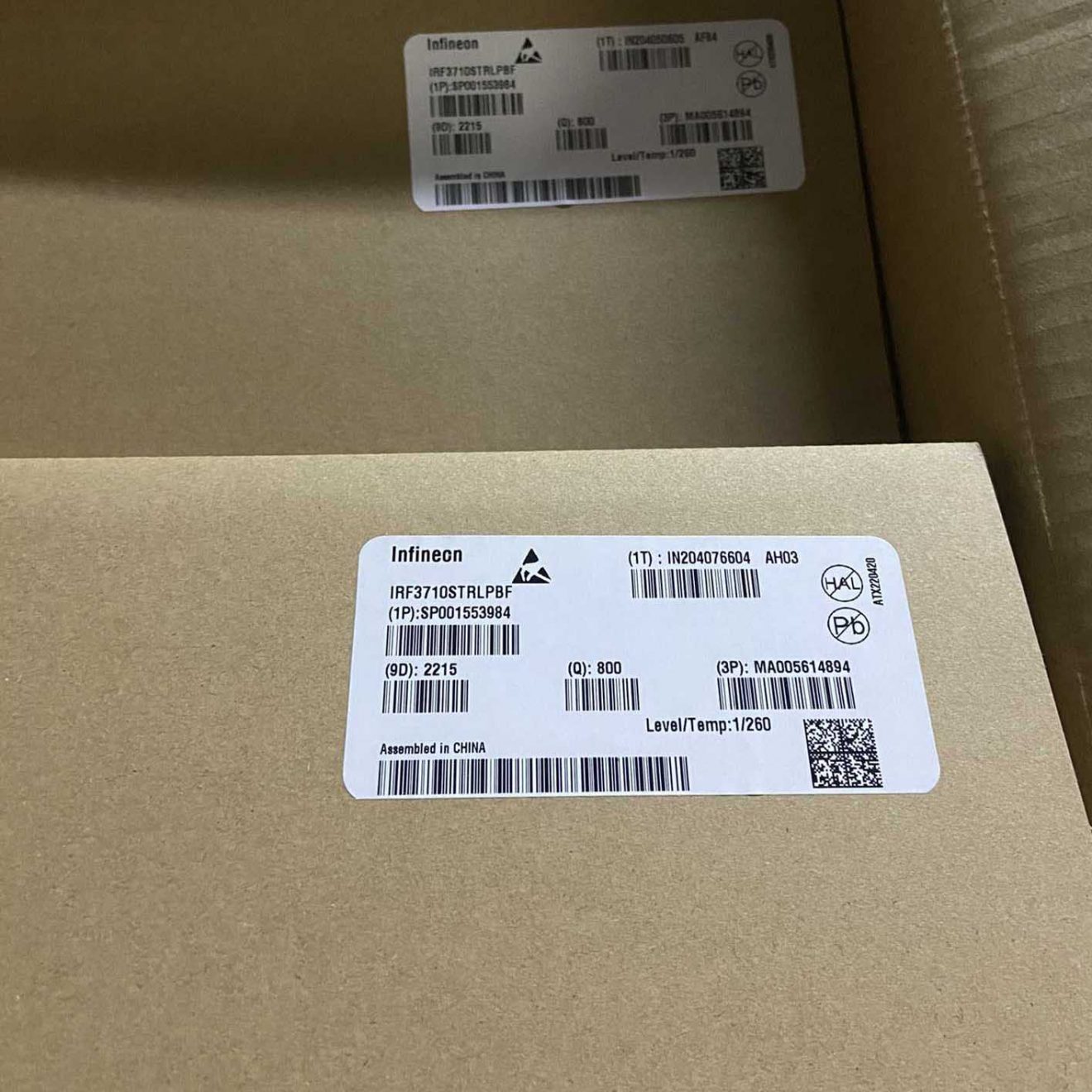

Image for reference only

Manufacturer Part：

IRF3710STRLPBF

Package：

D2PAK (TO-263)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF3710STRLPBF is an N-channel HEXFET power MOSFET from Infineon Technologies with 100V rating and 57A continuous drain current capability. This surface-mount D2PAK (TO-263) device offers low on-resistance combined with excellent thermal performance for high-power switching applications.

Key Specifications

Parameter Value
Drain-Source Voltage (VDSS) 100V
Continuous Drain Current (ID) 57A @ Tc=25°C
On-Resistance (RDS(on)) 23mΩ max @ VGS=10V
Gate Threshold Voltage (VGS(th)) 2V to 4V
Total Gate Charge (Qg) 140nC (typ)
Power Dissipation (PD) 200W @ Tc=25°C
Operating Junction Temperature -55°C to +175°C
Package D2PAK (TO-263)

Features

  • Low on-resistance (RDS(on) = 23mΩ max)
  • High current handling (57A continuous)
  • Fast switching performance
  • Fully characterized avalanche energy
  • Dynamic dv/dt rating
  • Surface-mount D2PAK package
  • RoHS compliant and lead-free

Applications

  • DC-DC converters
  • Synchronous rectification
  • Motor control and drives
  • Power supplies
  • Battery management
  • Automotive electronics

The IRF3710STRLPBF is a 100V N-channel HEXFET power MOSFET in a D2PAK surface-mount package. Using Infineon’s advanced silicon processing, this device achieves very low on-resistance while maintaining fast switching characteristics. The D2PAK package offers excellent thermal dissipation through its large drain tab, making it suitable for high-power surface-mount designs.

The IRF3710STRLPBF operates as an N-channel enhancement-mode MOSFET. Applying a positive gate-source voltage above the threshold (2-4V) creates an n-type inversion layer in the p-type body region, forming a conductive channel between the heavily n-doped source and drain regions. Higher VGS reduces on-resistance. In switching applications, the device transitions between cut-off (blocking) and ohmic (conducting) states. The gate oxide provides complete electrical isolation between the gate and channel, resulting in extremely high input impedance.

Pin Number Symbol Description
1 Gate (G) Gate terminal
2 Drain (D) Drain terminal (also tab)
3 Source (S) Source terminal
Tab Drain Large tab connected to drain for thermal dissipation
  • DC-DC converters
  • Synchronous rectification
  • Motor control and drives
  • Power supplies
  • Battery management
  • Automotive electronics
Model Manufacturer Voltage Package
IRF3710PBF Infineon 100V TO-220AB
IPP023N10N5 Infineon 100V TO-220
NTD64N10RT4G ON Semiconductor 100V D2PAK
