IRF530NSTRLPBF

100V N-channel power MOSFET, 17A, 90mΩ RDS(on), D2PAK (TO-263) surface mount

6890

Effective Inventory
Go to Inquiry

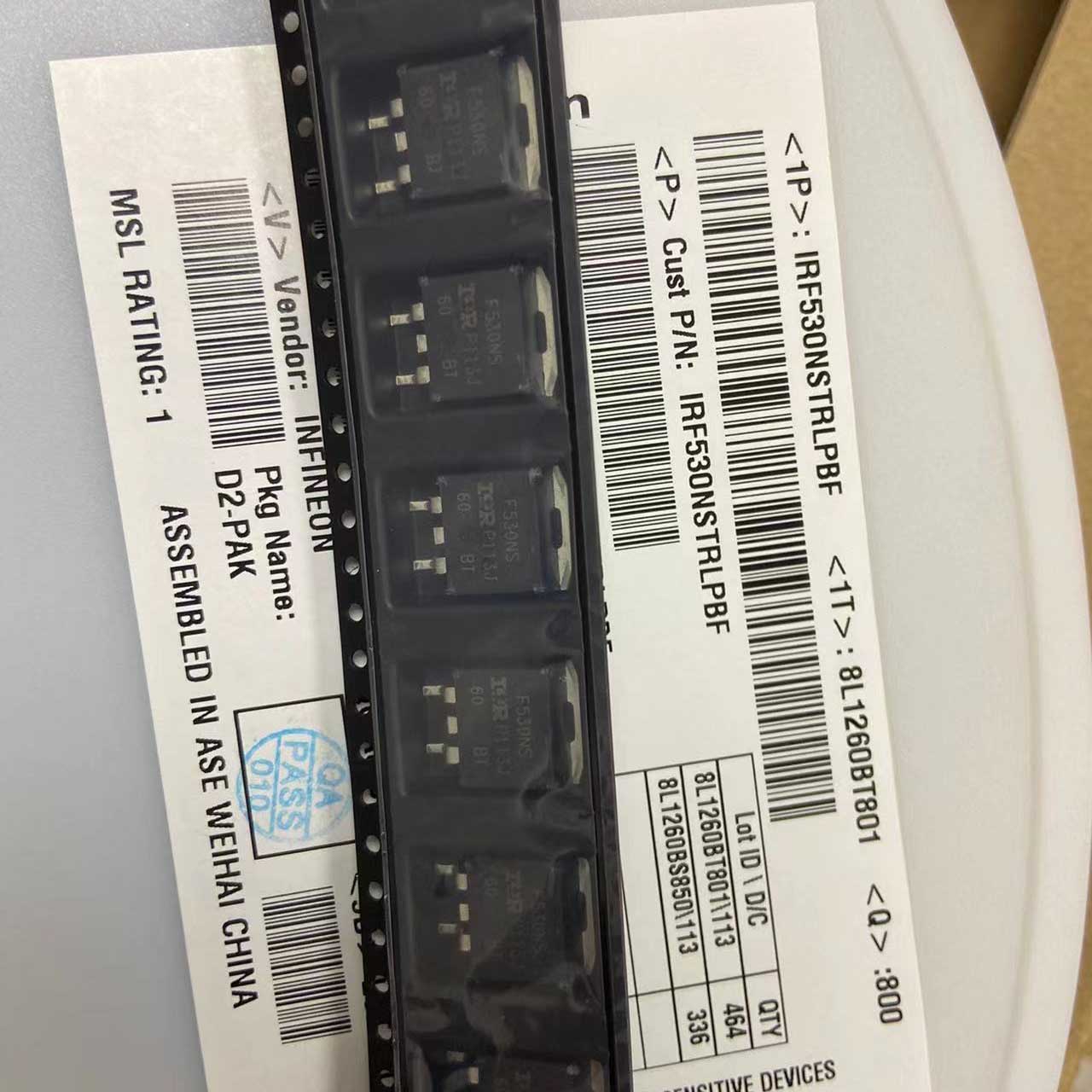

Image for reference only

Manufacturer Part：

IRF530NSTRLPBF

Package：

D2PAK (TO-263)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF530NSTRLPBF is an N-channel HEXFET power MOSFET from Infineon Technologies with 100V voltage rating and 17A continuous drain current. Packaged in a D2PAK (TO-263) surface-mount form factor, this device offers a balance of voltage rating, current capability, and on-resistance for general purpose power switching applications.

Key Specifications

Parameter Value
Drain-Source Voltage (VDSS) 100V
Continuous Drain Current (ID) 17A @ Tc=25°C
On-Resistance (RDS(on)) 90mΩ max @ VGS=10V
Gate Threshold Voltage (VGS(th)) 2V to 4V
Total Gate Charge (Qg) 72nC (typ)
Power Dissipation (PD) 88W @ Tc=25°C
Operating Junction Temperature -55°C to +175°C
Package D2PAK (TO-263)

Features

  • N-channel enhancement mode MOSFET
  • Low on-resistance (90mΩ max)
  • Fast switching speed
  • Fully characterized avalanche voltage and current
  • Dynamic dv/dt rating
  • Surface-mount D2PAK package
  • RoHS compliant and lead-free
  • Industry standard pinout

Applications

  • DC-DC converters
  • Switch-mode power supplies
  • Motor control
  • Load switching
  • Power management circuits
  • Industrial electronics

The IRF530NSTRLPBF is an N-channel enhancement mode HEXFET power MOSFET from Infineon Technologies. This device is designed for general purpose power switching applications, offering a good balance between on-resistance and gate charge. The D2PAK surface-mount package provides good thermal dissipation and is suitable for automated PCB assembly.

The IRF530NSTRLPBF operates as a standard N-channel enhancement-mode MOSFET. When a sufficient positive voltage is applied between gate and source (exceeding the threshold voltage of 2-4V), an n-type conductive channel forms in the p-type body region, allowing current to flow between drain and source. The device is designed primarily for switching applications where it operates in the cut-off (off) and triode (on) regions. The gate is electrically isolated by a silicon dioxide layer, providing very high input impedance and negligible gate drive current in steady state.

Pin Number Symbol Description
1 Gate (G) Gate control terminal
2 Drain (D) Drain terminal
3 Source (S) Source terminal
Tab Drain Tab connected to drain for heat dissipation
  • DC-DC converters
  • Switch-mode power supplies
  • Motor control
  • Load switching
  • Power management circuits
  • Industrial electronics
Model Manufacturer Voltage Package
IRF530NPBF Infineon 100V TO-220AB
FQP17N10 ON Semiconductor 100V TO-220
RFD17N10 ON Semiconductor 100V DPAK
