IRF7309TRPBF

30V complementary N+P channel MOSFET pair, 5.3A/-4.9A, SOIC-8 package

9870

Effective Inventory
Go to Inquiry

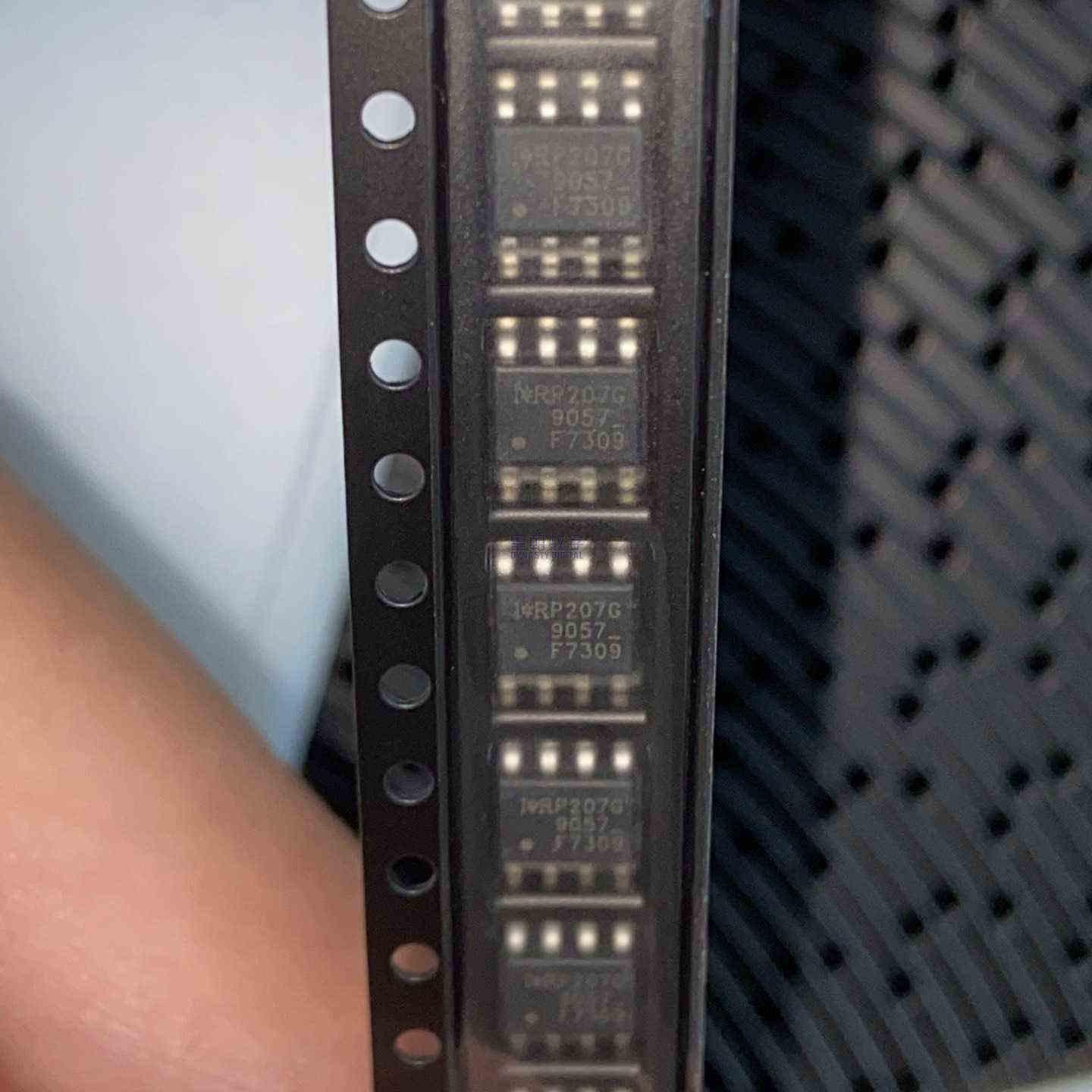

Image for reference only

Manufacturer Part：

IRF7309TRPBF

Package：

SOIC-8

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF7309TRPBF is a dual N-channel and P-channel complementary MOSFET pair from Infineon Technologies in a SOIC-8 package. Combining one N-channel and one P-channel MOSFET, this device is ideal for half-bridge configurations, high-side/low-side switching, and push-pull applications.

Key Specifications

r>

Parameter N-Channel P-Channel
Drain-Source Voltage (VDSS) 30V -30V
Continuous Drain Current (ID) 5.3A -4.9A
On-Resistance (RDS(on)) 28mΩ @ 10V 52mΩ @ -10V
On-Resistance @ 4.5V 36mΩ 70mΩ
Gate Threshold Voltage 1V to 2.5V -1V to -2.5V
Gate Charge (Qg) 10nC 8nC
Power Dissipation 2W 2W
Operating Temperature -55°C to +150°C
Package SOIC-8

Features

  • Complementary N+P channel MOSFET pair
  • Logic level gate drive compatible
  • Low on-resistance for both channels
  • Fast switching speed
  • Compact SOIC-8 surface mount package
  • RoHS compliant and lead-free
  • Ideal for half-bridge configurations

Applications

  • Half-bridge converters
  • High-side/low-side switching
  • DC-DC converters
  • Push-pull amplifiers
  • Motor control (H-bridge)
  • Power management circuits

The IRF7309TRPBF is a complementary MOSFET pair containing one N-channel and one P-channel enhancement-mode MOSFET in a SOIC-8 package. This dual configuration is ideal for half-bridge and push-pull circuits, reducing component count and board space. Both devices feature logic-level gate thresholds and low on-resistance for efficient operation at low drive voltages.

The IRF7309TRPBF combines an N-channel and a P-channel MOSFET in a single package. The N-channel device turns on when VGS exceeds the positive threshold (1-2.5V), allowing current to flow from drain to source. The P-channel device turns on when VGS drops below the negative threshold (-1V to -2.5V), allowing current to flow from source to drain. In a half-bridge configuration, the N-channel MOSFET serves as the low-side switch and the P-channel MOSFET serves as the high-side switch, providing a complete power stage with complementary drive signals.

Pin Number Symbol Description
1 P-Drain Drain – P-channel MOSFET
2 P-Source Source – P-channel MOSFET
3 P-Gate Gate – P-channel MOSFET
4 N-Source Source – N-channel MOSFET
5 N-Gate Gate – N-channel MOSFET
6 N-Drain Drain – N-channel MOSFET
7 N-Drain Drain – N-channel MOSFET
8 P-Drain Drain – P-channel MOSFET
  • Half-bridge converters
  • High-side/low-side switching
  • DC-DC converters
  • Push-pull amplifiers
  • Motor control (H-bridge)
  • Power management circuits
Model Manufacturer Voltage Package
IRF7341TRPBF Infineon 20V SOIC-8
FDS8938 ON Semiconductor 30V SOIC-8
SI4542 Vishay 30V SOIC-8
