IRF740PBF

400V N-channel power MOSFET, 10A, 550mΩ RDS(on), TO-220AB package

3210

Effective Inventory
Go to Inquiry

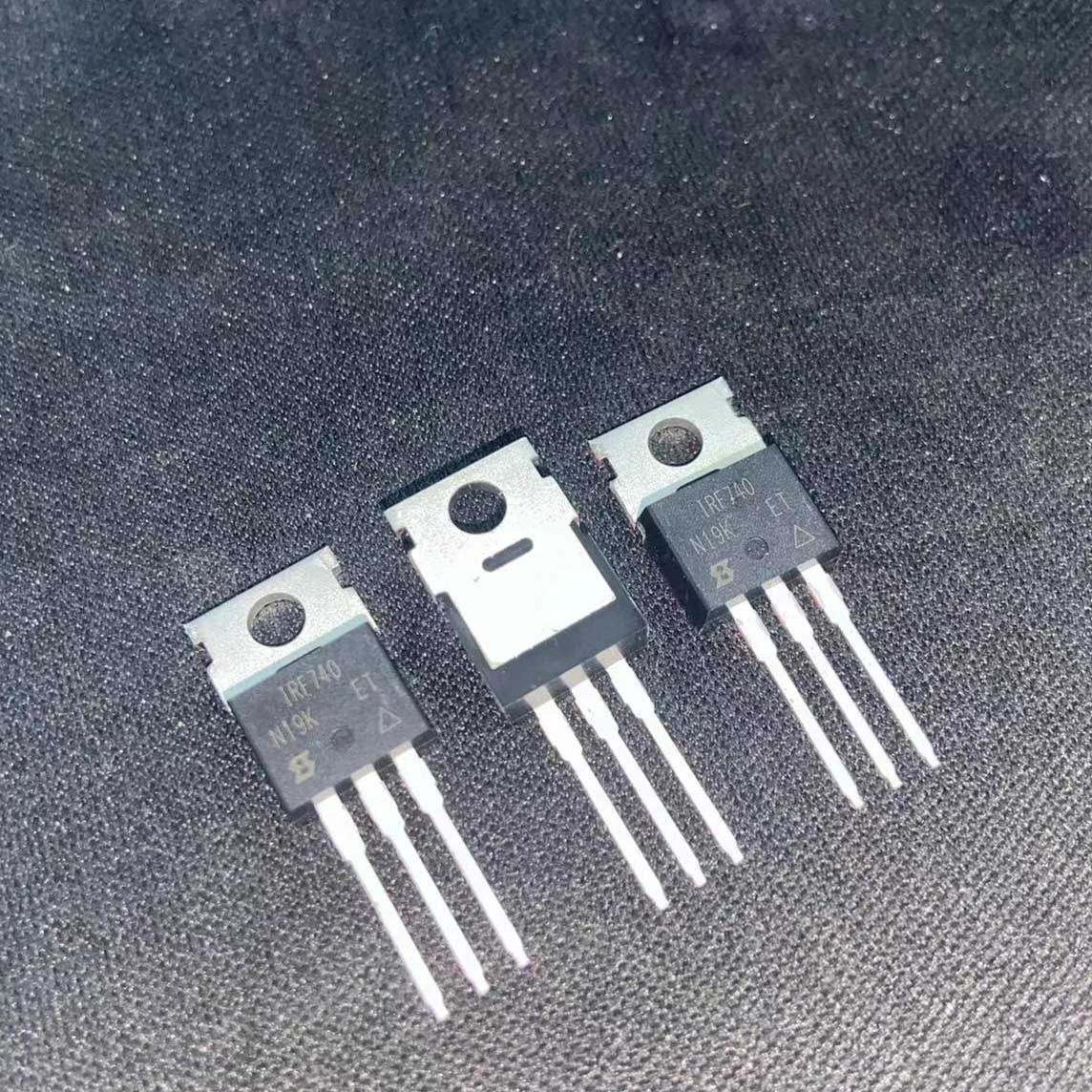

Image for reference only

Manufacturer Part：

IRF740PBF

Package：

TO-220AB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF740PBF is an N-channel power MOSFET with 400V voltage rating and 10A continuous drain current capability. This through-hole TO-220AB device is designed for high-voltage switching applications such as switch-mode power supplies, power factor correction, and DC-DC converters.

Key Specifications

Parameter Value
Drain-Source Voltage (VDSS) 400V
Continuous Drain Current (ID) 10A @ Tc=25°C
On-Resistance (RDS(on)) 550mΩ max @ VGS=10V
Gate Threshold Voltage (VGS(th)) 2V to 4V
Total Gate Charge (Qg) 63nC (max) @ 10V
Power Dissipation (PD) 125W @ Tc=25°C
Operating Junction Temperature -55°C to +150°C
Package TO-220AB

Features

  • High voltage rating (400V)
  • Low gate charge for fast switching
  • Low reverse transfer capacitance
  • Fast switching speed
  • Fully characterized avalanche energy
  • Dynamic dv/dt rating
  • Easy to parallel for higher current
  • Standard TO-220AB package
  • RoHS compliant

Applications

  • High efficiency switching DC-DC converters
  • Switch mode power supplies
  • Power factor correction (PFC)
  • AC-DC converters
  • Motor control
  • Lighting ballasts

The IRF740PBF is a 400V N-channel enhancement mode power MOSFET designed for high-voltage switching applications. It features low gate charge and low crss (reverse transfer capacitance), enabling fast switching performance. The TO-220AB through-hole package provides excellent thermal dissipation for high-voltage, medium-current power conversion designs.

The IRF740PBF operates as an N-channel enhancement-mode MOSFET. When a positive gate-source voltage exceeding the threshold (2-4V) is applied, an n-type inversion channel forms in the p-type body region, allowing current to flow from drain to source. In the off-state, the device blocks up to 400V between drain and source with VGS = 0. In switching applications, the device transitions between the cut-off and ohmic regions. The relatively high RDS(on) of 550mΩ is typical for high-voltage MOSFETs due to the trade-off between breakdown voltage and on-resistance.

Pin Number Symbol Description
1 Gate (G) Gate control terminal
2 Drain (D) Drain terminal
3 Source (S) Source terminal
Tab Drain Tab connected to drain
  • High efficiency switching DC-DC converters
  • Switch mode power supplies
  • Power factor correction (PFC)
  • AC-DC converters
  • Motor control
  • Lighting ballasts
Model Manufacturer Voltage Package
IRF840PBF Vishay/Infineon 500V TO-220AB
FQPF10N40 ON Semiconductor 400V TO-220F
STP10NK40Z STMicroelectronics 400V TO-220
