IRF9540NSTRLPBF

100V P-channel power MOSFET, -23A, 117mΩ RDS(on), D2PAK (TO-263) package

4120

Effective Inventory
Go to Inquiry

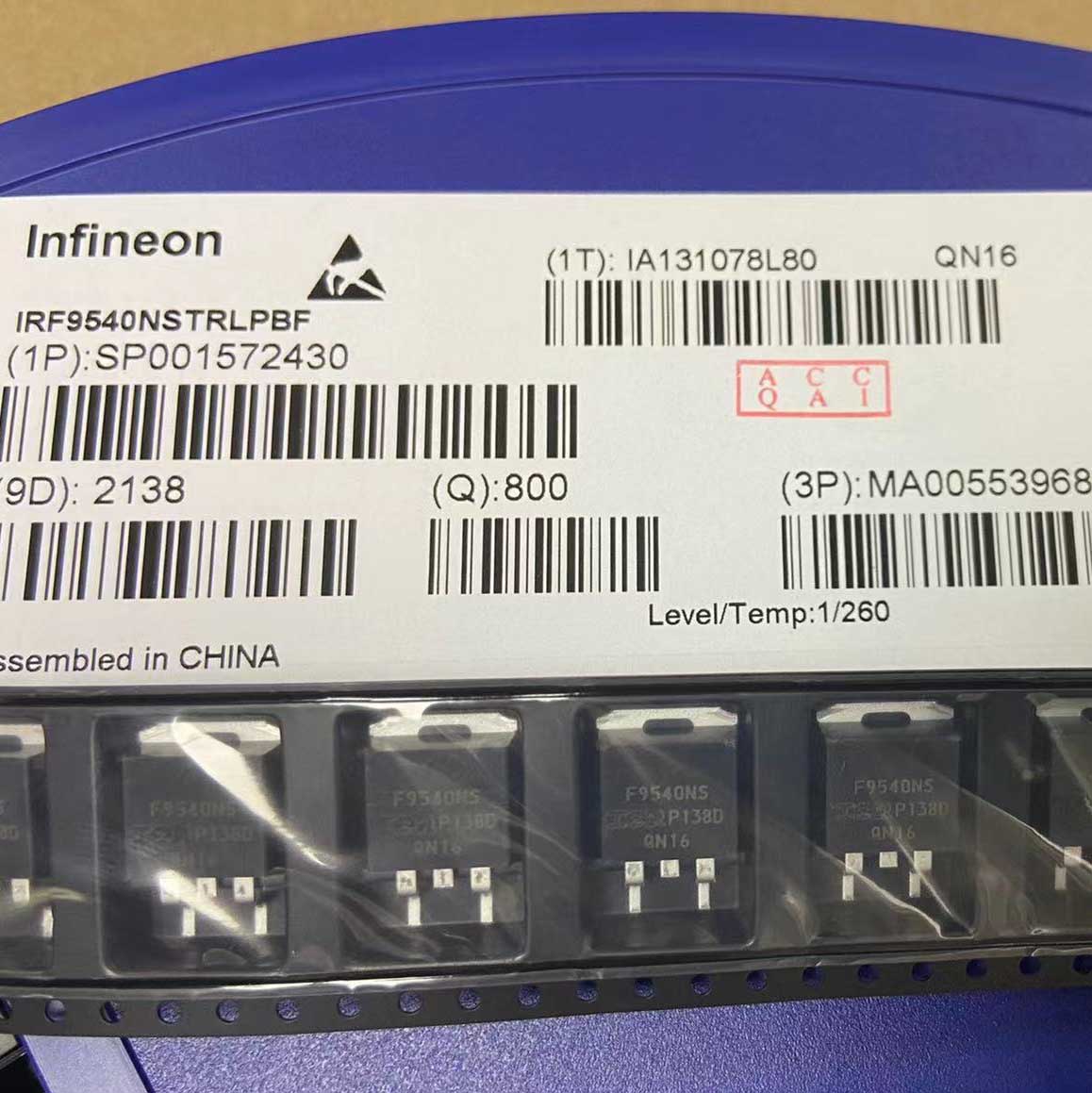

Image for reference only

Manufacturer Part：

IRF9540NSTRLPBF

Package：

D2PAK (TO-263)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF9540NSTRLPBF is a P-channel HEXFET power MOSFET from Infineon Technologies with 100V voltage rating and 23A continuous drain current capability. This D2PAK (TO-263) surface-mount device features fast switching speed and improved repetitive avalanche rating for high-side switching applications.

Key Specifications

Parameter Value
Drain-Source Voltage (VDSS) -100V
Continuous Drain Current (ID) -23A @ Tc=25°C
On-Resistance (RDS(on)) 117mΩ max @ VGS=-10V
Gate Threshold Voltage (VGS(th)) -2V to -4V
Total Gate Charge (Qg) 97nC (typ) @ -10V
Forward Transconductance (gfs) 5.3S (typ)
Power Dissipation (PD) 110W @ Tc=25°C
Operating Junction Temperature -55°C to +150°C
Package D2PAK (TO-263)

Features

  • P-channel enhancement mode MOSFET
  • Fast switching speed
  • Improved repetitive avalanche rating
  • Ultra-low ON-resistance
  • Dynamic dv/dt rating
  • Fully avalanche rated
  • Advanced process technology
  • D2PAK surface mount package
  • RoHS compliant

Applications

  • High-side load switching
  • Automotive electronics
  • Power management systems
  • Battery charging circuits
  • Motor control (H-bridge configurations)
  • DC-DC converters

The IRF9540NSTRLPBF is a P-channel HEXFET power MOSFET rated at -100V and -23A in a D2PAK surface mount package. It features fast switching speed, ultra-low on-resistance, and improved repetitive avalanche rating. This device is designed for high-side load switching applications in automotive, power management, and industrial systems where a robust P-channel solution is required.

The IRF9540NSTRLPBF is a P-channel enhancement-mode MOSFET. It turns on when the gate-source voltage is negative (VGS < VGS(th), where VGS(th) is -2V to -4V), creating a p-type inversion channel in the n-type body region that allows hole current to flow from source to drain. In high-side switching applications, the source terminal connects to the positive supply rail. When the gate is pulled below the source voltage (creating a negative VGS), the MOSFET conducts, connecting the load to the supply. When VGS = 0, the device is off, blocking voltage across the drain-source terminals.

Pin Number Symbol Description
1 Gate (G) Gate control terminal
2 Drain (D) Drain terminal
3 Source (S) Source terminal
Tab Drain Tab connected to drain for thermal dissipation
  • High-side load switching
  • Automotive electronics
  • Power management systems
  • Battery charging circuits
  • Motor control (H-bridge configurations)
  • DC-DC converters
Model Manufacturer Voltage Package
IRF9540NPBF Infineon 100V TO-220AB
IRF5210STRLPBF Infineon 100V D2PAK
SUP90P10-09 Vishay 100V D2PAK
