IRFB4020PBF

200V N-Channel HEXFET Power MOSFET, 31A, 68 mΩ RDS(on), TO-220AB

14149

Effective Inventory
Go to Inquiry

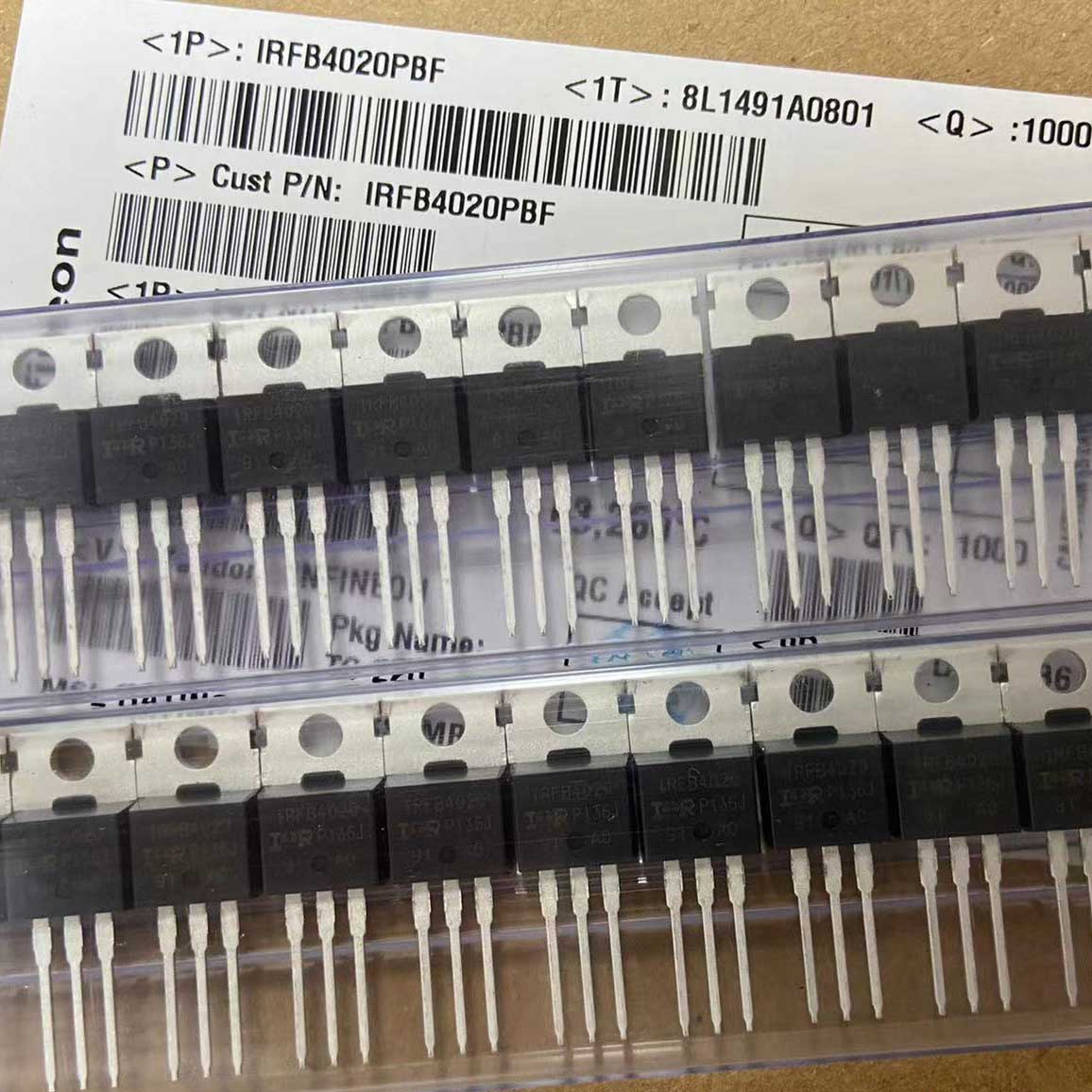

Image for reference only

Manufacturer Part：

IRFB4020PBF

Package：

TO-220AB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFB4020PBF is a 200V N-channel HEXFET power MOSFET from Infineon Technologies, featuring a continuous drain current of 31A and a maximum on-resistance of 68 mΩ at VGS=10V. Packaged in a TO-220AB through-hole enclosure, this device is optimized for high voltage switching applications including SMPS and power factor correction. The HEXFET technology provides reliable performance with full avalanche rating and rugged design, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 200 V
Continuous Drain Current (ID @ 25°C) 31A
Continuous Drain Current (ID @ 100°C) 22A
Pulsed Drain Current (IDM) 124A
On-Resistance (RDS(on) max @ VGS=10V) 68 mΩ
Gate Threshold Voltage (VGS(th)) 2.0 – 4.0 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg typ) 85 nC
Input Capacitance (Ciss typ) 2700 pF
Power Dissipation (PD @ TC=25°C) 240 W
Operating Junction Temperature -55 to +175 °C
Single Pulse Avalanche Energy (EAS) 280 mJ

Features

  • 200V drain-source voltage rating
  • 31A continuous drain current capability
  • 68 mΩ maximum on-resistance at VGS=10V
  • Advanced HEXFET technology
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-220AB through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • Power Factor Correction (PFC)
  • Solar inverter systems
  • Industrial power systems
  • Load switching applications
  • High voltage load switching

The IRFB4020PBF is a 200V N-channel enhancement mode power MOSFET from Infineon Technologies’ HEXFET power MOSFET family. It provides a continuous drain current rating of 31A at 25°C with a maximum on-resistance of 68mΩ at VGS=10V, offering an optimal balance between voltage blocking capability and conduction losses. Housed in a TO-220AB through-hole package, this device delivers reliable thermal performance for medium voltage, medium current power switching applications. The IRFB4020PBF features advanced process technology with dynamic dv/dt rating, a 175°C operating junction temperature, fast switching characteristics, and full avalanche rating for enhanced system reliability. The device is lead-free and RoHS compliant, suitable for a wide range of applications including switch mode power supplies, DC-DC converters, power factor correction circuits, motor control, UPS systems, and industrial power electronics.

The IRFB4020PBF functions as an N-channel enhancement mode MOSFET where a positive voltage applied to the gate terminal (relative to source) creates an inversion layer that allows current flow between drain and source. When VGS exceeds the gate threshold voltage (2-4V), the channel begins to conduct, and at VGS=10V the device is fully enhanced with maximum channel width, achieving its rated on-resistance of 68mΩ maximum. The HEXFET cell architecture provides optimal channel density, enabling the 200V breakdown voltage while maintaining relatively low on-resistance. In the off-state (VGS=0V), the device blocks up to 200V across the drain-source path. The integral body diode conducts when source voltage exceeds drain voltage, providing freewheeling current path essential for inductive load applications. The device’s fully avalanche-rated construction ensures that transient over-voltage events are safely absorbed, maintaining device integrity in real-world operating conditions with inductive or capacitive loads.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • Power Factor Correction (PFC)
  • Solar inverter systems
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • High voltage load switching
Model VDS (V) ID (A) RDS(on) Max Package
IRFB4019PBF 150 47 34 mΩ TO-220AB
IRFB4229PBF 250 46 46 mΩ TO-220
IRFP260NPBF 200 50 40 mΩ TO-247AC
IRFP240PBF 200 20 180 mΩ TO-247AC
