IRFB4110PBF

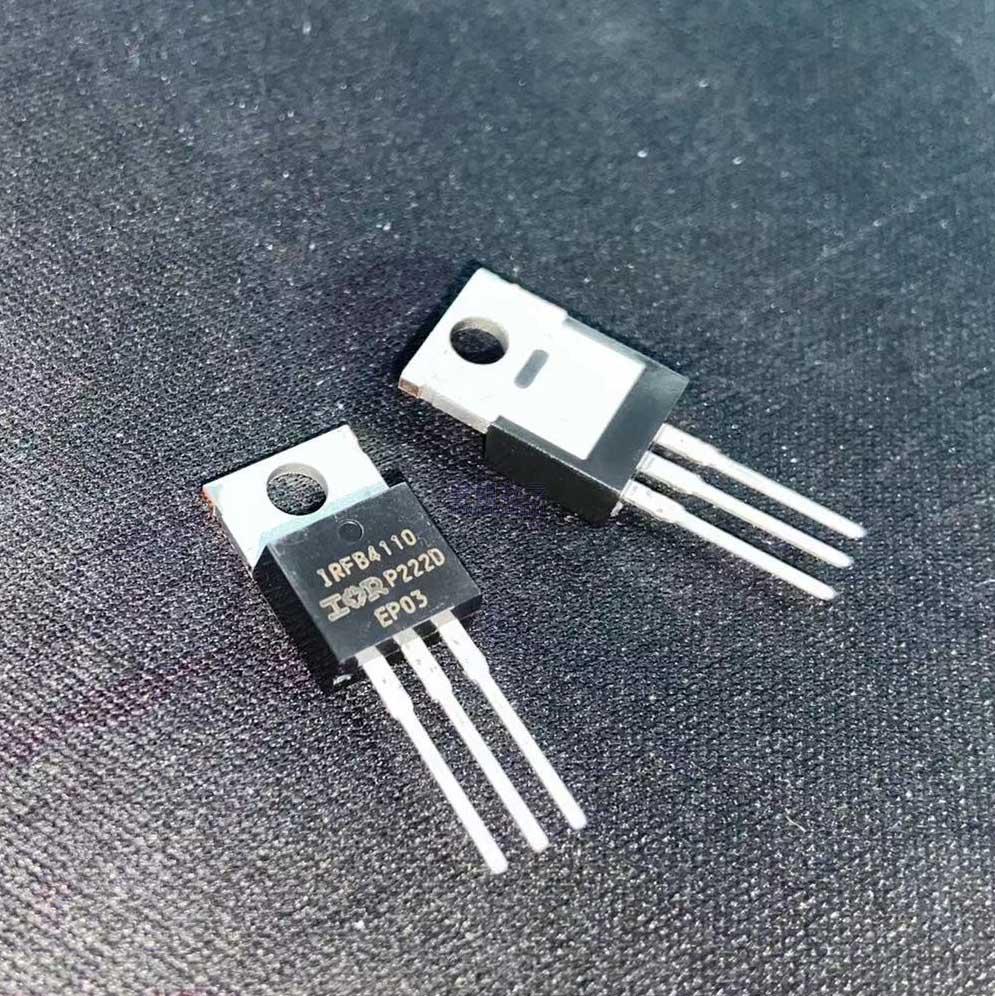

100V N-Channel HEXFET Power MOSFET, 120A, 4.5 mΩ RDS(on), TO-220AB

6506

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

IRFB4110PBF

Package：

TO-220AB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFB4110PBF is a 100V N-channel HEXFET power MOSFET from Infineon Technologies, featuring a continuous drain current of 120A and a maximum on-resistance of 4.5 mΩ at VGS=10V. Packaged in a TO-220AB through-hole enclosure, this device is optimized for high efficiency synchronous rectification and high speed power switching. The HEXFET technology provides ultra-low on-resistance with excellent gate charge characteristics, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 100 V
Continuous Drain Current (ID @ 25°C) 120A
Continuous Drain Current (ID @ 100°C) 85A
Pulsed Drain Current (IDM) 480A
On-Resistance (RDS(on) max @ VGS=10V) 4.5 mΩ
Gate Threshold Voltage (VGS(th)) 2.0 – 4.0 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg typ) 150 nC
Input Capacitance (Ciss typ) 8200 pF
Power Dissipation (PD @ TC=25°C) 330 W
Operating Junction Temperature -55 to +175 °C
Single Pulse Avalanche Energy (EAS) 310 mJ

Features

  • 100V drain-source voltage rating
  • 120A continuous drain current capability
  • 4.5 mΩ maximum on-resistance at VGS=10V
  • Advanced HEXFET technology
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-220AB through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • High efficiency synchronous rectification
  • Battery management systems
  • Industrial power systems
  • Load switching applications
  • Hard-switched high frequency circuits

The IRFB4110PBF is a 100V N-channel enhancement mode power MOSFET from Infineon Technologies featuring advanced HEXFET technology. With a continuous drain current of 120A and an ultra-low maximum on-resistance of 4.5mΩ at VGS=10V, this device delivers exceptional conduction performance in a compact TO-220AB package. The IRFB4110PBF is specifically optimized for high efficiency synchronous rectification and high speed power switching applications, featuring improved gate, avalanche, and dynamic dv/dt ruggedness, fully characterized capacitance and avalanche SOA, and enhanced body diode dV/dt and dI/dt capability. With a power dissipation rating of 330W and an operating junction temperature up to 175°C, this MOSFET is ideal for demanding applications including switch mode power supplies, DC-DC converters, UPS systems, battery management, and motor control where high efficiency and reliability are paramount.

The IRFB4110PBF operates as an N-channel enhancement mode MOSFET where a positive gate-source voltage above the threshold (2-4V) induces a conductive channel in the P-type body region, allowing electron flow from source to drain. At VGS=10V, the device is fully enhanced, providing its minimum on-resistance of 4.5mΩ maximum, which is critical for minimizing conduction losses at high current levels. The HEXFET technology with optimized cell geometry achieves this low resistance while maintaining the 100V blocking voltage through carefully designed drift region doping and termination structures. With VGS=0V, the MOSFET blocks up to 100V across the drain-source junction with very low leakage current. The intrinsic body diode provides reverse conduction capability, making the device suitable for synchronous rectifier applications where it must carry inductor current during the off-cycle. The device is fully avalanche rated, meaning it can safely dissipate energy during unclamped inductive switching events, providing enhanced reliability in real-world power supply and motor drive applications.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • High efficiency synchronous rectification
  • Battery management systems
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • Hard-switched high frequency circuits
Model VDS (V) ID (A) RDS(on) Max Package
IRFB3206PBF 60 120 3 mΩ TO-220AB
IRFB7434PBF 40 195 2.2 mΩ TO-220
IRFP4310ZPBF 100 134 6 mΩ TO-247
IRFP150MPBF 100 42 36 mΩ TO-247AC
