IRFB4229PBF

250V N-Channel StrongIRFET Power MOSFET, 46A, 46 mΩ RDS(on), TO-220

5657

Effective Inventory
Go to Inquiry

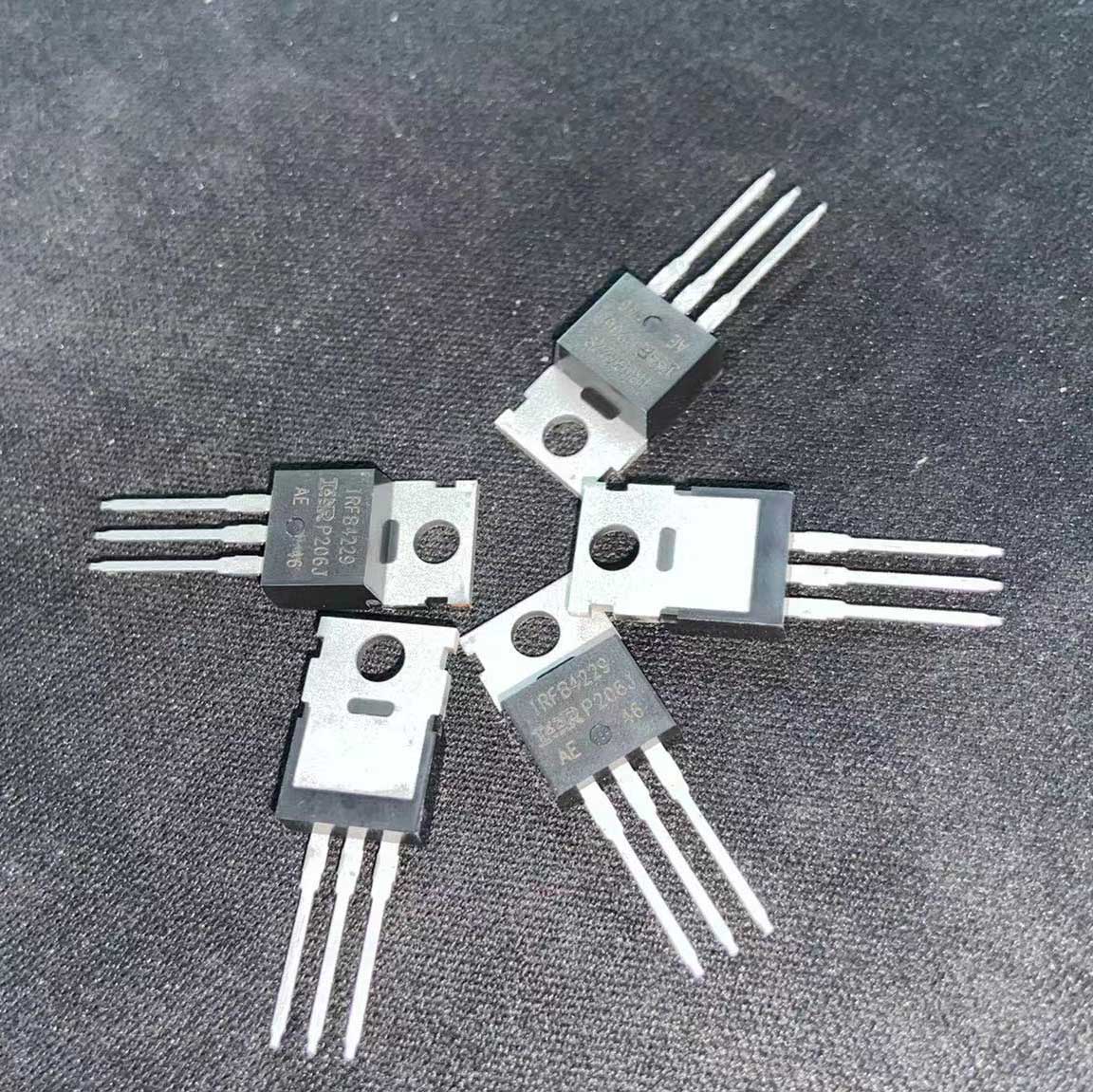

Image for reference only

Manufacturer Part：

IRFB4229PBF

Package：

TO-220

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFB4229PBF is a 250V N-channel StrongIRFET power MOSFET from Infineon Technologies, featuring a continuous drain current of 46A and a maximum on-resistance of 46 mΩ at VGS=10V. Packaged in a TO-220 through-hole enclosure, this device is optimized for DC motors, battery management systems, inverters, and DC-DC converters. The StrongIRFET technology provides high current capability with low RDS(on) for rugged applications, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 250 V
Continuous Drain Current (ID @ 25°C) 46A
Continuous Drain Current (ID @ 100°C) 31A
Pulsed Drain Current (IDM) 180A
On-Resistance (RDS(on) max @ VGS=10V) 46 mΩ
Gate Threshold Voltage (VGS(th)) 3.0 – 5.0 V
Gate-Source Voltage (VGS) ±30 V
Total Gate Charge (Qg typ) 72 nC
Input Capacitance (Ciss typ) 4560 pF
Power Dissipation (PD @ TC=25°C) 330 W
Operating Junction Temperature -40 to +175 °C
Single Pulse Avalanche Energy (EAS) 300 mJ

Features

  • 250V drain-source voltage rating
  • 46A continuous drain current capability
  • 46 mΩ maximum on-resistance at VGS=10V
  • Advanced StrongIRFET technology
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-220 through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • DC motor control and drives
  • Automotive LED lighting systems
  • Industrial power systems
  • Load switching applications
  • Battery management systems

The IRFB4229PBF is a 250V N-channel enhancement mode power MOSFET from Infineon Technologies’ StrongIRFET / IR MOSFET product family, offering a continuous drain current of 46A with a maximum on-resistance of 46mΩ at VGS=10V. Packaged in a TO-220 through-hole enclosure, this device is specifically optimized for low frequency applications requiring both high performance and ruggedness. The IR MOSFET family is designed to deliver low RDS(on) combined with high current capability, addressing a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters. The IRFB4229PBF features an industry standard through-hole power package, high current rating, JEDEC-standard product qualification, silicon optimized for applications switching below 100kHz, and a softer body diode compared to the previous silicon generation. With a power dissipation of 330W and operating junction temperature up to 175°C, this device provides reliable performance for demanding industrial and automotive power applications.

The IRFB4229PBF operates as an N-channel enhancement mode MOSFET where a positive gate-source voltage above the threshold level (3-5V, typically 4V) creates an N-type inversion layer in the P-type body region, allowing electron current flow from source to drain. When VGS=10V is applied, the device is fully enhanced, providing its minimum on-resistance of 46mΩ maximum for efficient conduction at rated current. The IR MOSFET technology utilizes planar cell structure optimized for wide safe operating area (SOA) and low frequency high-current performance. With VGS=0V, the MOSFET blocks up to 250V across the drain-source junction with very low leakage current. The intrinsic body diode provides reverse conduction capability when source voltage exceeds drain voltage, enabling freewheeling operation in inductive load circuits. The softer body diode characteristic of this generation reduces reverse recovery losses and improves EMI performance. The device is fully avalanche rated with 300mJ single pulse avalanche energy, ensuring reliable operation under transient over-voltage conditions commonly encountered in motor drive and power supply applications.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • DC motor control and drives
  • Automotive LED lighting systems
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • Battery management systems
Model VDS (V) ID (A) RDS(on) Max Package
IRFB4127PBF 200 76 22 mΩ TO-220AB
IRFB4020PBF 200 31 68 mΩ TO-220AB
IRFP260NPBF 200 50 40 mΩ TO-247AC
IRFP450A 500 14 400 mΩ TO-247AC
