IRFB52N15DPBF

150V N-Channel IR MOSFET Power MOSFET, 51A, 32 mΩ RDS(on), TO-220

4286

Effective Inventory
Go to Inquiry

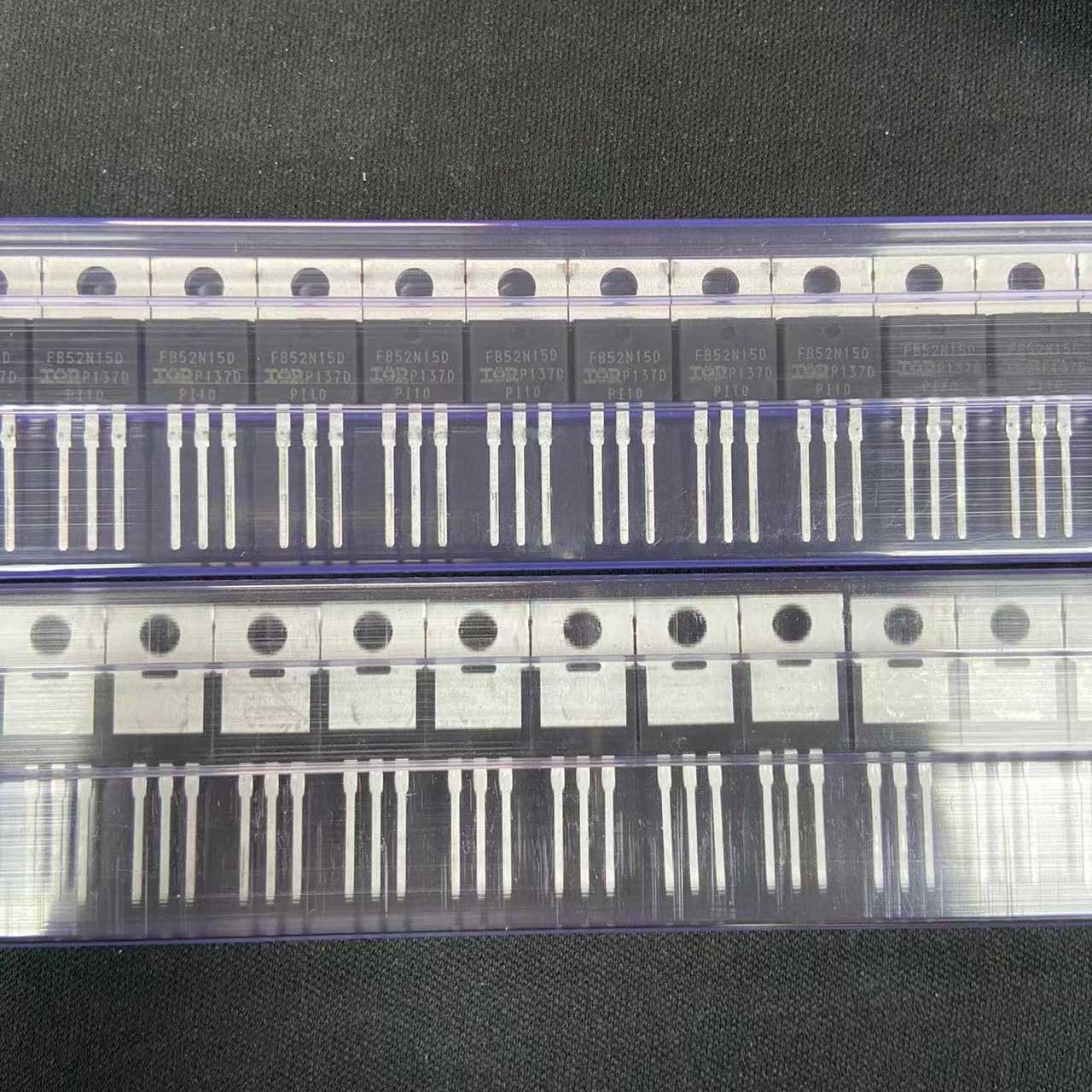

Image for reference only

Manufacturer Part：

IRFB52N15DPBF

Package：

TO-220

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFB52N15DPBF is a 150V N-channel IR MOSFET power MOSFET from Infineon Technologies, featuring a continuous drain current of 51A and a maximum on-resistance of 32 mΩ at VGS=10V. Packaged in a TO-220 through-hole enclosure, this device is optimized for DC motors, inverters, SMPS, lighting, and battery-powered applications. The IR MOSFET technology provides planar cell structure with wide SOA for rugged applications, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 150 V
Continuous Drain Current (ID @ 25°C) 51A
Continuous Drain Current (ID @ 100°C) 36A
Pulsed Drain Current (IDM) 200A
On-Resistance (RDS(on) max @ VGS=10V) 32 mΩ
Gate Threshold Voltage (VGS(th)) 3.0 – 5.0 V
Gate-Source Voltage (VGS) ±30 V
Total Gate Charge (Qg typ) 60 nC
Input Capacitance (Ciss typ) 3200 pF
Power Dissipation (PD @ TC=25°C) 320 W
Operating Junction Temperature -55 to +175 °C
Single Pulse Avalanche Energy (EAS) 310 mJ

Features

  • 150V drain-source voltage rating
  • 51A continuous drain current capability
  • 32 mΩ maximum on-resistance at VGS=10V
  • Advanced IR MOSFET technology
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-220 through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • DC motor control and drives
  • Lighting systems and drivers
  • Industrial power systems
  • Load switching applications
  • Battery powered applications

The IRFB52N15DPBF is a 150V single N-channel power MOSFET from Infineon Technologies, featuring a continuous drain current of 51A and a maximum on-resistance of 32mΩ at VGS=10V. Packaged in a TO-220 through-hole enclosure, this IR MOSFET series device utilizes proven silicon processes offering designers a wide portfolio of devices to support various applications such as DC motors, inverters, SMPS, lighting, load switches, as well as battery powered applications. The IRFB52N15DPBF features a planar cell structure for wide SOA, optimized for broadest availability from distribution partners, with product qualification according to JEDEC standard. The industry standard through-hole power package with high current rating provides standard pinout allowing for drop-in replacement and high current carrying capability. With a power dissipation of 320W and operating junction temperature range from -55°C to +175°C, this device delivers reliable performance across a wide range of environmental conditions for industrial and consumer power electronics applications.

The IRFB52N15DPBF is an N-channel enhancement mode MOSFET where a positive voltage applied between gate and source, exceeding the threshold voltage (3-5V, typically 4V), creates an N-type conductive channel connecting the drain and source terminals. When VGS=10V is applied, the device reaches full enhancement with minimum on-resistance (32mΩ maximum), enabling efficient power transfer with minimal conduction losses. The planar cell structure provides a wide safe operating area (SOA), making the device suitable for linear mode and soft switching applications in addition to hard switching. With VGS=0V, the MOSFET is in the off-state, blocking up to 150V across the drain-source junction with extremely low leakage current. The integrated body diode conducts when the source terminal is at a higher potential than the drain, providing a freewheeling path for inductive load currents. The device’s robust design and avalanche capability ensure reliable operation under transient voltage conditions commonly found in motor control and power supply circuits.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • DC motor control and drives
  • Lighting systems and drivers
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • Battery powered applications
Model VDS (V) ID (A) RDS(on) Max Package
IRFB23N15DPBF 150 23 90 mΩ TO-220AB
IRFB4019PBF 150 47 34 mΩ TO-220AB
IRFB5615PBF 150 35 39 mΩ TO-220AB
IRFP4568PBF 150 171 5.9 mΩ TO-247AC
