IRFB5615PBF

150V N-Channel Digital Audio MOSFET Power MOSFET, 35A, 39 mΩ RDS(on), TO-220AB

14066

Effective Inventory
Go to Inquiry

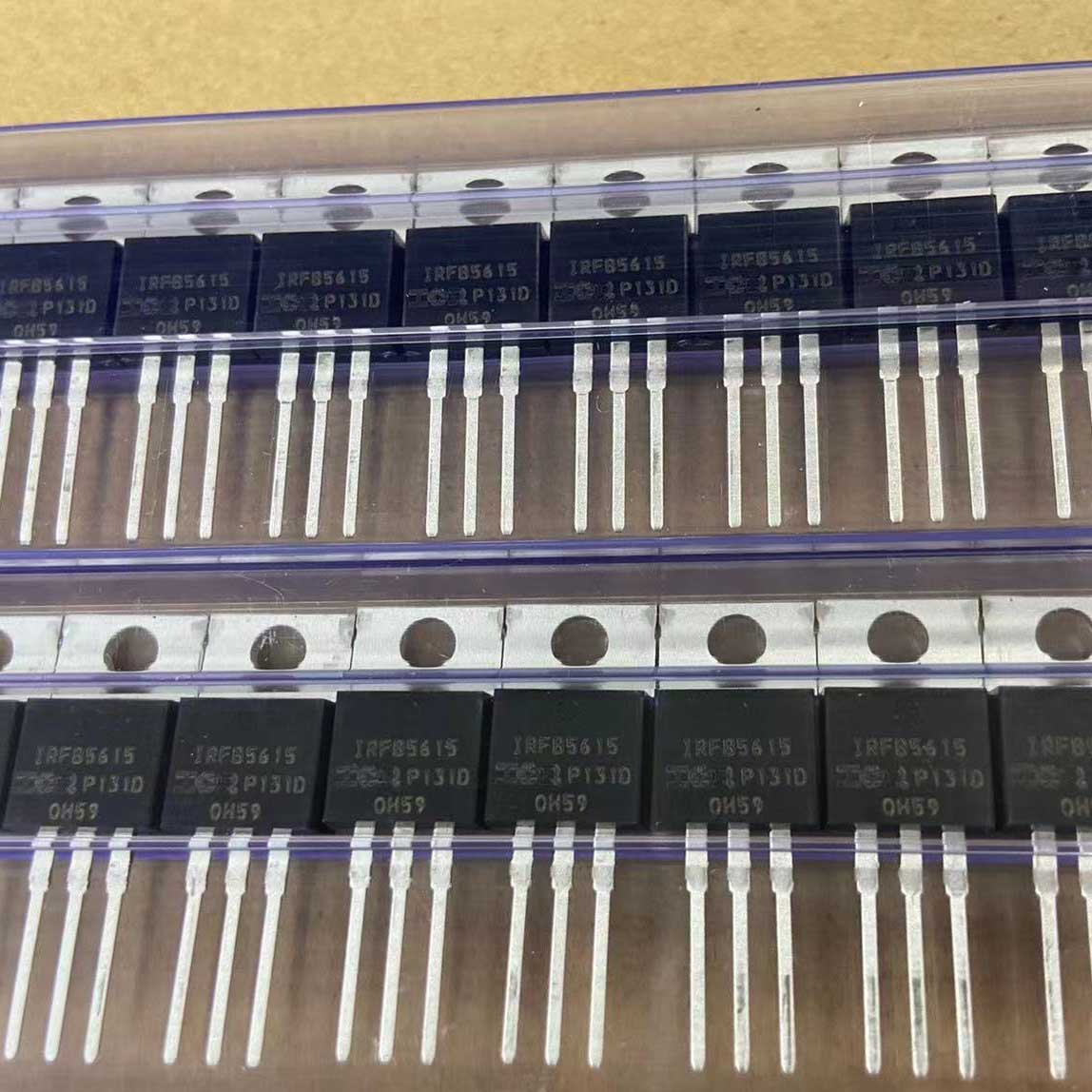

Image for reference only

Manufacturer Part：

IRFB5615PBF

Package：

TO-220AB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFB5615PBF is a 150V N-channel Digital Audio MOSFET power MOSFET from Infineon Technologies, featuring a continuous drain current of 35A and a maximum on-resistance of 39 mΩ at VGS=10V. Packaged in a TO-220AB through-hole enclosure, this device is optimized for Class D audio amplifiers and high fidelity audio power stages. The Digital Audio HEXFET technology provides low QG and QSW for improved THD performance in audio applications, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 150 V
Continuous Drain Current (ID @ 25°C) 35A
Continuous Drain Current (ID @ 100°C) 25A
Pulsed Drain Current (IDM) 140A
On-Resistance (RDS(on) max @ VGS=10V) 39 mΩ
Gate Threshold Voltage (VGS(th)) 3.0 – 5.0 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg typ) 26 nC
Input Capacitance (Ciss typ) 1750 pF
Power Dissipation (PD @ TC=25°C) 144 W
Operating Junction Temperature -55 to +175 °C
Single Pulse Avalanche Energy (EAS) 115 mJ

Features

  • 150V drain-source voltage rating
  • 35A continuous drain current capability
  • 39 mΩ maximum on-resistance at VGS=10V
  • Advanced Digital Audio HEXFET technology
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-220AB through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • Class D audio amplifiers
  • Audio power systems
  • Industrial power systems
  • Load switching applications
  • High fidelity sound equipment

The IRFB5615PBF is a 150V N-channel enhancement mode power MOSFET from Infineon Technologies’ Digital Audio HEXFET family, specifically optimized for Class D audio amplifier applications. It provides a continuous drain current of 35A at 25°C with a maximum on-resistance of 39mΩ at VGS=10V, and features exceptionally low total gate charge (26nC typical) and switching charge for improved Total Harmonic Distortion (THD) performance. Packaged in a TO-220AB through-hole enclosure, this device delivers excellent audio performance with low Qrr for improved THD and reduced EMI. The IRFB5615PBF is capable of delivering 300W per channel into a 4 ohm load in half-bridge configuration, making it ideal for high power audio amplifier designs. With a power dissipation of 144W and operating junction temperature up to 175°C, this MOSFET provides reliable performance for demanding audio and general power switching applications.

The IRFB5615PBF is an N-channel enhancement mode MOSFET that operates by applying a positive gate-source voltage above the threshold (3-5V) to create a conductive N-type channel between drain and source. When VGS=10V is applied, the device is fully enhanced with minimum on-resistance (39mΩ maximum) for efficient power delivery to audio loads. The Digital Audio HEXFET technology is specifically optimized for low gate charge (Qg) and low switching charge (Qsw), which significantly reduces switching losses and improves Total Harmonic Distortion (THD) performance in Class D amplifier applications. The low reverse recovery charge (Qrr) of the body diode further contributes to improved audio quality and reduced electromagnetic interference. With VGS=0V, the MOSFET blocks up to 150V across drain-source. In audio amplifier applications, pairs of these devices operate in half-bridge or full-bridge configurations to deliver high fidelity audio output to speaker loads.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • Class D audio amplifiers
  • Audio power systems
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • High fidelity sound equipment
Model VDS (V) ID (A) RDS(on) Max Package
IRFB52N15DPBF 150 51 32 mΩ TO-220
IRFB4019PBF 150 47 34 mΩ TO-220AB
IRFI4019H-117P 150 17 150 mΩ TO-220FP
IRFP260NPBF 200 50 40 mΩ TO-247AC
