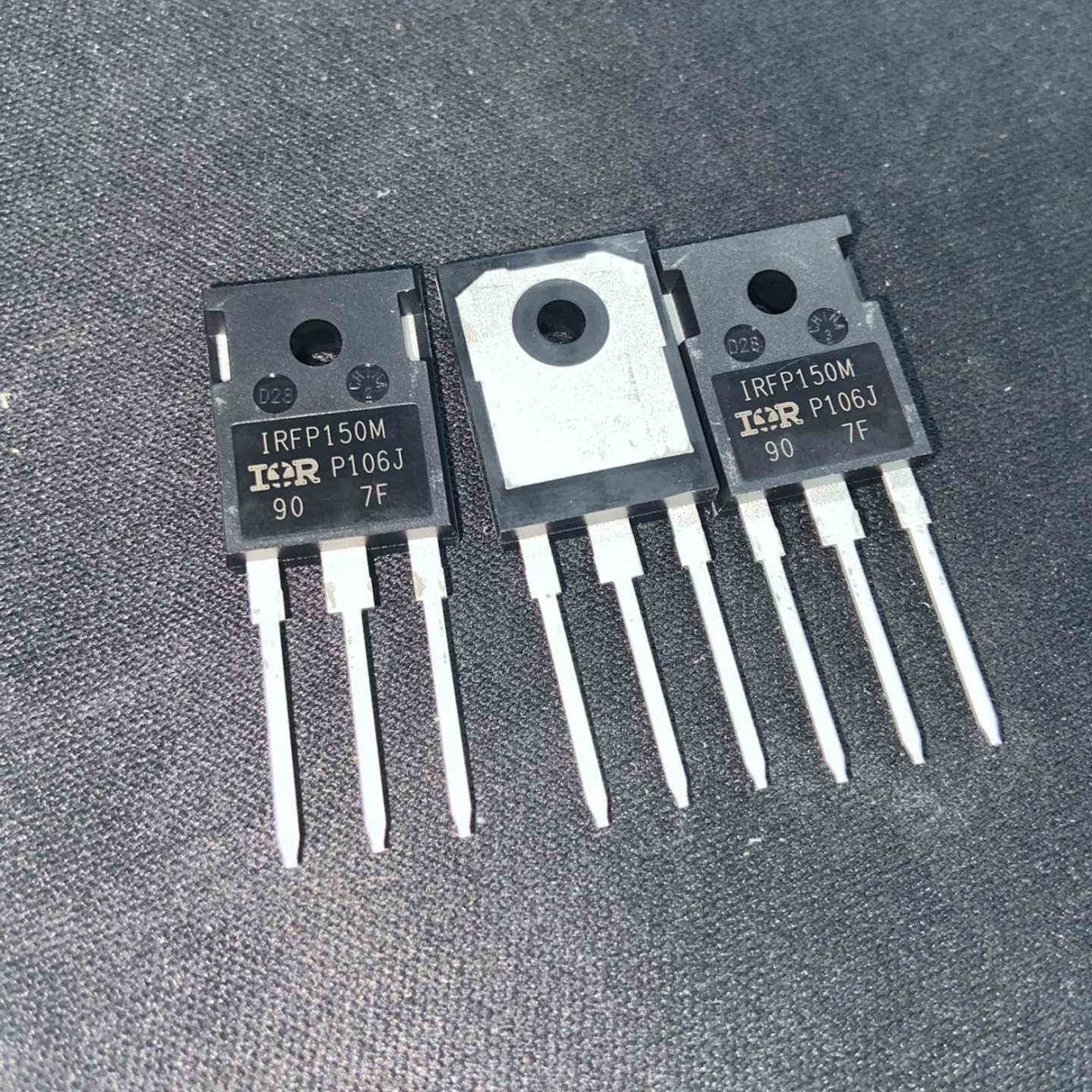

IRFP150MPBF

100V N-Channel IR MOSFET M-Series Power MOSFET, 42A, 36 mΩ RDS(on), TO-247AC

10935

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

IRFP150MPBF

Package：

TO-247AC

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFP150MPBF is a 100V N-channel IR MOSFET M-Series power MOSFET from Infineon Technologies, featuring a continuous drain current of 42A and a maximum on-resistance of 36 mΩ at VGS=10V. Packaged in a TO-247AC through-hole enclosure, this device is optimized for DC motors, inverters, SMPS, lighting, and battery-powered applications. The IR MOSFET technology provides proven planar technology with wide SOA for rugged applications, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 100 V
Continuous Drain Current (ID @ 25°C) 42A
Continuous Drain Current (ID @ 100°C) 30A
Pulsed Drain Current (IDM) 140A
On-Resistance (RDS(on) max @ VGS=10V) 36 mΩ
Gate Threshold Voltage (VGS(th)) 2.0 – 4.0 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg typ) 73.3 nC
Input Capacitance (Ciss typ) 1900 pF
Power Dissipation (PD @ TC=25°C) 160 W
Operating Junction Temperature -55 to +175 °C
Single Pulse Avalanche Energy (EAS) 420 mJ

Features

  • 100V drain-source voltage rating
  • 42A continuous drain current capability
  • 36 mΩ maximum on-resistance at VGS=10V
  • Advanced IR MOSFET technology
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-247AC through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • DC motor control and drives
  • Lighting systems and LED drivers
  • Industrial power systems
  • Load switching applications
  • Battery powered applications

The IRFP150MPBF is a 100V single N-channel power MOSFET from Infineon Technologies, packaged in a TO-247AC through-hole enclosure. It features a continuous drain current of 42A at 25°C with a maximum on-resistance of 36mΩ at VGS=10V. The IR MOSFET family of power MOSFETs utilizes proven silicon processes offering designers a wide portfolio of devices to support various applications such as DC motors, inverters, SMPS, lighting, load switches, as well as battery powered applications. The IRFP150MPBF features advanced process technology with dynamic dv/dt rating, 175°C operating junction temperature, fast switching speed, and full avalanche rating for enhanced reliability. The devices are available in a variety of through-hole packages with industry standard footprints for ease of design. With a power dissipation of 160W and operating temperature range from -55°C to +175°C, this device delivers reliable performance across a wide range of environmental conditions for industrial and consumer power electronics applications.

The IRFP150MPBF operates as an N-channel enhancement mode MOSFET where a positive voltage applied between gate and source, exceeding the threshold voltage (2-4V, typically 3V), creates an N-type conductive channel connecting the drain and source terminals. When VGS=10V is applied, the device reaches full enhancement with minimum on-resistance (36mΩ maximum), enabling efficient power transfer with minimal conduction losses. The HEXFET technology with optimized cell geometry achieves low on-resistance per unit silicon area while maintaining the 100V blocking voltage rating through carefully designed drift region structures. With VGS=0V, the MOSFET is in the off-state, blocking up to 100V across the drain-source junction with extremely low leakage current. The integrated body diode conducts when the source terminal is at a higher potential than the drain, providing a freewheeling path for inductive load currents. The device’s robust design with 420mJ single pulse avalanche energy ensures reliable operation under transient voltage conditions commonly found in motor control and power supply circuits.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • DC motor control and drives
  • Lighting systems and LED drivers
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • Battery powered applications
Model VDS (V) ID (A) RDS(on) Max Package
IRFP140NPBF 100 33 52 mΩ TO-247AC
IRFP4310ZPBF 100 134 6 mΩ TO-247AC
IRFB4110PBF 100 120 4.5 mΩ TO-220AB
IRFP260NPBF 200 50 40 mΩ TO-247AC
