IRFP240PBF

200V N-Channel HEXFET (3rd Gen) Power MOSFET, 20A, 180 mΩ RDS(on), TO-247AC

3424

Effective Inventory
Go to Inquiry

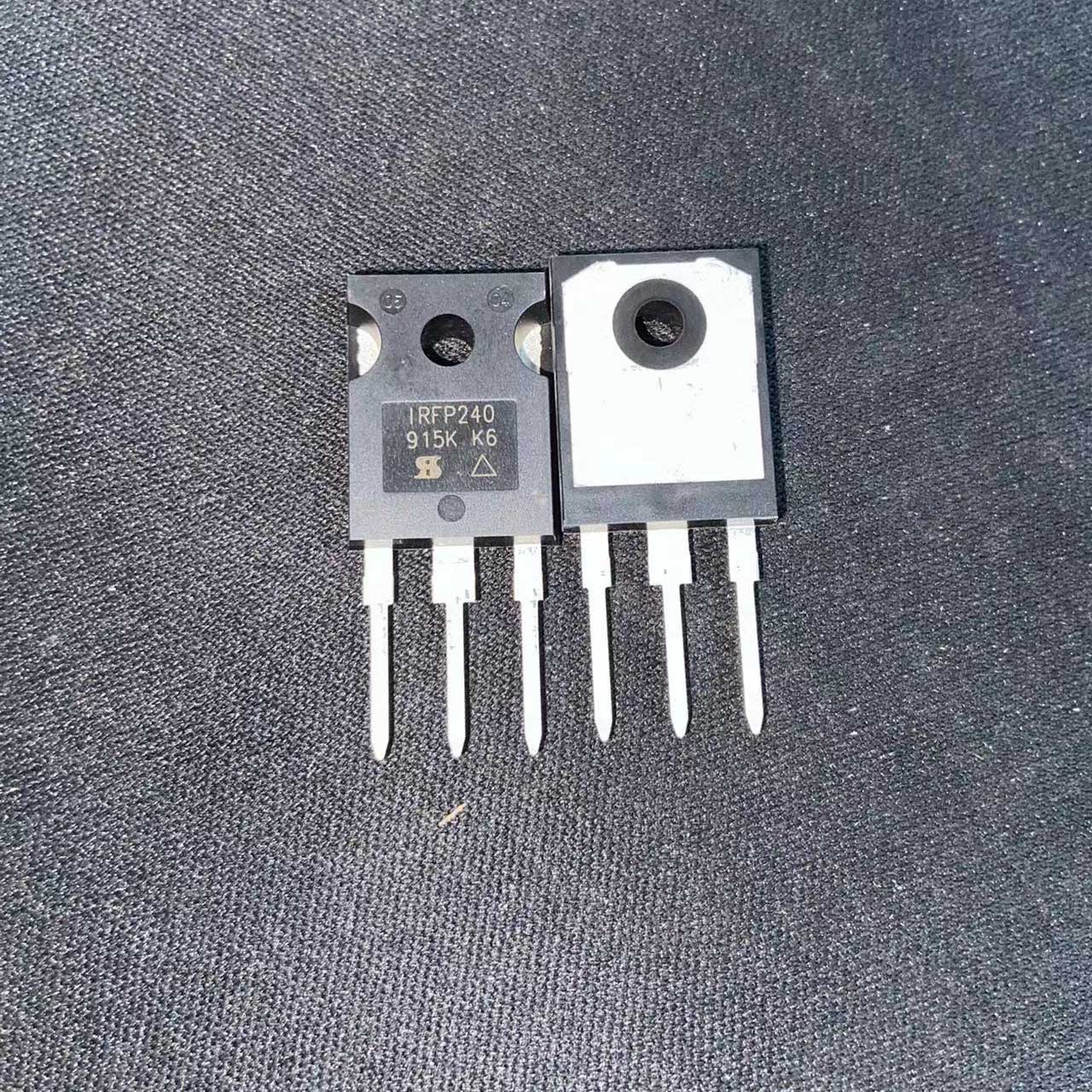

Image for reference only

Manufacturer Part：

IRFP240PBF

Package：

TO-247AC

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFP240PBF is a 200V N-channel HEXFET (3rd Gen) power MOSFET from Infineon Technologies, featuring a continuous drain current of 20A and a maximum on-resistance of 180 mΩ at VGS=10V. Packaged in a TO-247AC through-hole enclosure, this device is optimized for general purpose power switching and SMPS applications. The 3rd Generation HEXFET technology provides proven reliability with fast switching and rugged design, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 200 V
Continuous Drain Current (ID @ 25°C) 20A
Continuous Drain Current (ID @ 100°C) 12A
Pulsed Drain Current (IDM) 80A
On-Resistance (RDS(on) max @ VGS=10V) 180 mΩ
Gate Threshold Voltage (VGS(th)) 2.0 – 4.0 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg typ) 70 nC
Input Capacitance (Ciss typ) 1300 pF
Power Dissipation (PD @ TC=25°C) 150 W
Operating Junction Temperature -55 to +150 °C
Single Pulse Avalanche Energy (EAS) 510 mJ

Features

  • 200V drain-source voltage rating
  • 20A continuous drain current capability
  • 180 mΩ maximum on-resistance at VGS=10V
  • Advanced 3rd Generation HEXFET technology
  • Dynamic dv/dt ruggedness rating
  • 150°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-247AC through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • General purpose power switching
  • Lighting ballasts
  • Industrial power systems
  • Load switching applications
  • Audio power amplifiers

The IRFP240PBF is a 200V N-channel enhancement mode power MOSFET from Infineon Technologies’ third generation HEXFET power MOSFET family. It provides a continuous drain current of 20A at 25°C with a maximum on-resistance of 180mΩ at VGS=10V, offering a reliable solution for general purpose medium voltage power switching applications. Housed in a TO-247AC through-hole package, this device delivers dependable thermal performance for a wide range of power electronics designs. The IRFP240PBF features third generation HEXFET technology with dynamic dv/dt rating, repetitive avalanche rated design, fast switching characteristics, and an isolated central mounting hole for easy assembly. The device is lead-free and RoHS compliant, making it suitable for applications including switch mode power supplies, DC-DC converters, motor control, industrial power systems, lighting ballasts, audio power amplifiers, and general purpose high voltage power switching.

The IRFP240PBF is an N-channel enhancement mode MOSFET that operates by creating a conductive channel between drain and source when a positive gate-source voltage exceeds the device threshold level (2-4V). At VGS=10V, the device is fully enhanced with maximum channel width, achieving its rated on-resistance of 180mΩ maximum. The third generation HEXFET cell structure provides a balance between switching speed and on-resistance, with the 200V breakdown voltage achieved through optimized drift region doping and edge termination. With VGS=0V, the MOSFET blocks up to 200V across the drain-source junction with minimal leakage current. The integrated body diode allows reverse current flow when the source is more positive than the drain, providing freewheeling capability essential for inductive load applications such as motor drives and power supply converters. The repetitive avalanche-rated design ensures that the device can safely handle repeated transient over-voltage events, maintaining long-term reliability in real-world operating conditions.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • General purpose power switching
  • Lighting ballasts
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • Audio power amplifiers
Model VDS (V) ID (A) RDS(on) Max Package
IRFP260NPBF 200 50 40 mΩ TO-247AC
IRFB4020PBF 200 31 68 mΩ TO-220AB
IRFB4127PBF 200 76 22 mΩ TO-220AB
IRFP460PBF 500 20 270 mΩ TO-247AC
