IRFP260NPBF

200V N-Channel HEXFET (5th Gen) Power MOSFET, 50A, 40 mΩ RDS(on), TO-247AC

11674

Effective Inventory
Go to Inquiry

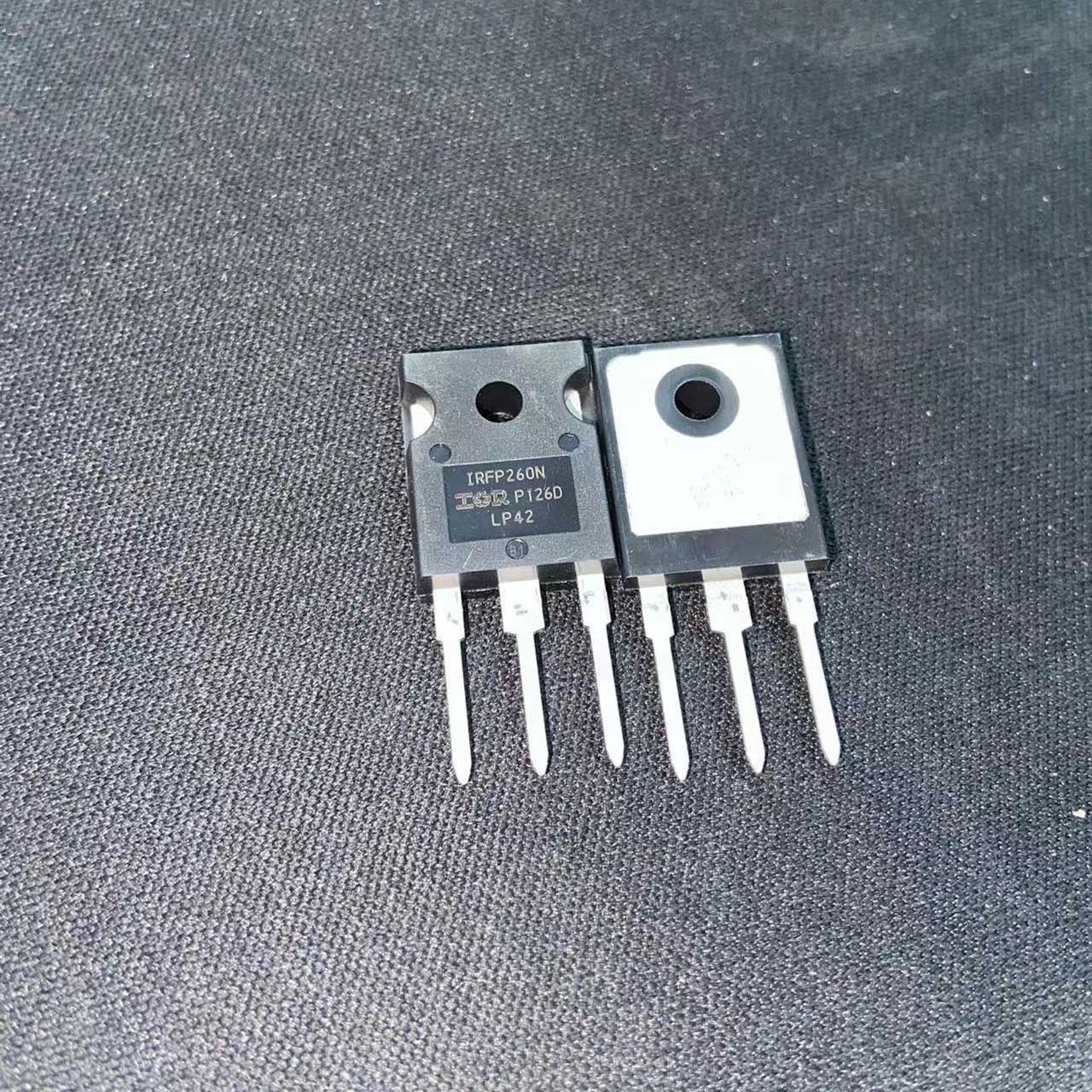

Image for reference only

Manufacturer Part：

IRFP260NPBF

Package：

TO-247AC

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFP260NPBF is a 200V N-channel HEXFET (5th Gen) power MOSFET from Infineon Technologies, featuring a continuous drain current of 50A and a maximum on-resistance of 40 mΩ at VGS=10V. Packaged in a TO-247AC through-hole enclosure, this device is optimized for high efficiency power switching in demanding industrial and renewable energy applications. The 5th Generation HEXFET technology provides advanced technology with ultra-low on-resistance and high current capability, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 200 V
Continuous Drain Current (ID @ 25°C) 50A
Continuous Drain Current (ID @ 100°C) 35A
Pulsed Drain Current (IDM) 200A
On-Resistance (RDS(on) max @ VGS=10V) 40 mΩ
Gate Threshold Voltage (VGS(th)) 2.0 – 4.0 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg typ) 156 nC
Input Capacitance (Ciss typ) 4057 pF
Power Dissipation (PD @ TC=25°C) 300 W
Operating Junction Temperature -55 to +175 °C
Single Pulse Avalanche Energy (EAS) 560 mJ

Features

  • 200V drain-source voltage rating
  • 50A continuous drain current capability
  • 40 mΩ maximum on-resistance at VGS=10V
  • Advanced 5th Generation HEXFET technology
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-247AC through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • Renewable energy systems
  • Automotive electronics
  • Industrial power systems
  • Load switching applications
  • Solar inverter systems

The IRFP260NPBF is a 200V N-channel enhancement mode power MOSFET from Infineon Technologies featuring fifth generation HEXFET technology. It offers a continuous drain current of 50A at 25°C with a low maximum on-resistance of 40mΩ at VGS=10V, providing excellent conduction performance for medium voltage high current applications. Packaged in a TO-247AC through-hole enclosure, this device delivers superior thermal performance suitable for demanding power electronics designs. The IRFP260NPBF features advanced process technology with dynamic dv/dt rating, a 175°C operating junction temperature, fast switching characteristics, full avalanche rating, and easy paralleling capability for high power designs. The device is lead-free and RoHS compliant, making it ideal for applications including switch mode power supplies, DC-DC converters, motor control, UPS systems, industrial power systems, renewable energy systems, automotive electronics, and solar inverters where high efficiency and reliability are critical.

The IRFP260NPBF operates as an N-channel enhancement mode MOSFET where a positive gate-source voltage above the threshold (2-4V, typically 3V) induces a conductive N-type channel in the P-type body region, allowing electron flow from source to drain. When VGS=10V is applied, the device is fully enhanced, providing its minimum on-resistance of 40mΩ maximum, which minimizes conduction losses at rated current levels. The fifth generation HEXFET technology with advanced cell geometry achieves this low resistance combined with the 200V blocking voltage rating through optimized drift region design and termination structures. With VGS=0V, the MOSFET blocks up to 200V across the drain-source junction with very low leakage current. The intrinsic body diode provides reverse conduction capability, making the device suitable for inductive load applications where freewheeling current paths are required. The device is fully avalanche rated with 560mJ EAS, meaning it can safely dissipate energy during unclamped inductive switching events, providing enhanced reliability in power supply and motor drive applications where transient conditions may occur.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • Renewable energy systems
  • Automotive electronics
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • Solar inverter systems
Model VDS (V) ID (A) RDS(on) Max Package
IRFP240PBF 200 20 180 mΩ TO-247AC
IRFB4127PBF 200 76 22 mΩ TO-220AB
IRFP4568PBF 150 171 5.9 mΩ TO-247AC
IRFP460PBF 500 20 270 mΩ TO-247AC
