IRFP4310ZPBF

100V N-Channel StrongIRFET Power MOSFET, 134A (Si limit), 6.0 mΩ RDS(on), TO-247AC

8912

Effective Inventory
Go to Inquiry

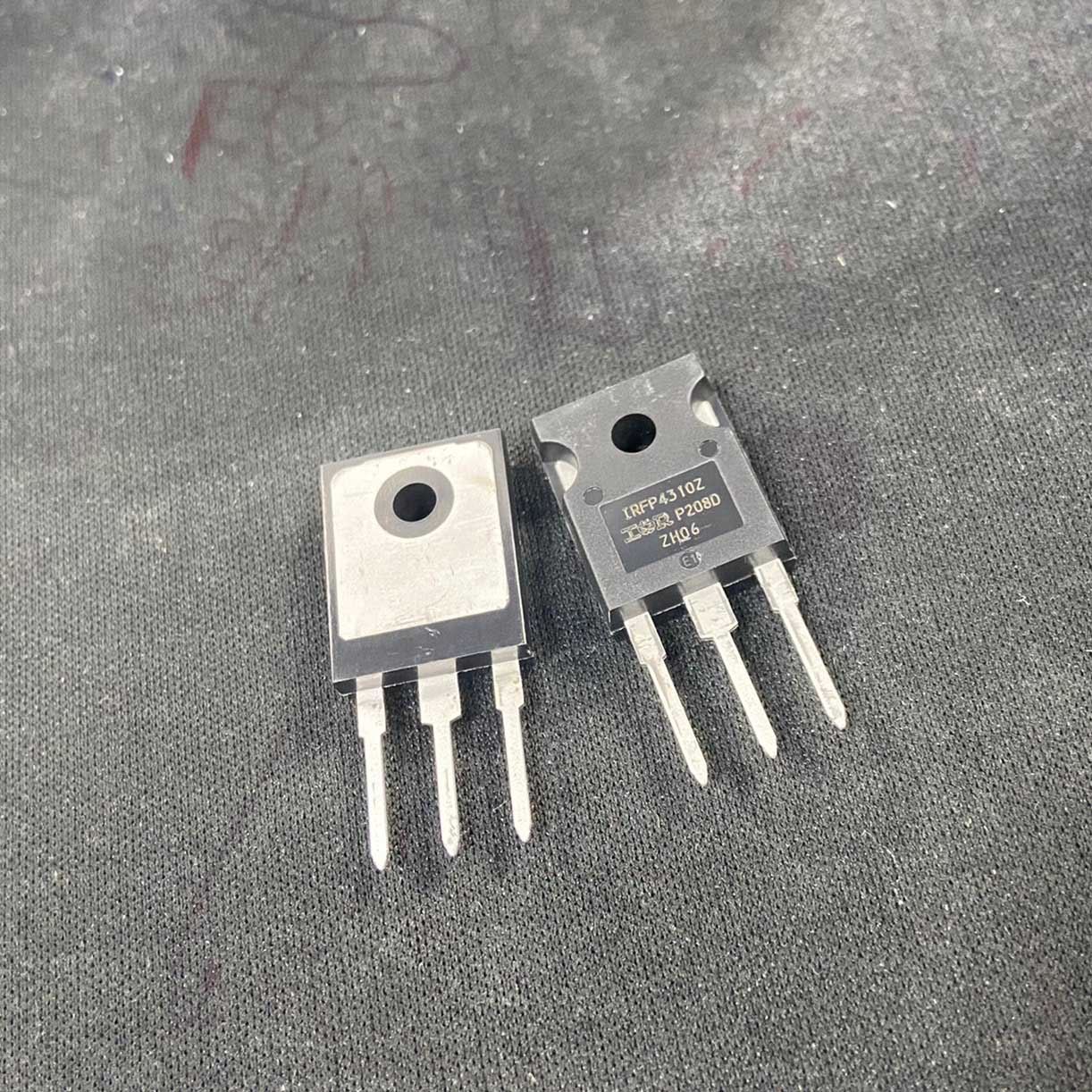

Image for reference only

Manufacturer Part：

IRFP4310ZPBF

Package：

TO-247AC

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFP4310ZPBF is a 100V N-channel StrongIRFET power MOSFET from Infineon Technologies, featuring a continuous drain current of 134A (Si limit) and a maximum on-resistance of 6.0 mΩ at VGS=10V. Packaged in a TO-247AC through-hole enclosure, this device is optimized for high efficiency synchronous rectification and high speed power switching. The StrongIRFET HEXFET technology provides ultra-low on-resistance with extremely high current capability, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 100 V
Continuous Drain Current (ID @ 25°C) 134A (Si limit)
Continuous Drain Current (ID @ 100°C) 88A
Pulsed Drain Current (IDM) 536A
On-Resistance (RDS(on) max @ VGS=10V) 6.0 mΩ
Gate Threshold Voltage (VGS(th)) 2.0 – 4.0 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg typ) 120 nC
Input Capacitance (Ciss typ) 6860 pF
Power Dissipation (PD @ TC=25°C) 280 W
Operating Junction Temperature -55 to +175 °C
Single Pulse Avalanche Energy (EAS) 130 mJ

Features

  • 100V drain-source voltage rating
  • 134A (Si limit) continuous drain current capability
  • 6.0 mΩ maximum on-resistance at VGS=10V
  • Advanced StrongIRFET HEXFET technology
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-247AC through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • High efficiency synchronous rectification
  • Battery management systems
  • Industrial power systems
  • Load switching applications
  • Low voltage high current power supplies

The IRFP4310ZPBF is a 100V N-channel enhancement mode power MOSFET from Infineon Technologies’ HEXFET power MOSFET product family. It features an ultra-high continuous drain current of 134A (silicon limited) with an ultra-low maximum on-resistance of 6.0mΩ at VGS=10V, making it ideal for high efficiency low voltage applications. Packaged in a TO-247AC through-hole enclosure, this device is specifically optimized for high efficiency synchronous rectification and high speed power switching applications. The IRFP4310ZPBF features improved gate, avalanche, and dynamic dv/dt ruggedness, fully characterized capacitance and avalanche SOA, and enhanced body diode dV/dt and dI/dt capability. With a power dissipation rating of 280W and operating junction temperature up to 175°C, this MOSFET delivers industry-leading performance for demanding applications including switch mode power supplies, DC-DC converters, UPS systems, battery management, and motor control where maximum efficiency and reliability are required.

The IRFP4310ZPBF is an N-channel enhancement mode MOSFET that operates by applying a positive gate-source voltage above the threshold level (2-4V) to create an N-type conduction channel between the drain and source terminals. At VGS=10V, the device reaches full enhancement, providing its minimum on-resistance of 6.0mΩ maximum, which is critical for minimizing conduction losses at very high current levels. The HEXFET technology with advanced cell geometry achieves this extremely low resistance combined with the 100V blocking voltage rating through optimized drift region doping and advanced termination structures. With VGS=0V, the MOSFET is in the off-state, blocking up to 100V across the drain-source junction with very low leakage current. The intrinsic body diode provides reverse conduction capability, making the device highly suitable for synchronous rectifier applications where it must carry high inductor current during the off-cycle. The device is fully avalanche rated with 130mJ EAS, meaning it can safely dissipate energy during unclamped inductive switching events, providing enhanced reliability in real-world power supply and motor drive applications.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • High efficiency synchronous rectification
  • Battery management systems
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • Low voltage high current power supplies
Model VDS (V) ID (A) RDS(on) Max Package
IRFB4110PBF 100 120 4.5 mΩ TO-220AB
IRFP150MPBF 100 42 36 mΩ TO-247AC
IRFP140NPBF 100 33 52 mΩ TO-247AC
IRFB3206PBF 60 120 3 mΩ TO-220AB
