IRFP450A

500V N-Channel Power MOSFET Power MOSFET, 14A, 400 mΩ RDS(on), TO-247AC

2520

Effective Inventory
Go to Inquiry

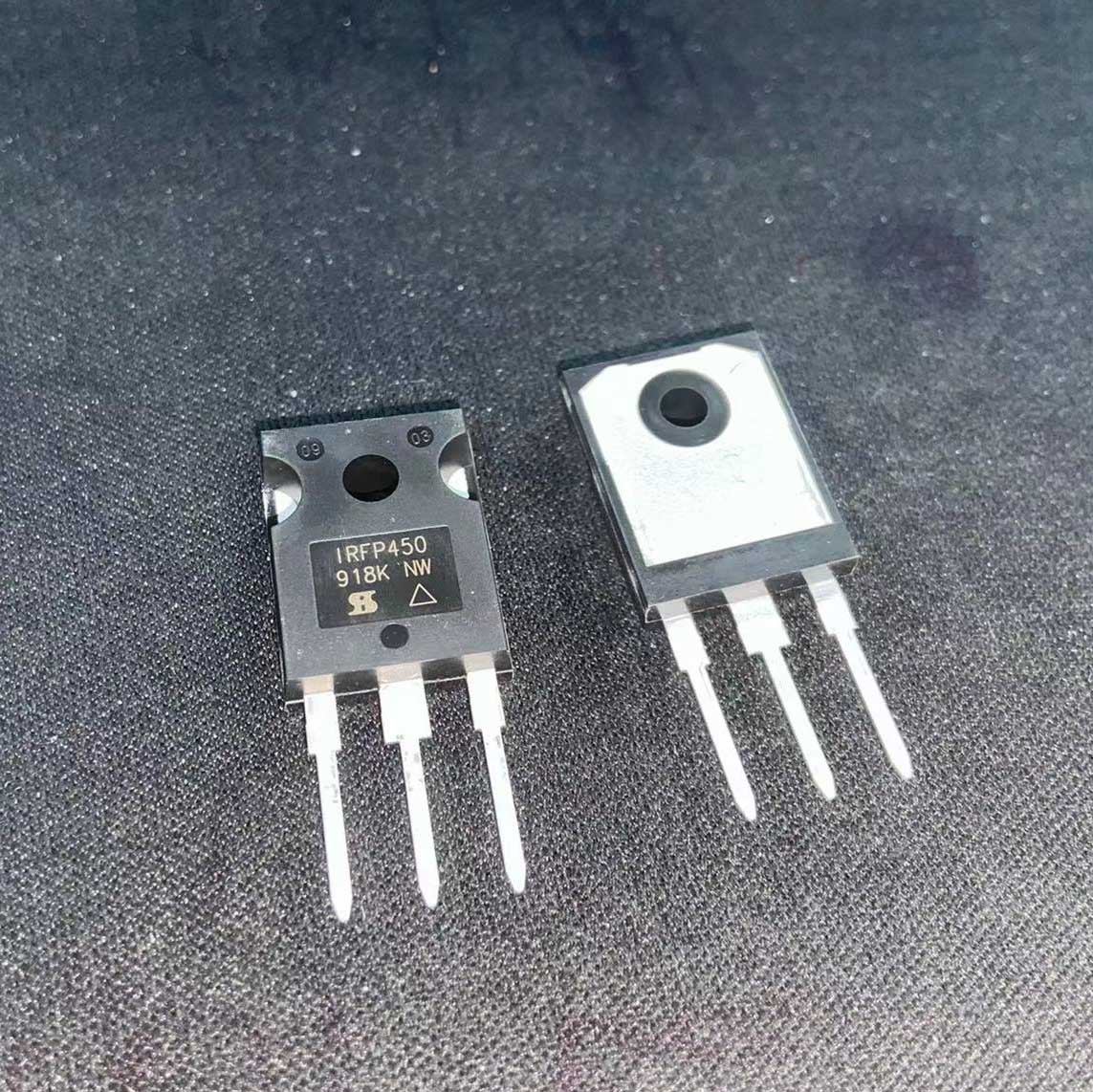

Image for reference only

Manufacturer Part：

IRFP450A

Package：

TO-247AC

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFP450A is a 500V N-channel Power MOSFET power MOSFET from Infineon Technologies, featuring a continuous drain current of 14A and a maximum on-resistance of 400 mΩ at VGS=10V. Packaged in a TO-247AC through-hole enclosure, this device is optimized for high voltage power conversion and switch mode power supplies. The Advanced Power MOSFET technology provides high voltage rating with low gate charge and rugged avalanche capability, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 500 V
Continuous Drain Current (ID @ 25°C) 14A
Continuous Drain Current (ID @ 100°C) 8.7A
Pulsed Drain Current (IDM) 56A
On-Resistance (RDS(on) max @ VGS=10V) 400 mΩ
Gate Threshold Voltage (VGS(th)) 2.0 – 4.0 V
Gate-Source Voltage (VGS) ±30 V
Total Gate Charge (Qg typ) 64 nC
Input Capacitance (Ciss typ) 2038 pF
Power Dissipation (PD @ TC=25°C) 190 W
Operating Junction Temperature -55 to +150 °C
Single Pulse Avalanche Energy (EAS) 760 mJ

Features

  • 500V drain-source voltage rating
  • 14A continuous drain current capability
  • 400 mΩ maximum on-resistance at VGS=10V
  • Advanced Advanced Power MOSFET technology
  • Dynamic dv/dt ruggedness rating
  • 150°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-247AC through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • High voltage power conversion
  • Power factor correction
  • Industrial power systems
  • Load switching applications
  • Welding power supplies

The IRFP450A is a 500V N-channel enhancement mode power MOSFET manufactured by Vishay Siliconix (formerly International Rectifier). It provides a continuous drain current of 14A at 25°C with a maximum on-resistance of 400mΩ at VGS=10V, making it suitable for high voltage medium current power switching applications. Housed in a TO-247AC through-hole package, this device delivers reliable thermal performance for high voltage power electronics designs. The IRFP450A features low gate charge for efficient drive requirements, improved gate, avalanche, and dynamic dv/dt ruggedness, and fully characterized capacitance and avalanche voltage current for enhanced system reliability. The device is designed for switch mode power supplies and high voltage power conversion applications. With a power dissipation of 190W and operating junction temperature up to 150°C, this MOSFET provides dependable performance for applications including switch mode power supplies, DC-DC converters, UPS systems, power factor correction, solar inverters, welding power supplies, and industrial high voltage power systems.

The IRFP450A operates as an N-channel enhancement mode MOSFET where a positive gate-source voltage above the threshold level (2-4V) creates an N-type inversion layer in the P-type body region, allowing electron current flow from source to drain. When VGS=10V is applied, the device is fully enhanced, providing its minimum on-resistance of 400mΩ maximum for rated current conduction. The 500V blocking voltage is achieved through a carefully designed drift region with optimized doping profile and advanced edge termination structures to maximize voltage withstand capability while maintaining reasonable on-resistance. With VGS=0V, the MOSFET blocks up to 500V across the drain-source junction with very low leakage current. The intrinsic body diode provides reverse conduction capability when the source voltage exceeds the drain voltage, enabling freewheeling operation in inductive load circuits. The device features improved avalanche ruggedness with 760mJ single pulse avalanche energy, ensuring reliable operation under transient over-voltage conditions commonly encountered in high voltage power supply and motor drive applications.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • High voltage power conversion
  • Power factor correction
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • Welding power supplies
Model VDS (V) ID (A) RDS(on) Max Package
IRFP460PBF 500 20 270 mΩ TO-247AC
IRFP260NPBF 200 50 40 mΩ TO-247AC
IRFP240PBF 200 20 180 mΩ TO-247AC
IRFB4229PBF 250 46 46 mΩ TO-220
