IRFP4568PBF

150V N-Channel StrongIRFET Power MOSFET, 171A (Si limit), 5.9 mΩ RDS(on), TO-247AC

2488

Effective Inventory
Go to Inquiry

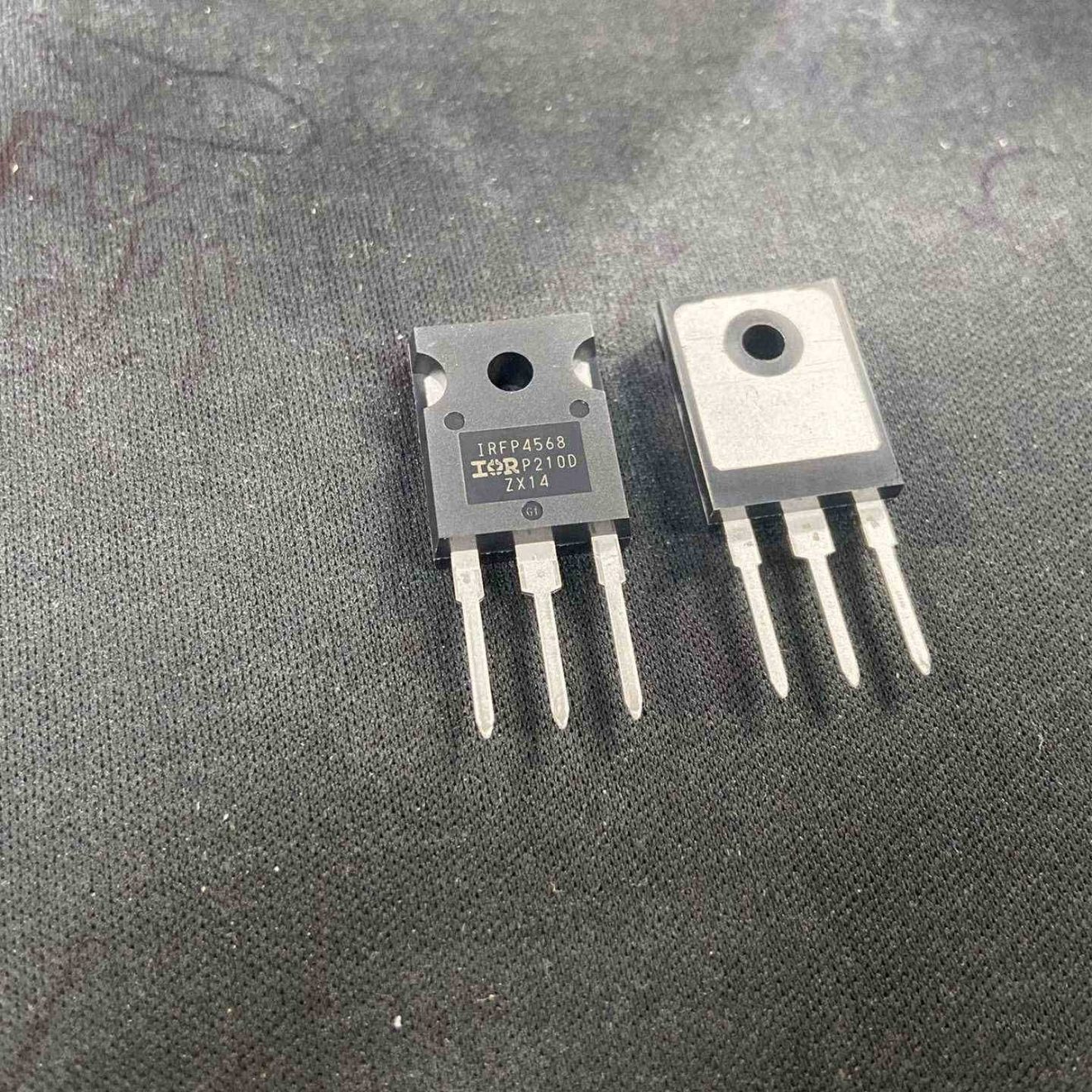

Image for reference only

Manufacturer Part：

IRFP4568PBF

Package：

TO-247AC

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFP4568PBF is a 150V N-channel StrongIRFET power MOSFET from Infineon Technologies, featuring a continuous drain current of 171A (Si limit) and a maximum on-resistance of 5.9 mΩ at VGS=10V. Packaged in a TO-247AC through-hole enclosure, this device is optimized for high efficiency synchronous rectification and fuel cell control units. The StrongIRFET HEXFET technology provides extremely high power handling with ultra-low on-resistance, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 150 V
Continuous Drain Current (ID @ 25°C) 171A (Si limit)
Continuous Drain Current (ID @ 100°C) 121A
Pulsed Drain Current (IDM) 684A
On-Resistance (RDS(on) max @ VGS=10V) 5.9 mΩ
Gate Threshold Voltage (VGS(th)) 3.0 – 5.0 V
Gate-Source Voltage (VGS) ±30 V
Total Gate Charge (Qg typ) 151 nC
Input Capacitance (Ciss typ) 10470 pF
Power Dissipation (PD @ TC=25°C) 517 W
Operating Junction Temperature -55 to +175 °C
Single Pulse Avalanche Energy (EAS) 763 mJ

Features

  • 150V drain-source voltage rating
  • 171A (Si limit) continuous drain current capability
  • 5.9 mΩ maximum on-resistance at VGS=10V
  • Advanced StrongIRFET HEXFET technology
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-247AC through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • Fuel Cell Control Units (FCCU)
  • High efficiency synchronous rectification
  • Industrial power systems
  • Load switching applications
  • High current power supplies

The IRFP4568PBF is a 150V N-channel enhancement mode power MOSFET from Infineon Technologies’ HEXFET power MOSFET family, offering an exceptional 171A continuous drain current (silicon limited) with an ultra-low maximum on-resistance of 5.9mΩ at VGS=10V. Packaged in a TO-247AC through-hole enclosure with an impressive 517W power dissipation rating, this device is specifically optimized for high efficiency synchronous rectification and high speed power switching applications. The IRFP4568PBF features improved gate, avalanche, and dynamic dv/dt ruggedness, fully characterized capacitance and avalanche SOA, and enhanced body diode dV/dt and dI/dt capability. With an operating junction temperature up to 175°C and extremely high power handling capability, this MOSFET delivers industry-leading performance for the most demanding applications including switch mode power supplies, DC-DC converters, UPS systems, fuel cell control units, battery management, and high current power systems where maximum efficiency and reliability are essential.

The IRFP4568PBF operates as an N-channel enhancement mode MOSFET where a positive gate-source voltage above the threshold level (3-5V, typically 4V) creates an N-type conduction channel between the drain and source terminals. At VGS=10V, the device reaches full enhancement, providing its minimum on-resistance of 5.9mΩ maximum, which is critical for minimizing conduction losses at very high current levels. The HEXFET technology with advanced cell geometry achieves this extremely low resistance combined with the 150V blocking voltage rating through optimized drift region doping and advanced termination structures. With VGS=0V, the MOSFET is in the off-state, blocking up to 150V across the drain-source junction with very low leakage current. The intrinsic body diode provides reverse conduction capability with enhanced dV/dt and dI/dt performance, making the device highly suitable for synchronous rectifier applications where it must carry high inductor current during the off-cycle. The device is fully avalanche rated with 763mJ EAS, meaning it can safely dissipate substantial energy during unclamped inductive switching events, providing exceptional reliability in high power applications.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • Fuel Cell Control Units (FCCU)
  • High efficiency synchronous rectification
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • High current power supplies
Model VDS (V) ID (A) RDS(on) Max Package
IRFP4310ZPBF 100 134 6 mΩ TO-247AC
IRFP260NPBF 200 50 40 mΩ TO-247AC
IRFB52N15DPBF 150 51 32 mΩ TO-220
IRFB4019PBF 150 47 34 mΩ TO-220AB
