IRFP460PBF

500V N-Channel Power MOSFET Power MOSFET, 20A, 270 mΩ RDS(on), TO-247AC

3535

Effective Inventory
Go to Inquiry

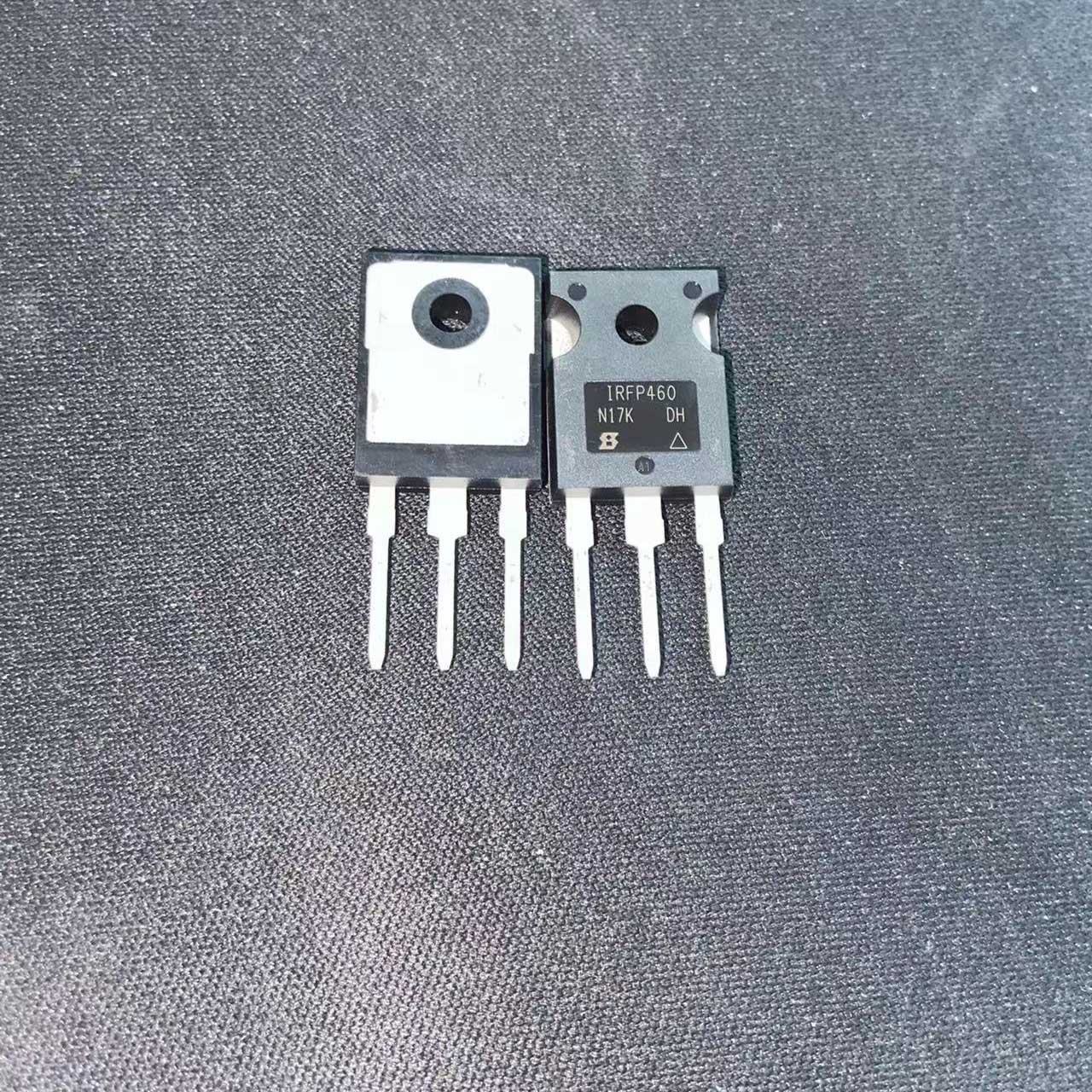

Image for reference only

Manufacturer Part：

IRFP460PBF

Package：

TO-247AC

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFP460PBF is a 500V N-channel Power MOSFET power MOSFET from Infineon Technologies, featuring a continuous drain current of 20A and a maximum on-resistance of 270 mΩ at VGS=10V. Packaged in a TO-247AC through-hole enclosure, this device is optimized for high voltage switch mode power supplies and industrial power systems. The HEXFET Power MOSFET technology provides high voltage rating with good current capability and rugged avalanche performance, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 500 V
Continuous Drain Current (ID @ 25°C) 20A
Continuous Drain Current (ID @ 100°C) 13A
Pulsed Drain Current (IDM) 80A
On-Resistance (RDS(on) max @ VGS=10V) 270 mΩ
Gate Threshold Voltage (VGS(th)) 2.0 – 4.0 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg typ) 110 nC
Input Capacitance (Ciss typ) 4200 pF
Power Dissipation (PD @ TC=25°C) 280 W
Operating Junction Temperature -55 to +150 °C
Single Pulse Avalanche Energy (EAS) 570 mJ

Features

  • 500V drain-source voltage rating
  • 20A continuous drain current capability
  • 270 mΩ maximum on-resistance at VGS=10V
  • Advanced HEXFET Power MOSFET technology
  • Dynamic dv/dt ruggedness rating
  • 150°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-247AC through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • Power factor correction
  • Solar inverter systems
  • Industrial power systems
  • Load switching applications
  • Welding power supplies

The IRFP460PBF is a 500V N-channel enhancement mode power MOSFET originally from International Rectifier (now Vishay / Infineon portfolio). It provides a continuous drain current of 20A at 25°C with a maximum on-resistance of 270mΩ at VGS=10V, making it suitable for high voltage medium current power switching applications. Housed in a TO-247AC through-hole package, this device delivers reliable thermal performance for high voltage power electronics designs. The IRFP460PBF features dynamic dv/dt rating, repetitive avalanche rated design, fast switching speed, an isolated central mounting hole, ease of paralleling, and simple drive requirements. The device is designed for switch mode power supplies and high voltage power conversion applications. With a power dissipation of 280W and operating junction temperature range from -55°C to +150°C, this MOSFET provides dependable performance for applications including switch mode power supplies, DC-DC converters, UPS systems, power factor correction, solar inverters, welding power supplies, motor control, and industrial high voltage power systems.

The IRFP460PBF is an N-channel enhancement mode MOSFET that operates by applying a positive gate-source voltage above the threshold level (2-4V, typically 4V) to create an N-type inversion layer in the P-type body region, enabling electron current flow from source to drain. When VGS=10V is applied, the device is fully enhanced, providing its minimum on-resistance of 270mΩ maximum for efficient conduction at rated current levels. The 500V breakdown voltage is achieved through a carefully optimized drift region design with proper doping profile and advanced edge termination structures to maximize voltage withstand capability. With VGS=0V, the MOSFET is in the off-state, blocking up to 500V across the drain-source junction with very low leakage current. The intrinsic body diode provides reverse conduction capability when the source voltage exceeds the drain voltage, enabling freewheeling operation in inductive load circuits such as motor drives and power supply converters. The repetitive avalanche-rated design ensures the device can safely handle repeated transient over-voltage events, maintaining device integrity and long-term reliability in high voltage power applications.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • Power factor correction
  • Solar inverter systems
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • Welding power supplies
Model VDS (V) ID (A) RDS(on) Max Package
IRFP450A 500 14 400 mΩ TO-247AC
IRFP260NPBF 200 50 40 mΩ TO-247AC
IRFP240PBF 200 20 180 mΩ TO-247AC
IRFB4229PBF 250 46 46 mΩ TO-220
