IRFR7440TRPBF

IRFR7440TRPBF - 40V N-Channel StrongIRFET Power MOSFET, 2.4 mΩ (max) @ 10V RDS(on), TO-252AA (D-PAK)

9128

Effective Inventory
Go to Inquiry

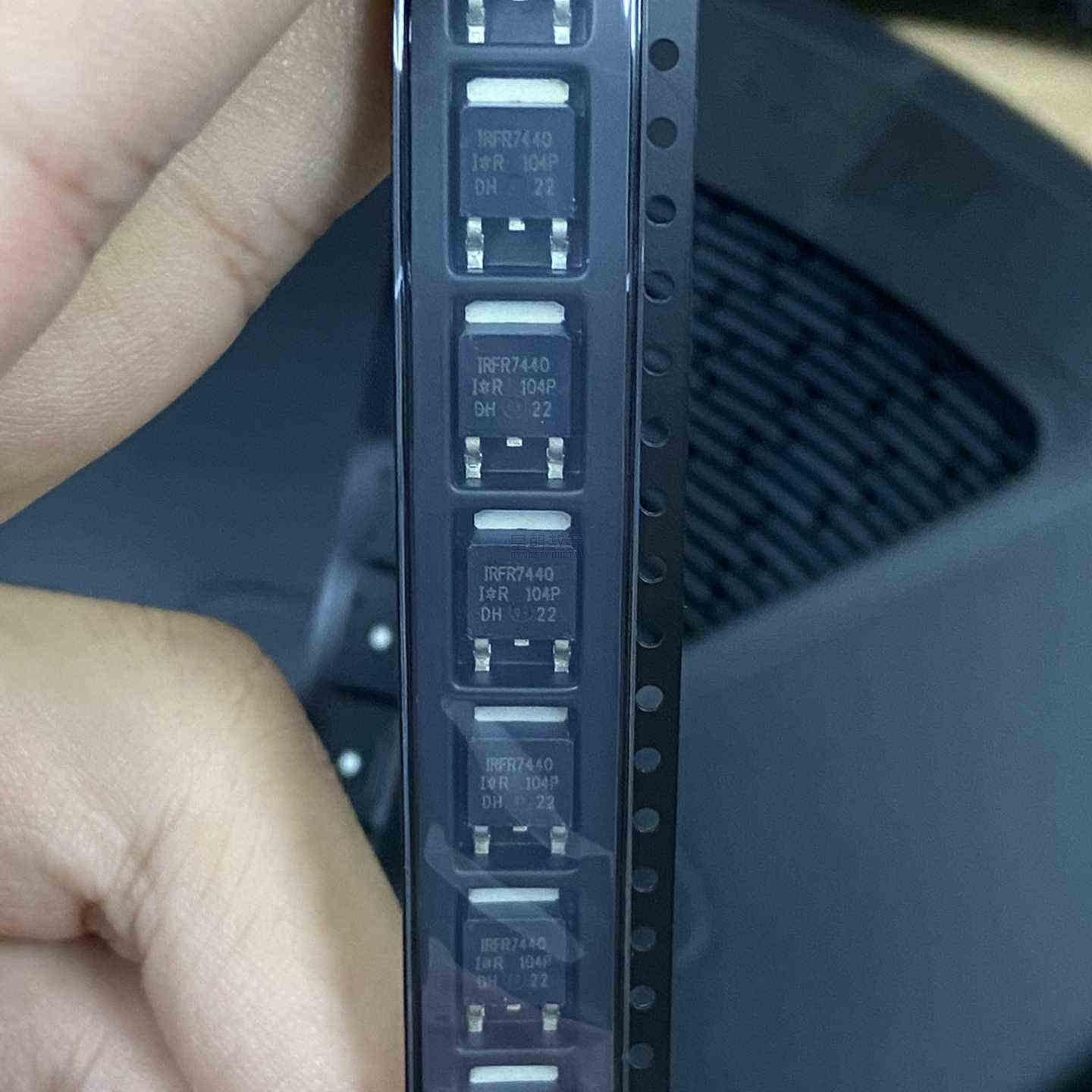

Image for reference only

Manufacturer Part：

IRFR7440TRPBF

Package：

TO-252AA (D-PAK)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFR7440TRPBF is a 40V N-Channel StrongIRFET Power MOSFET from Infineon Technologies (formerly International Rectifier), part of the StrongIRFET™ product family. This device combines optimized silicon processing with industry-standard packaging to deliver reliable performance for demanding power electronics applications. The IRFR7440TRPBF provides a well-balanced combination of voltage rating, current handling, and on-resistance, making it suitable for a wide range of power conversion and switching applications.

Manufactured using advanced power MOSFET technology, the IRFR7440TRPBF features a rugged design with fully characterized avalanche performance and dynamic dv/dt capability. The device is available in a TO-252AA (D-PAK) package, offering proven thermal performance and board-level reliability for volume production environments.

Key Specifications

Drain-Source Voltage (VDS) 40 V
Continuous Drain Current (ID @ 25°C) 90A (pkg limit) / 180A (Si limit)
Pulsed Drain Current (IDM) 760A
On-Resistance (RDS(on) max @ VGS=10V) 2.4 mΩ (max) @ 10V
Gate Threshold Voltage (VGS(th)) 2.2 – 3.9 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg) 89 nC (typ)
Power Dissipation (PD) 140 W
Operating Junction Temperature -55 to +175 °C
Package TO-252AA (D-PAK)

Features

  • 40 V drain-source voltage rating
  • Advanced StrongIRFET™
  • Improved gate, avalanche and dynamic dv/dt ruggedness
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature (where applicable)
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-252AA (D-PAK) package

Applications

  • Brushed/BLDC motor drives, PWM inverters, battery powered circuits
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Power management systems
  • Industrial power systems
  • Load switching applications

The IRFR7440TRPBF is an N-channel enhancement mode power MOSFET from Infineon Technologies’ StrongIRFET™ family. It features a drain-source voltage rating of 40 V and continuous drain current of 90A (pkg limit) / 180A (Si limit) with a maximum on-resistance of 2.4 mΩ (max) @ 10V. Packaged in a TO-252AA (D-PAK), this device is optimized for brushed/bldc motor drives, pwm inverters, battery powered circuits. The IRFR7440TRPBF provides improved gate, avalanche and dynamic dv/dt ruggedness, along with fully characterized avalanche performance and industry-standard packaging for ease of design and manufacturing.

The IRFR7440TRPBF operates as an N-channel enhancement-mode MOSFET. When a positive gate-source voltage exceeding the threshold (2.2 – 3.9 V) is applied, an N-type inversion layer forms in the P-type body region, creating a conductive channel between drain and source. At VGS=10V, the device reaches full enhancement, providing its rated on-resistance of 2.4 mΩ (max) @ 10V. The StrongIRFET™ cell geometry balances switching speed with conduction losses. With VGS=0V, the device blocks up to 40 V across the drain-source junction with minimal leakage. The intrinsic body diode provides reverse conduction capability, essential for inductive load applications such as motor drives and power supply converters.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Drain; primary thermal path
  • Brushed/BLDC motor drives, PWM inverters, battery powered circuits
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Power management systems
  • Industrial power systems
  • Load switching applications
Model VDS (V) ID (A) RDS(on) Max Package
Check distributor — — — —
