IRFS4115TRLPBF

IRFS4115TRLPBF - 150V N-Channel HEXFET Power MOSFET, 12.1 mΩ RDS(on), D2PAK (TO-263)

6965

Effective Inventory
Go to Inquiry

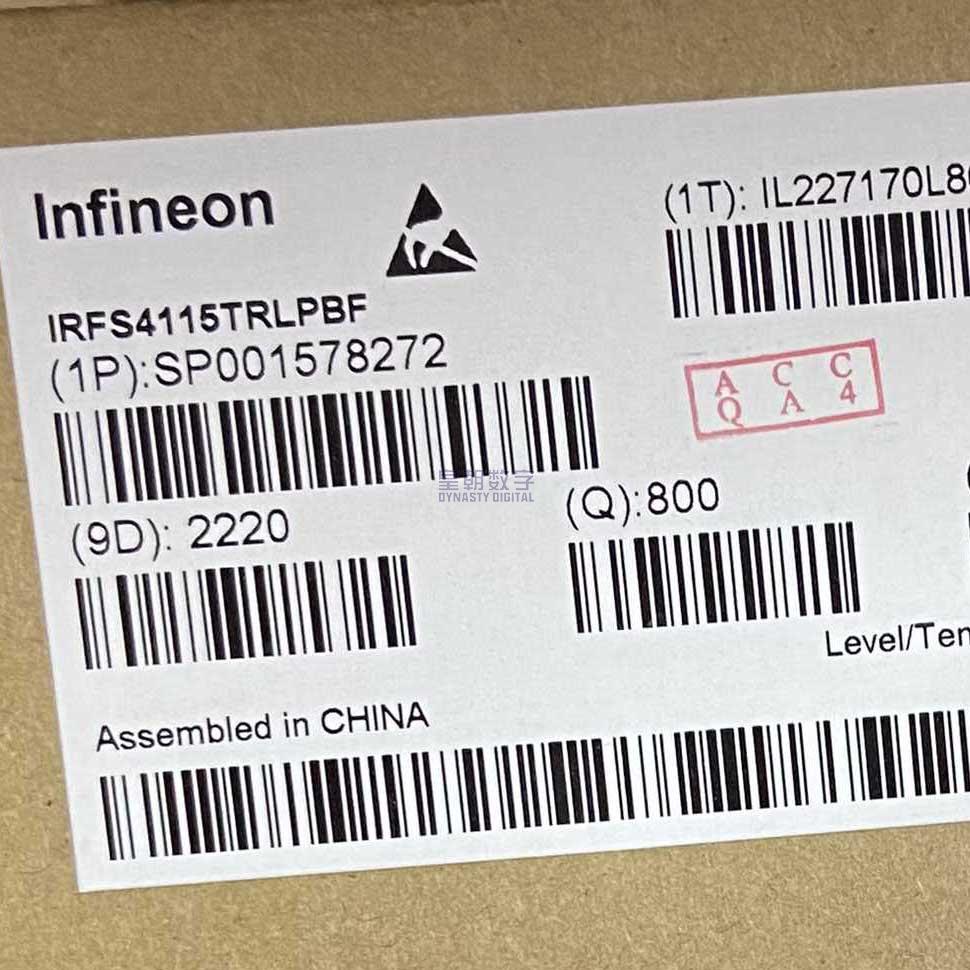

Image for reference only

Manufacturer Part：

IRFS4115TRLPBF

Package：

D2PAK (TO-263)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFS4115TRLPBF is a 150V N-Channel HEXFET Power MOSFET from Infineon Technologies (formerly International Rectifier), part of the HEXFET® Gen 10.7 product family. This device combines optimized silicon processing with industry-standard packaging to deliver reliable performance for demanding power electronics applications. The IRFS4115TRLPBF provides a well-balanced combination of voltage rating, current handling, and on-resistance, making it suitable for a wide range of power conversion and switching applications.

Manufactured using advanced power MOSFET technology, the IRFS4115TRLPBF features a rugged design with fully characterized avalanche performance and dynamic dv/dt capability. The device is available in a D2PAK (TO-263) package, offering proven thermal performance and board-level reliability for volume production environments.

Key Specifications

Drain-Source Voltage (VDS) 150 V
Continuous Drain Current (ID @ 25°C) 99A
Pulsed Drain Current (IDM) —
On-Resistance (RDS(on) max @ VGS=10V) 12.1 mΩ
Gate Threshold Voltage (VGS(th)) 3.0 – 5.0 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg) 77 nC (typ)
Power Dissipation (PD) 375 W
Operating Junction Temperature -55 to +175 °C
Package D2PAK (TO-263)

Features

  • 150 V drain-source voltage rating
  • Advanced HEXFET® Gen 10.7
  • Ultra low on-resistance, high current capability
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature (where applicable)
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • D2PAK (TO-263) package

Applications

  • 72-96V battery applications, industrial power, electric forklifts
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Power management systems
  • Industrial power systems
  • Load switching applications

The IRFS4115TRLPBF is an N-channel enhancement mode power MOSFET from Infineon Technologies’ HEXFET® Gen 10.7 family. It features a drain-source voltage rating of 150 V and continuous drain current of 99A with a maximum on-resistance of 12.1 mΩ. Packaged in a D2PAK (TO-263), this device is optimized for 72-96v battery applications, industrial power, electric forklifts. The IRFS4115TRLPBF provides ultra low on-resistance, high current capability, along with fully characterized avalanche performance and industry-standard packaging for ease of design and manufacturing.

The IRFS4115TRLPBF operates as an N-channel enhancement-mode MOSFET. When a positive gate-source voltage exceeding the threshold (3.0 – 5.0 V) is applied, an N-type inversion layer forms in the P-type body region, creating a conductive channel between drain and source. At VGS=10V, the device reaches full enhancement, providing its rated on-resistance of 12.1 mΩ. The HEXFET® Gen 10.7 cell geometry balances switching speed with conduction losses. With VGS=0V, the device blocks up to 150 V across the drain-source junction with minimal leakage. The intrinsic body diode provides reverse conduction capability, essential for inductive load applications such as motor drives and power supply converters.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Drain; primary thermal path
  • 72-96V battery applications, industrial power, electric forklifts
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Power management systems
  • Industrial power systems
  • Load switching applications
Model VDS (V) ID (A) RDS(on) Max Package
Check distributor — — — —
