IRFS4227TRLPBF

IRFS4227TRLPBF - 200V N-Channel HEXFET PDP Switch Power MOSFET, 26 mΩ RDS(on), D2PAK (TO-263)

4334

Effective Inventory
Go to Inquiry

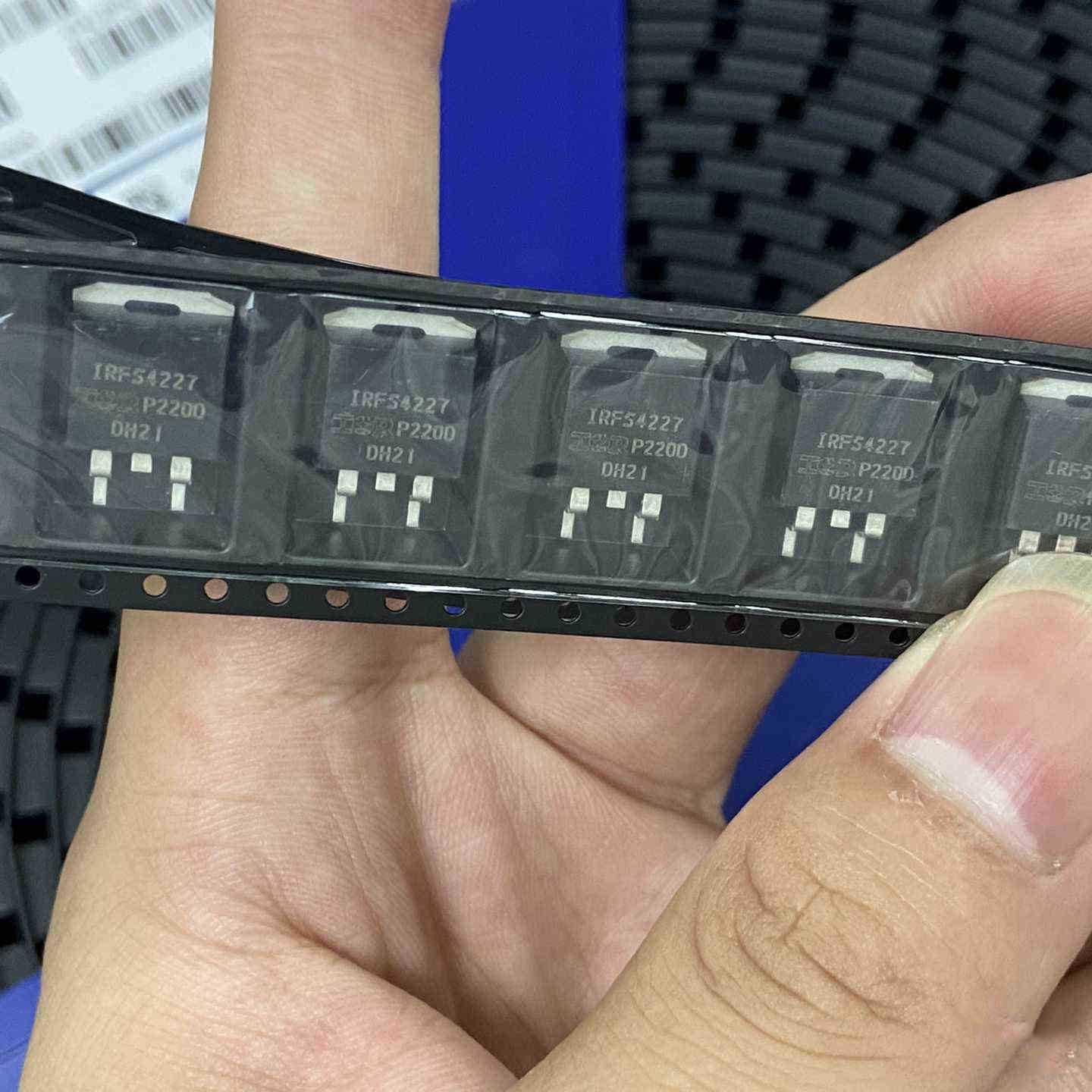

Image for reference only

Manufacturer Part：

IRFS4227TRLPBF

Package：

D2PAK (TO-263)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4115TRLPBF

Description

Product Overview

The IRFS4227TRLPBF is a 200V N-Channel HEXFET PDP Switch Power MOSFET from Infineon Technologies (formerly International Rectifier), part of the HEXFET® PDP Switch product family. This device combines optimized silicon processing with industry-standard packaging to deliver reliable performance for demanding power electronics applications. The IRFS4227TRLPBF provides a well-balanced combination of voltage rating, current handling, and on-resistance, making it suitable for a wide range of power conversion and switching applications.

Manufactured using advanced power MOSFET technology, the IRFS4227TRLPBF features a rugged design with fully characterized avalanche performance and dynamic dv/dt capability. The device is available in a D2PAK (TO-263) package, offering proven thermal performance and board-level reliability for volume production environments.

Key Specifications

Drain-Source Voltage (VDS) 200 V
Continuous Drain Current (ID @ 25°C) 62A
Pulsed Drain Current (IDM) 260A
On-Resistance (RDS(on) max @ VGS=10V) 26 mΩ
Gate Threshold Voltage (VGS(th)) 3.0 – 5.0 V
Gate-Source Voltage (VGS) ±30 V
Total Gate Charge (Qg) 70 nC (typ)
Input Capacitance (Ciss) 4600 pF
Power Dissipation (PD) 330 W
Operating Junction Temperature -40 to +175 °C
Package D2PAK (TO-263)

Features

  • 200 V drain-source voltage rating
  • Advanced HEXFET® PDP Switch
  • Optimized for PDP sustain, energy recovery and pass switch apps
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature (where applicable)
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • D2PAK (TO-263) package

Applications

  • PDP plasma display sustain circuits, energy recovery, high voltage SMPS
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Power management systems
  • Industrial power systems
  • Load switching applications

The IRFS4227TRLPBF is an N-channel enhancement mode power MOSFET from Infineon Technologies’ HEXFET® PDP Switch family. It features a drain-source voltage rating of 200 V and continuous drain current of 62A with a maximum on-resistance of 26 mΩ. Packaged in a D2PAK (TO-263), this device is optimized for pdp plasma display sustain circuits, energy recovery, high voltage smps. The IRFS4227TRLPBF provides optimized for pdp sustain, energy recovery and pass switch apps, along with fully characterized avalanche performance and industry-standard packaging for ease of design and manufacturing.

The IRFS4227TRLPBF operates as an N-channel enhancement-mode MOSFET. When a positive gate-source voltage exceeding the threshold (3.0 – 5.0 V) is applied, an N-type inversion layer forms in the P-type body region, creating a conductive channel between drain and source. At VGS=10V, the device reaches full enhancement, providing its rated on-resistance of 26 mΩ. The HEXFET® PDP Switch cell geometry balances switching speed with conduction losses. With VGS=0V, the device blocks up to 200 V across the drain-source junction with minimal leakage. The intrinsic body diode provides reverse conduction capability, essential for inductive load applications such as motor drives and power supply converters.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Drain; primary thermal path
  • PDP plasma display sustain circuits, energy recovery, high voltage SMPS
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Power management systems
  • Industrial power systems
  • Load switching applications
Model VDS (V) ID (A) RDS(on) Max Package
Check distributor — — — —
