IRFZ24NPBF

IRFZ24NPBF - 55V N-Channel 5th Gen HEXFET Power MOSFET, 70 mΩ RDS(on), TO-220AB

11221

Effective Inventory
Go to Inquiry

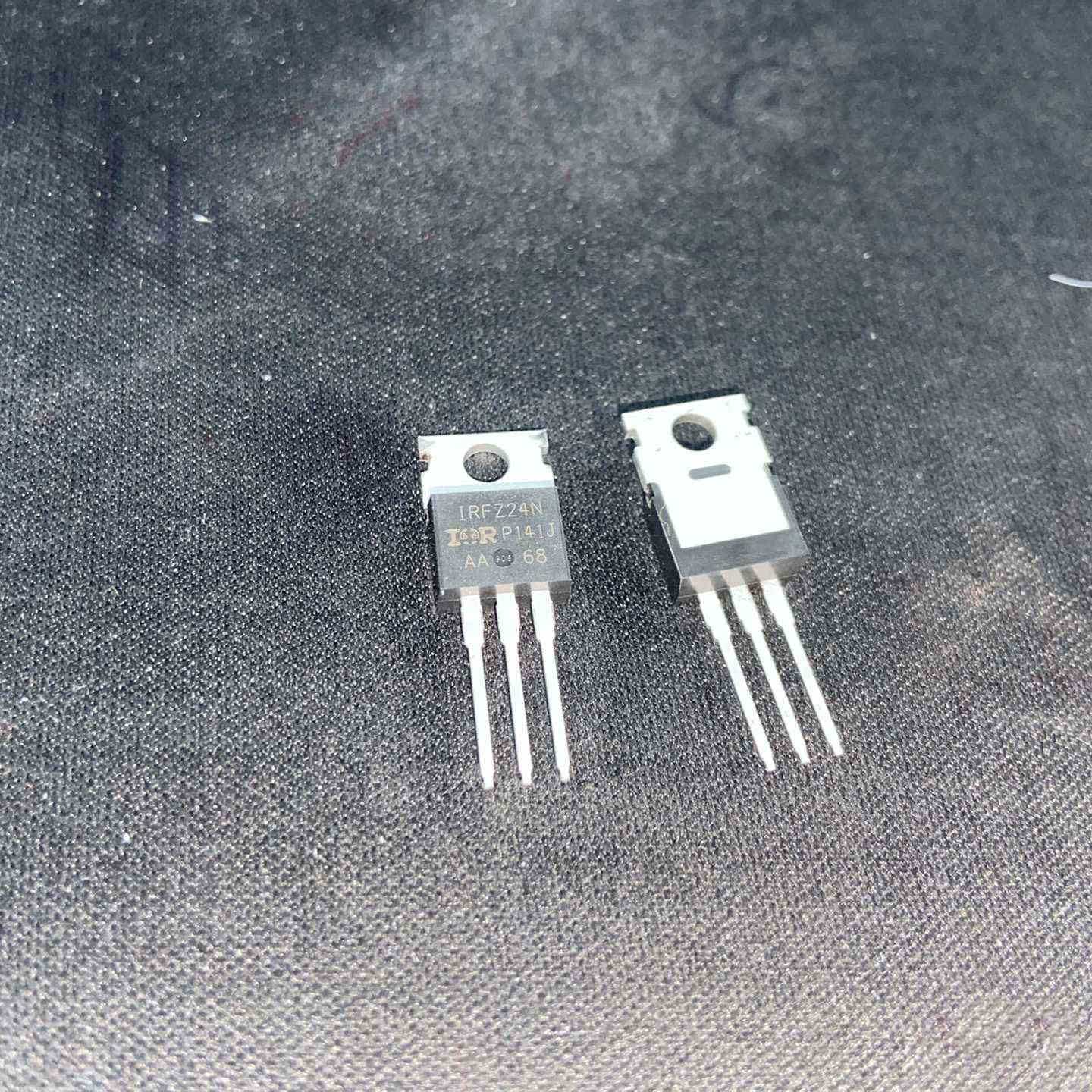

Image for reference only

Manufacturer Part：

IRFZ24NPBF

Package：

TO-220AB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFZ24NPBF is a 55V N-Channel 5th Gen HEXFET Power MOSFET from Infineon Technologies (formerly International Rectifier), part of the 5th Generation HEXFET® product family. This device combines optimized silicon processing with industry-standard packaging to deliver reliable performance for demanding power electronics applications. The IRFZ24NPBF provides a well-balanced combination of voltage rating, current handling, and on-resistance, making it suitable for a wide range of power conversion and switching applications.

Manufactured using advanced power MOSFET technology, the IRFZ24NPBF features a rugged design with fully characterized avalanche performance and dynamic dv/dt capability. The device is available in a TO-220AB package, offering proven thermal performance and board-level reliability for volume production environments.

Key Specifications

Drain-Source Voltage (VDS) 55 V
Continuous Drain Current (ID @ 25°C) 17A
Pulsed Drain Current (IDM) 68A
On-Resistance (RDS(on) max @ VGS=10V) 70 mΩ
Gate Threshold Voltage (VGS(th)) 2.0 – 4.0 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg) 20 nC (max)
Input Capacitance (Ciss) 370 pF
Power Dissipation (PD) 45 W
Operating Junction Temperature -55 to +175 °C
Package TO-220AB

Features

  • 55 V drain-source voltage rating
  • Advanced 5th Generation HEXFET®
  • Advanced process technology, dynamic dv/dt rating
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature (where applicable)
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-220AB package

Applications

  • DC motors, inverters, SMPS, lighting, load switches
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Power management systems
  • Industrial power systems
  • Load switching applications

The IRFZ24NPBF is an N-channel enhancement mode power MOSFET from Infineon Technologies’ 5th Generation HEXFET® family. It features a drain-source voltage rating of 55 V and continuous drain current of 17A with a maximum on-resistance of 70 mΩ. Packaged in a TO-220AB, this device is optimized for dc motors, inverters, smps, lighting, load switches. The IRFZ24NPBF provides advanced process technology, dynamic dv/dt rating, along with fully characterized avalanche performance and industry-standard packaging for ease of design and manufacturing.

The IRFZ24NPBF operates as an N-channel enhancement-mode MOSFET. When a positive gate-source voltage exceeding the threshold (2.0 – 4.0 V) is applied, an N-type inversion layer forms in the P-type body region, creating a conductive channel between drain and source. At VGS=10V, the device reaches full enhancement, providing its rated on-resistance of 70 mΩ. The 5th Generation HEXFET® cell geometry balances switching speed with conduction losses. With VGS=0V, the device blocks up to 55 V across the drain-source junction with minimal leakage. The intrinsic body diode provides reverse conduction capability, essential for inductive load applications such as motor drives and power supply converters.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Drain; primary thermal path
  • DC motors, inverters, SMPS, lighting, load switches
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Power management systems
  • Industrial power systems
  • Load switching applications
Model VDS (V) ID (A) RDS(on) Max Package
Check distributor — — — —
