IRLB3034PBF

IRLB3034PBF - 40V N-Channel StrongIRFET Power MOSFET (Logic Level), 1.7 mΩ (max) @ 10V; 2.0 mΩ @ 4.5V RDS(on), TO-220AB

9724

Effective Inventory
Go to Inquiry

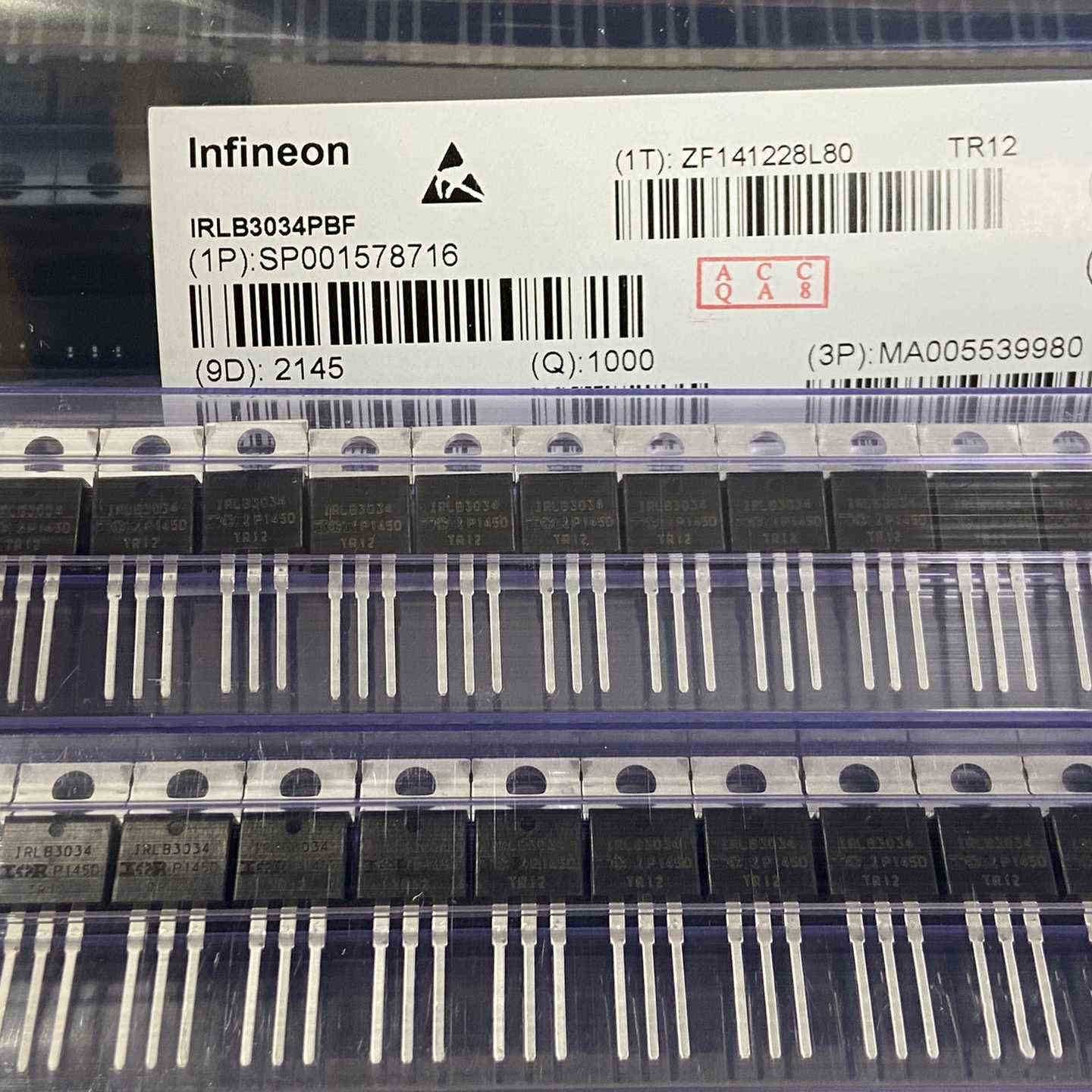

Image for reference only

Manufacturer Part：

IRLB3034PBF

Package：

TO-220AB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRLB3034PBF is a 40V N-Channel StrongIRFET Power MOSFET (Logic Level) from Infineon Technologies (formerly International Rectifier), part of the HEXFET® StrongIRFET™ product family. This device combines optimized silicon processing with industry-standard packaging to deliver reliable performance for demanding power electronics applications. The IRLB3034PBF provides a well-balanced combination of voltage rating, current handling, and on-resistance, making it suitable for a wide range of power conversion and switching applications.

Manufactured using advanced power MOSFET technology, the IRLB3034PBF features a rugged design with fully characterized avalanche performance and dynamic dv/dt capability. The device is available in a TO-220AB package, offering proven thermal performance and board-level reliability for volume production environments.

Key Specifications

Drain-Source Voltage (VDS) 40 V
Continuous Drain Current (ID @ 25°C) 195A (pkg limit) / 343A (Si limit)
Pulsed Drain Current (IDM) 1372A
On-Resistance (RDS(on) max @ VGS=10V) 1.7 mΩ (max) @ 10V; 2.0 mΩ @ 4.5V
Gate Threshold Voltage (VGS(th)) 1.0 – 2.5 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg) 108 nC (typ) @ 4.5V
Input Capacitance (Ciss) 10315 pF
Power Dissipation (PD) 375 W
Operating Junction Temperature -55 to +175 °C
Package TO-220AB

Features

  • 40 V drain-source voltage rating
  • Advanced HEXFET® StrongIRFET™
  • Optimized logic level drive, excellent R*Q figure of merit
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature (where applicable)
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-220AB package

Applications

  • DC motor drives, SMPS synchronous rectification, UPS, high speed power switching
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Power management systems
  • Industrial power systems
  • Load switching applications

The IRLB3034PBF is an N-channel enhancement mode power MOSFET from Infineon Technologies’ HEXFET® StrongIRFET™ family. It features a drain-source voltage rating of 40 V and continuous drain current of 195A (pkg limit) / 343A (Si limit) with a maximum on-resistance of 1.7 mΩ (max) @ 10V; 2.0 mΩ @ 4.5V. Packaged in a TO-220AB, this device is optimized for dc motor drives, smps synchronous rectification, ups, high speed power switching. The IRLB3034PBF provides optimized logic level drive, excellent r*q figure of merit, along with fully characterized avalanche performance and industry-standard packaging for ease of design and manufacturing.

The IRLB3034PBF operates as an N-channel enhancement-mode MOSFET. When a positive gate-source voltage exceeding the threshold (1.0 – 2.5 V) is applied, an N-type inversion layer forms in the P-type body region, creating a conductive channel between drain and source. At VGS=10V, the device reaches full enhancement, providing its rated on-resistance of 1.7 mΩ (max) @ 10V; 2.0 mΩ @ 4.5V. The HEXFET® StrongIRFET™ cell geometry balances switching speed with conduction losses. With VGS=0V, the device blocks up to 40 V across the drain-source junction with minimal leakage. The intrinsic body diode provides reverse conduction capability, essential for inductive load applications such as motor drives and power supply converters.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Drain; primary thermal path
  • DC motor drives, SMPS synchronous rectification, UPS, high speed power switching
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Power management systems
  • Industrial power systems
  • Load switching applications
Model VDS (V) ID (A) RDS(on) Max Package
Check distributor — — — —
