IRLZ34NPBF

IRLZ34NPBF - 55V N-Channel HEXFET Power MOSFET (Logic Level), 35 mΩ @ 10V; 60 mΩ @ 4.5V RDS(on), TO-220AB

10112

Effective Inventory
Go to Inquiry

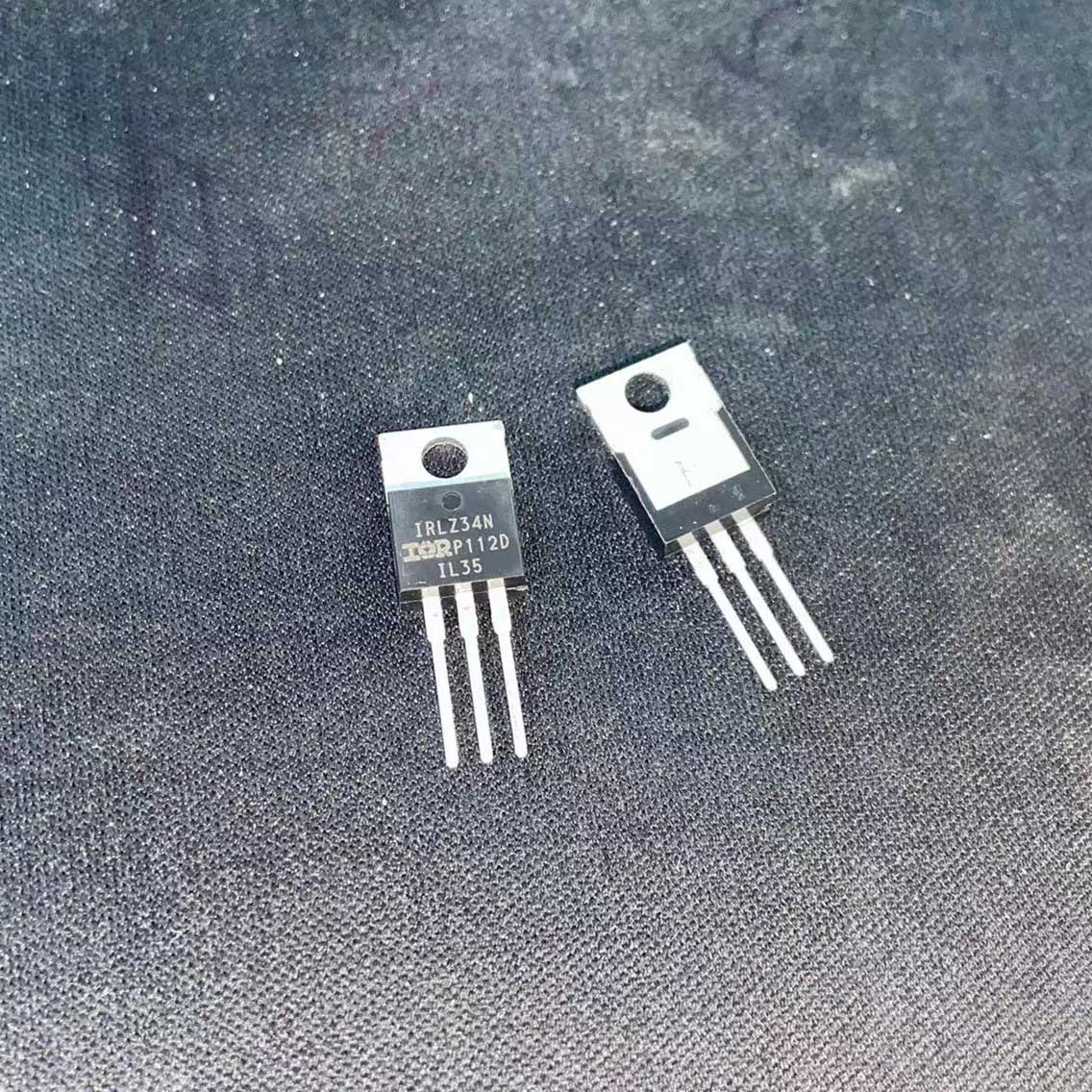

Image for reference only

Manufacturer Part：

IRLZ34NPBF

Package：

TO-220AB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRLZ34NPBF is a 55V N-Channel HEXFET Power MOSFET (Logic Level) from Infineon Technologies (formerly International Rectifier), part of the HEXFET® Logic Level product family. This device combines optimized silicon processing with industry-standard packaging to deliver reliable performance for demanding power electronics applications. The IRLZ34NPBF provides a well-balanced combination of voltage rating, current handling, and on-resistance, making it suitable for a wide range of power conversion and switching applications.

Manufactured using advanced power MOSFET technology, the IRLZ34NPBF features a rugged design with fully characterized avalanche performance and dynamic dv/dt capability. The device is available in a TO-220AB package, offering proven thermal performance and board-level reliability for volume production environments.

Key Specifications

Drain-Source Voltage (VDS) 55 V
Continuous Drain Current (ID @ 25°C) 30A
Pulsed Drain Current (IDM) 110A
On-Resistance (RDS(on) max @ VGS=10V) 35 mΩ @ 10V; 60 mΩ @ 4.5V
Gate Threshold Voltage (VGS(th)) 1.0 – 2.0 V
Gate-Source Voltage (VGS) ±16 V
Total Gate Charge (Qg) 25 nC (max) @ 5V
Input Capacitance (Ciss) 880 pF
Power Dissipation (PD) 68 W
Operating Junction Temperature -55 to +175 °C
Package TO-220AB

Features

  • 55 V drain-source voltage rating
  • Advanced HEXFET® Logic Level
  • Logic level drive, low gate charge, fast switching
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature (where applicable)
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-220AB package

Applications

  • DC motors, inverters, SMPS, lighting, battery powered applications
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Power management systems
  • Industrial power systems
  • Load switching applications

The IRLZ34NPBF is an N-channel enhancement mode power MOSFET from Infineon Technologies’ HEXFET® Logic Level family. It features a drain-source voltage rating of 55 V and continuous drain current of 30A with a maximum on-resistance of 35 mΩ @ 10V; 60 mΩ @ 4.5V. Packaged in a TO-220AB, this device is optimized for dc motors, inverters, smps, lighting, battery powered applications. The IRLZ34NPBF provides logic level drive, low gate charge, fast switching, along with fully characterized avalanche performance and industry-standard packaging for ease of design and manufacturing.

The IRLZ34NPBF operates as an N-channel enhancement-mode MOSFET. When a positive gate-source voltage exceeding the threshold (1.0 – 2.0 V) is applied, an N-type inversion layer forms in the P-type body region, creating a conductive channel between drain and source. At VGS=10V, the device reaches full enhancement, providing its rated on-resistance of 35 mΩ @ 10V; 60 mΩ @ 4.5V. The HEXFET® Logic Level cell geometry balances switching speed with conduction losses. With VGS=0V, the device blocks up to 55 V across the drain-source junction with minimal leakage. The intrinsic body diode provides reverse conduction capability, essential for inductive load applications such as motor drives and power supply converters.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Drain; primary thermal path
  • DC motors, inverters, SMPS, lighting, battery powered applications
  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Power management systems
  • Industrial power systems
  • Load switching applications
Model VDS (V) ID (A) RDS(on) Max Package
Check distributor — — — —
