IS61LV25616AL-10TL

4Mb (256Kx16) high-speed SRAM, 3.3V, 10ns, byte ctrl, 44-TSOP II

7654

Effective Inventory
Go to Inquiry

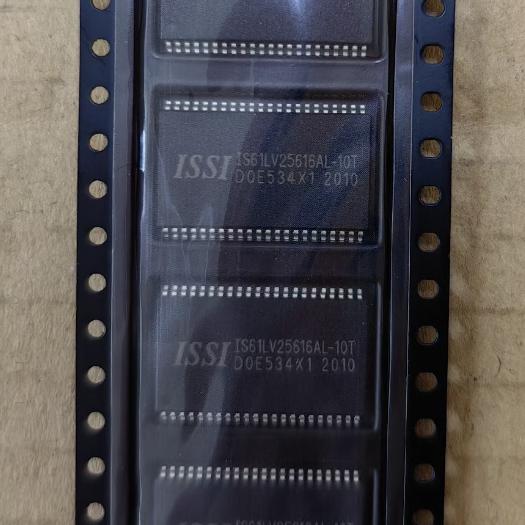

Image for reference only

Manufacturer Part：

IS61LV25616AL-10TL

Package：

44-pin TSOP II

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

LY62L12816ML-70LLI

LY62L51216ML-70LLI

CSS1604LS-LI

IS62WV102416GBLL-45TLI

W25Q40EWUXIE

IS62WV51216HBLL-45TLI

KLM8G1GETF-B041006

H26M41204HPR

Description

Product Overview

The IS61LV25616AL-10TL is a 4Mbit (256K x 16-bit) high-speed low-power asynchronous SRAM from ISSI operating at 3.3V with 10 ns access time. It features upper/lower byte control (LB#, UB#) and is packaged in a 44-pin TSOP II, making it ideal for high-performance cache and buffer applications.

Key Specifications

Density 4Mbit (256K x 16)
Supply Voltage 3.3V (2.7V to 3.6V)
Access Time 10 ns
Interface Parallel asynchronous
Byte Control LB#, UB#
Operating Current ~80 mA
Operating Temp -40°C to +85°C
Package 44-pin TSOP II
Part Status Active

Features

  • 4Mbit (256K x 16) high-speed SRAM
  • 10 ns access time — fastest in class
  • 3.3V low-power operation
  • Upper/lower byte control (LB#, UB#)
  • Fully static, no refresh or clocks
  • Industrial temperature range

Applications

  • High-speed cache memory
  • Networking and telecom buffer
  • Graphics and video frame buffer
  • DSP and FPGA external SRAM

The IS61LV25616AL-10TL is a 4Mbit (256K x 16-bit) high-speed low-power asynchronous SRAM from ISSI operating at 3.3V with 10 ns access time. The fast 10ns access makes it ideal for cache and high-performance buffer applications. Upper/lower byte control via LB# and UB# enables flexible 8-bit or 16-bit bus access. The 44-pin TSOP II package is widely supported in embedded and networking designs.

Fully static asynchronous SRAM with 10ns access time. Read: CE# low, OE# low — data appears on DQ after 10ns. Write: CE# low, WE# low with byte select via LB#/UB#. The 10ns speed supports 100 MHz bus operation, suitable for high-performance cache and networking buffer applications.

Pin Group Interface Function
A0-A17 Input 18-bit address inputs
DQ0-DQ7 I/O Lower byte data
DQ8-DQ15 I/O Upper byte data
CE#, OE#, WE# Input Control signals
LB#, UB# Input Byte enable
  • FPGA/CPU L2 cache memory
  • Networking packet buffer at 100MHz
  • High-speed DSP external SRAM
Manufacturer Part Number Package Notes
ISSI IS61WV51216EDBLL-10TLI TSOP 8Mbit 10ns upgrade
Cypress CY7C1041CV33-10ZSXI TSOP 4Mbit 10ns alternative
