Home > Integrated Circuits ICs > IS61WV25616BLL-10TLI

IS61WV25616BLL-10TLI

4Mbit async SRAM, 256Kx16, 10ns, 3.3V, 44-TSOP-II Industrial

7802

Effective Inventory
Go to Inquiry

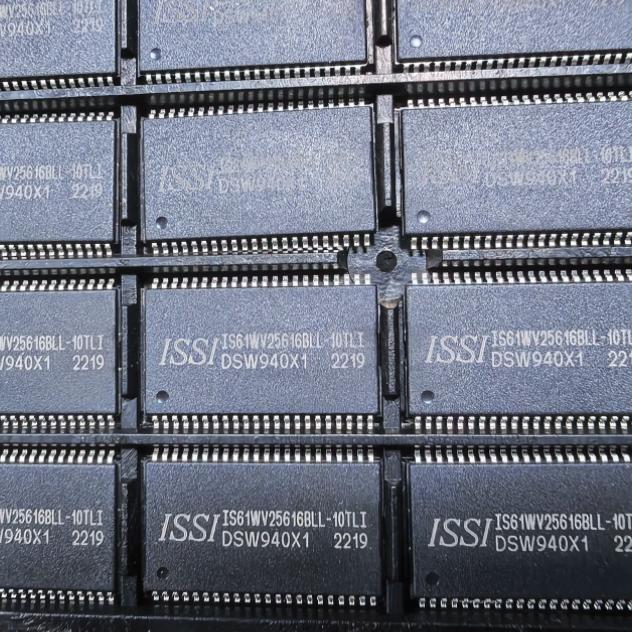

Image for reference only

Manufacturer Part：

IS61WV25616BLL-10TLI

Package：

44-TSOP II

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TJA1043TK/1

BSZ075N08NS5

BSC040N10NS5

SN74LVC1G11DCKR

W632GG6MB-12

W9412G6KH-5

W25Q16JWSNIQ

W25Q32JWBYIQ

Description

Product Overview

The IS61WV25616BLL-10TLI is a 4Mbit (256Kx16) async SRAM from ISSI with 10ns access. Low-power CMOS at 3.3V, 44-TSOP-II, industrial. Standard version without ECC.

Key Specifications

Manufacturer ISSI
Density 4Mbit (256K x 16)
Access Time 10 ns
Supply Voltage 2.4V to 3.6V
Supply Current 60 mA max
Temperature -40°C to +85°C
Package 44-TSOP II

Features

  • 10ns high-speed access
  • Fully static – no refresh
  • Byte write via UB#/LB#
  • 3.3V low-power CMOS
  • Three chip enables for expansion

Applications

  • Processor cache memory
  • Networking lookup tables
  • FPGA/DSP external memory
  • Industrial control buffers

4Mbit async SRAM, 256Kx16, 10ns, 3.3V, 44-TSOP-II Industrial.

Static RAM using 6T memory cells. No refresh or clock required. Address selects cell; /CE enables; /OE gates output; /WE controls write.

Pin Name Function
A0-A17 Addr 18-bit Address
DQ0-DQ15 Data 16-bit Data
  • Processor cache memory
  • Networking lookup tables
  • FPGA/DSP external memory
  • Industrial control buffers
Part Notes
IS61WV25616EDBLL-10TLI ECC version
