ISL22414WFU10Z-TK

Digital potentiometer, 10kΩ, 256 taps, SPI interface, non-volatile, 10-MSOP

3421

Effective Inventory
Go to Inquiry

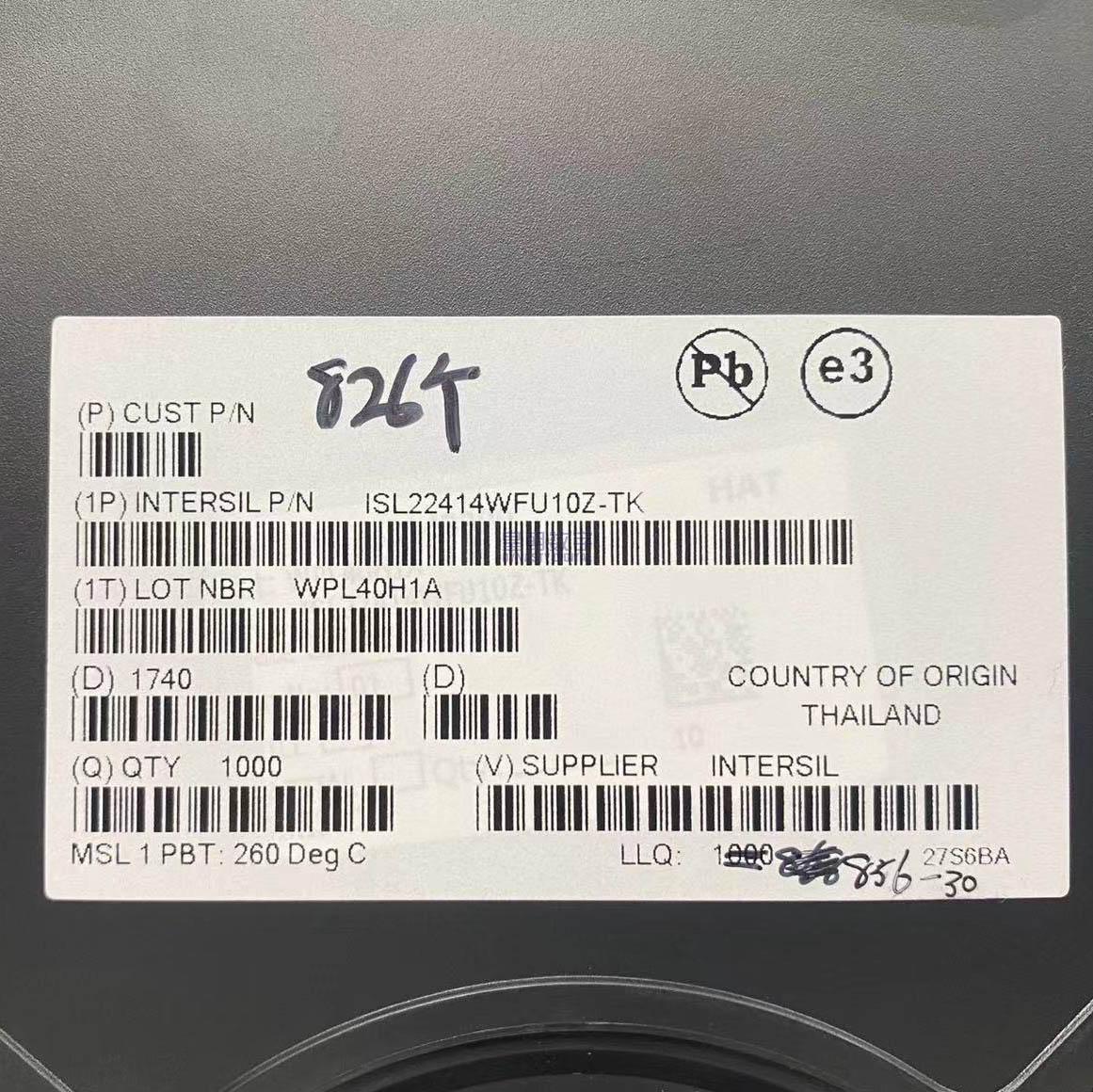

Image for reference only

Manufacturer Part：

ISL22414WFU10Z-TK

Package：

10-MSOP / 10-TFSOP (3.0 x 3.0 x 1.1 mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The ISL22414WFU10Z-TK is a single digitally controlled potentiometer (DCP) with 256 taps and 10kΩ resistance, manufactured by Renesas Electronics (formerly Intersil). Part of the XDCP™ (Digitally Controlled Potentiometer) family, this device integrates a DCP, control logic, and non-volatile memory on a monolithic CMOS integrated circuit. It features an SPI serial interface for write/read capability, daisy chain configuration support, and shutdown mode. The 14 general-purpose non-volatile registers can be used for storing multiple wiper positions or lookup table data. The ISL22414 supports dual supply operation for bipolar range applications and is housed in a compact 10-lead MSOP package.

Key Specifications

Manufacturer Renesas Electronics (Intersil)
Product Type Digital Potentiometer (DCP)
Number of Circuits 1
Resistance Value 10 kΩ
Number of Taps 256 positions
Taper Type Linear
Interface SPI (Serial Peripheral Interface)
Supply Voltage ±2.25V to ±5.5V (dual) / 2.25V to 5.5V (single)
Memory Type Non-volatile EEPROM
Wiper Resistance 70 Ω (typical)
Standby Current < 2.5 µA (max)
Endurance 1,000,000 writes per bit
Data Retention 50 years @ 55°C
Temperature Coefficient 150 ppm/°C (typical)
Tolerance ±20%
Operating Temperature -40°C to +125°C
Package 10-MSOP (TFSOP-10)
Packaging Tape & Reel (1000 units/reel)

Features

  • 256 resistor taps for fine resolution adjustment
  • SPI serial interface with write/read capability
  • Daisy chain configuration for multi-device systems
  • Shutdown mode for power conservation
  • Non-volatile EEPROM storage of wiper position
  • 14 general-purpose non-volatile registers
  • High reliability: 1M endurance cycles, 50-year retention
  • Dual supply support for bipolar range operation
  • Low standby current: < 2.5µA maximum
  • Wiper resistance: 70Ω typical at 1mA

Applications

  • Parameter adjustment and trimming in industrial equipment
  • Control systems and calibration circuits
  • Signal processing and gain control
  • Display brightness and contrast control
  • Audio volume control and tone adjustment
  • Power supply voltage trimming
  • Portable and battery-powered equipment

The ISL22414WFU10Z-TK is a high-performance single digitally controlled potentiometer (DCP) from Renesas Electronics (formerly Intersil). Part of the XDCP™ family, this device integrates a 256-tap resistor array, control logic, SPI interface, and non-volatile EEPROM memory on a single CMOS chip. The DCP can be used as a three-terminal potentiometer or as a two-terminal variable resistor in a wide variety of applications including control, parameter adjustments, and signal processing. The SPI serial interface supports both write and read operations and features daisy chain capability for multi-device configurations. A shutdown mode reduces power consumption when the device is not in use. The non-volatile EEPROM stores the wiper position and 14 general-purpose registers, retaining data through power cycles. With high endurance (1,000,000 writes per bit) and long data retention (50 years at 55°C), the ISL22414 provides reliable operation in demanding applications. The device supports both single and dual supply operation, making it suitable for bipolar signal applications. Packaged in a space-saving 10-lead MSOP package in tape and reel format, the ISL22414WFU10Z-TK is ideal for portable equipment, industrial controls, display systems, audio equipment, and power supply trimming applications.

The ISL22414WFU10Z-TK operates as a digitally controlled potentiometer with SPI interface and non-volatile memory. Its internal architecture consists of: 1) Resistor Array: A series string of 255 equal-value resistors forms the 10kΩ potentiometer element. Between each resistor and at the endpoints, electronic switches connect the wiper terminal (VW) to the appropriate tap point. The resistor array has terminals RH (high end) and RL (low end), equivalent to a mechanical potentiometer’s fixed terminals. 2) Wiper Control Logic: The wiper position is controlled by the Wiper Register (WR), which is accessed through the SPI interface. When the wiper changes tap positions, the switches operate in a ‘make before break’ mode to ensure continuous connection during transitions. The Initial Value Register (IVR) stores the power-up wiper position in non-volatile memory. 3) SPI Interface and Control Logic: An SPI-compatible serial interface provides communication with the host system. The interface supports both read and write operations to the wiper register, IVR, and general-purpose registers. Daisy chain configuration allows multiple ISL22414 devices to share the same SPI bus. Shutdown mode disables the analog portion while maintaining register contents. 4) Non-Volatile Memory: EEPROM-based non-volatile memory stores the wiper position (IVR) and 14 general-purpose registers. Data is retained for 50 years at 55°C and supports 1,000,000 write cycles per bit, ensuring long product lifetime even with frequent adjustments.

Pin Name Type Function
1 CS Input SPI chip select (active low)
2 SCK Input SPI serial clock input
3 SDI Input SPI serial data input
4 VCC Power Positive supply voltage (2.25V to 5.5V)
5 RH Analog Potentiometer high terminal
6 VW Analog Potentiometer wiper terminal
7 RL Analog Potentiometer low terminal
8 V- Power Negative supply (dual supply) / ground (single supply)
9 SDO Output SPI serial data output
10 SHDN Input Shutdown input (active low)
  • Industrial control system parameter trimming and calibration
  • Programmable gain amplifiers and signal conditioning circuits
  • Display brightness, contrast, and color adjustment
  • Audio volume control and tone adjustment circuits
  • Power supply output voltage trimming and margining
  • Sensor calibration and offset adjustment
  • Portable and battery-powered electronic equipment
Manufacturer Part Number Package Notes
Renesas ISL22414UFU10Z-TK 10-MSOP 50kΩ resistance version
Renesas ISL22414TFU10Z-TK 10-MSOP 100kΩ resistance version
Analog Devices AD5162BRMZ10-RL7 MSOP-10 256-tap 10kΩ DCP, SPI
Microchip MCP4151-103E/MS MSOP-10 256-tap 10kΩ, SPI interface
Texas Instruments TPL0102-10MRSER VSSOP-10 Dual 256-tap 10kΩ DCP
