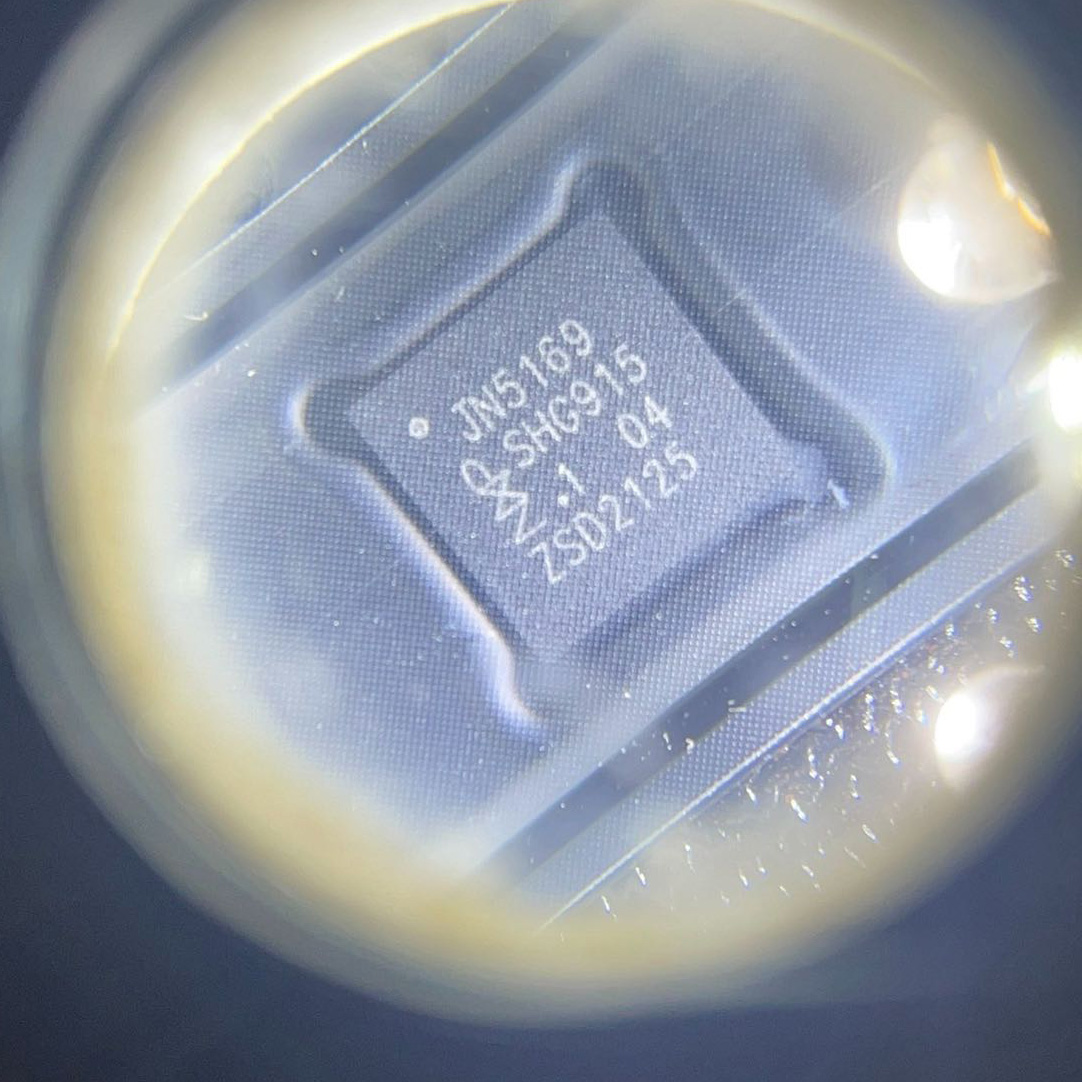

JN5169

The JN5169 from NXP Semiconductors is an ultra-low-power, high-performance wireless microcontroller designed for Zigbee and IEEE 802.15.4 applications. At its core is a 32-bit RISC processor featuring variable-width instructions, a multi-stage instruction pipeline, and programmable clock speed for optimal power/performance trade-offs. The device integrates 512 KB of embedded Flash memory, 32 KB of RAM, and 4 KB of EEPROM, providing ample space for application code and data storage without requiring external memory components. This high level of integration enables OTA (Over-the-Air) firmware upgrades, a critical feature for deployed IoT devices. The integrated IEEE 802.15.4 compliant 2.4 GHz transceiver delivers excellent RF performance with -96 dBm typical receiver sensitivity and up to +10 dBm transmit power. The JN5169 achieves exceptionally low power consumption, with only 13 mA in receive mode and 0.7 µA in sleep timer mode, enabling multi-year battery operation from coin cells. Rich peripheral options include two UARTs, I2C bus, SPI bus, a 6-channel ADC with battery monitor and temperature sensor, up to 5 PWM outputs, and up to 40 digital I/O pins. A hardware AES-128 coprocessor accelerates security operations for Zigbee’s security requirements. Available in a compact 40-pin HVQFN package (5x5mm), the JN5169 is ideal for smart home, smart energy, building automation, and other IoT wireless applications.

The JN5169 operates as a fully integrated wireless microcontroller combining a 32-bit CPU, memory, peripherals, and RF transceiver. Its architecture includes: 1) 32-bit RISC CPU Core: The processor executes variable-width instructions from an internal multi-stage pipeline, achieving high code density and efficient execution. Clock speed is software-programmable, allowing dynamic power/performance optimization. The CPU includes hardware multiply and other enhanced instructions for DSP-like operations. 2) Memory Subsystem: 512 KB of embedded Flash stores program code and permanent data. 32 KB of RAM provides working memory for the application stack and heap. 4 KB of dedicated EEPROM stores non-volatile configuration data and network parameters. Memory can be accessed by the CPU or by DMA for efficient data movement. 3) IEEE 802.15.4 RF Transceiver: The 2.4 GHz RF transceiver supports the IEEE 802.15.4 standard with O-QPSK modulation at 250 kbps. The receiver uses a direct-conversion architecture with excellent sensitivity. The transmitter includes a programmable power amplifier with output levels from -30 dBm to +10 dBm. A hardware MAC accelerator handles time-critical MAC layer operations, reducing CPU loading. 4) Peripheral Subsystem: The JN5169 integrates a rich set of peripherals including two UARTs, an I2C bus interface, an SPI bus interface (master/slave), a 6-channel 10-bit ADC with temperature sensor and battery monitor, up to 5 PWM/timer units, and a large number of configurable digital I/O pins. The AES-128 hardware coprocessor provides fast cryptographic operations for Zigbee security. 5) Power Management: Multiple low-power modes are available, including deep sleep with RAM retention and sleep timer operation. The device can wake from sleep via timer, external interrupt, or RF activity detection, enabling ultra-low average power consumption for battery-operated devices.

• Zigbee Smart Energy metering and grid communication devices
• Zigbee 3.0 home automation sensors and actuators
• Connected lighting systems with Zigbee Light Link (ZLL)
• Smart thermostats and HVAC control devices
• Security system sensors and smart door locks
• Wireless sensor nodes for industrial monitoring
• Toys, gaming peripherals, and remote controls
• Energy harvesting self-powered wireless switches
