K4S161622H-UC60

16Mb SDRAM, 256K x 16bit x 4 banks, 166MHz, TSOP-54

5000

Effective Inventory

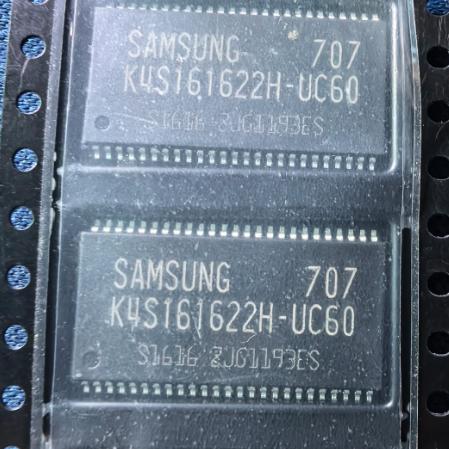

Image for reference only

Manufacturer Part：

K4S161622H-UC60

Package：

TSOP-54

Brand：

Samsung

Product Categories：

Integrated Circuits ICs

Other recommendations you may be interested in.

MSP430F5304IRGZR

Description

Product Overview

The K4S161622H-UC60 is a 16Mbit SDRAM from Samsung, organized as 256K x 16 bits per bank with 4 banks. The UC60 speed grade is 166MHz with 6ns access time. It operates from 3.3V supply with LVTTL compatible I/O, packaged in 54-pin TSOP II.

Key Specifications

Type	SDRAM
Capacity	16Mbit (256K x 16 x 4)
Speed	166MHz / 6ns
Voltage	3.3V
Package	54-pin TSOP II

Features

16Mbit SDRAM, 4 banks
166MHz operation
3.3V supply
LVTTL compatible
54-pin TSOP II

Applications

Small embedded systems
Communication equipment
Consumer electronics
Data buffers

Product Introduction:K4S161622H-UC60 Product Introduction

The K4S161622H-UC60 is a 16Mbit SDRAM from Samsung, organized as 256K x 16 bits per bank with 4 banks. The UC60 speed grade is 166MHz with 6ns access time. It operates from 3.3V supply with LVTTL compatible I/O, packaged in 54-pin TSOP II.

Working Principle:K4S161622H-UC60 Working Principle

Standard synchronous DRAM operation with all signals registered on clock rising edge. Multiplexed address bus, 4-bank architecture for interleaved access.

Pin Description:K4S161622H-UC60 Pin Definition and Functions

Pin Group	Name	Description
Data	DQ0-DQ15	16-bit data
Address	A0-A9	Address inputs
Bank	BA0, BA1	Bank select
Clock	CLK, CKE	Clock system
Control	CS#, RAS#, CAS#, WE#	Commands

Application Scenarios:In which products and applications isK4S161622H-UC60 used

Small embedded systems
Communication equipment
Consumer electronics
Data buffers

Alternative Models:What chips are recommended as replacements for K4S161622H-UC60

Manufacturer	Part Number	Description
ISSI	IS42S16100E-6TLI	16Mb SDRAM
Micron	MT48LC1M16A1	16Mb SDRAM
