KBP206

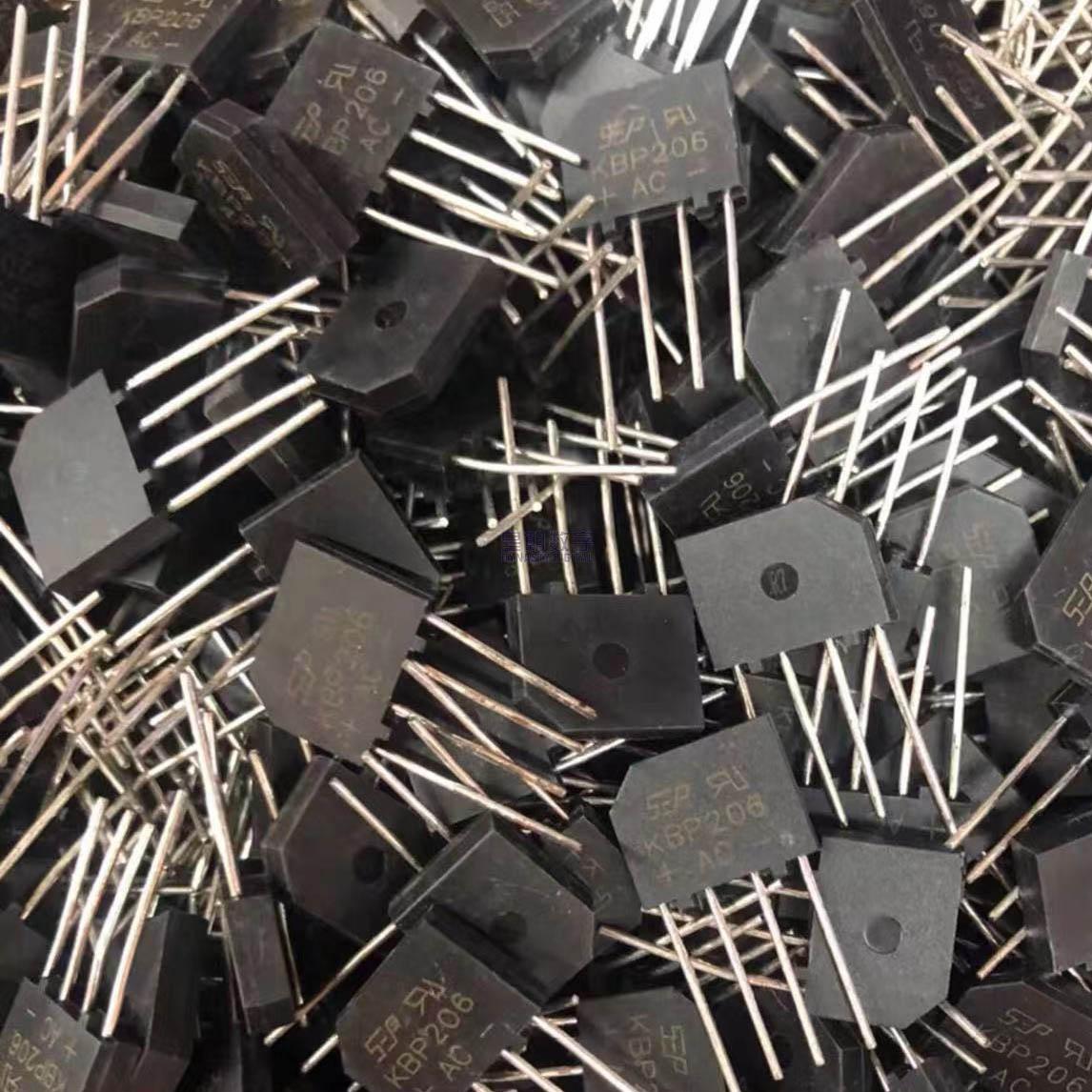

2A 600V single-phase bridge rectifier, through-hole KBP package

11254

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

KBP206

Package：

KBP (Through-hole mini bridge, 4 leads)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MT5016A

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

M65847AFP

KBPC5010

Description

Product Overview

The KBP206 is a 2A single-phase bridge rectifier with 600V reverse voltage rating, packaged in a compact KBP through-hole package. This silicon bridge rectifier consists of four glass-passivated diodes arranged in a full-wave bridge configuration, converting AC input voltage to pulsating DC output. With its 2A average forward current rating and 600V peak reverse voltage rating, the KBP206 is widely used in low-to-medium power AC-DC power supply applications. The device features low forward voltage drop, high surge current capability, and reliable operation over a wide temperature range. The KBP package provides easy through-hole mounting and good thermal performance for convection-cooled designs.

Key Specifications

Product Type Single-Phase Bridge Rectifier
Configuration Full-Wave Bridge (4 diodes)
Average Forward Current (Io) 2 A
Peak Reverse Voltage (VRRM) 600 V
RMS Reverse Voltage (VRMS) 420 V
DC Blocking Voltage (VDC) 600 V
Peak Surge Current (IFSM) 50 A (8.3 ms half-sine)
Forward Voltage per Element 1.1 V (max, at 1A per leg)
Reverse Leakage Current 5 µA (max, at 25°C)
Operating Junction Temperature -55°C to +150°C
Storage Temperature -55°C to +150°C
Mounting Type Through-Hole
Package KBP (Mini Bridge Package)
Terminals 4 leads (2 AC, +DC, -DC)
Approval RoHS compliant, lead-free

Features

  • Full-wave bridge rectifier configuration
  • 2A average forward current rating
  • 600V peak reverse voltage rating
  • Glass-passivated junction construction
  • High surge current capability: 50A
  • Low forward voltage drop for high efficiency
  • Low reverse leakage current
  • Reliable through-hole KBP package
  • Wide operating temperature range: -55°C to +150°C
  • Lead-free and RoHS compliant
  • Suitable for wave soldering assembly

Applications

  • AC-DC power supplies and adapters
  • Switch-mode power supply input rectification
  • Consumer electronics power supplies
  • Battery chargers and power adapters
  • LED driver power input stages
  • Household appliances and white goods
  • Industrial control power supplies
  • General purpose rectification circuits

The KBP206 is a general-purpose single-phase bridge rectifier rated at 2 amperes average forward current with 600V peak reverse voltage capability. This device incorporates four silicon rectifier diodes with glass-passivated junctions arranged in a full-wave bridge configuration within a compact KBP through-hole package. The KBP206 provides full-wave rectification of AC input voltage, converting alternating current into pulsating direct current for use in power supply and rectification circuits. Glass-passivated junction technology provides stable electrical characteristics, low reverse leakage current, and high reliability over the device lifetime. The bridge can withstand high transient surge currents up to 50A, making it suitable for applications with high inrush currents at power-on. The through-hole KBP package allows easy PCB assembly via wave soldering and provides adequate thermal dissipation for convection-cooled designs up to the 2A current rating. With its 600V voltage rating and compact form factor, the KBP206 is widely used in low-power AC-DC power supplies, battery chargers, consumer electronics, LED drivers, household appliances, and general purpose rectification applications where cost-effective through-hole rectification is needed.

The KBP206 operates as a full-wave single-phase bridge rectifier using four diode junctions. Its working principle is: 1) Bridge Configuration: Four diodes are arranged in a Wheatstone bridge configuration with AC input terminals and DC output terminals. The diodes are oriented such that during both the positive and negative half-cycles of the AC input, current flows through the load in the same direction. 2) Positive Half-Cycle Operation: During the positive half-cycle of the AC input (AC1 positive relative to AC2), two diodes conduct: the diode from AC1 to the positive DC output, and the diode from the negative DC output to AC2. Current flows from AC1 through the first diode, through the load from +DC to -DC, through the second diode, and back to AC2. 3) Negative Half-Cycle Operation: During the negative half-cycle (AC2 positive relative to AC1), the other two diodes conduct: the diode from AC2 to the positive DC output, and the diode from the negative DC output to AC1. Again, current flows through the load from +DC to -DC, maintaining the same polarity. 4) Output Characteristics: The output is full-wave rectified DC with ripple at twice the AC input frequency. The magnitude of the ripple depends on the load current and the value of any filter capacitor connected across the DC output. Each diode conducts for approximately half the AC cycle. The total forward voltage drop is approximately 2 x Vf (two diodes conducting at any time).

Terminal Label Function Description
1 ~ AC Input 1 AC line input terminal 1
2 + DC Output Positive Positive DC output terminal
3 ~ AC Input 2 AC line input terminal 2
4 – DC Output Negative Negative DC output terminal / ground
  • Low-power AC-DC switching power supply input stages
  • Linear power supply rectifiers and battery chargers
  • Consumer electronics: TVs, set-top boxes, audio equipment
  • LED lighting driver input rectification
  • Household appliances: small kitchen appliances, power tools
  • Industrial control and automation power supplies
  • General-purpose full-wave rectification circuits
Manufacturer Part Number Voltage Package Notes
General Semi KBP204 400V KBP Lower voltage version
General Semi KBP208 800V KBP Higher voltage version
General Semi KBP210 1000V KBP Maximum voltage in series
Vishay KBPC106 600V KBPC 1A, larger package
Diodes Inc BR260S 600V SOP-4 2A, surface mount option
