KLM8G1GETF-B041006

8GB eMMC 5.1, V-NAND, HS400, 1.8/3.3V, integrated controller, FBGA-153

5678

Effective Inventory
Go to Inquiry

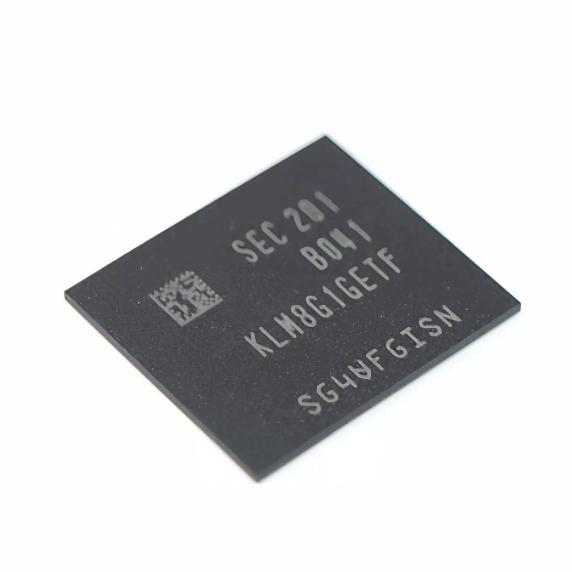

Image for reference only

Manufacturer Part：

KLM8G1GETF-B041006

Package：

FBGA-153 (11.5 x 13 mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

LY62L25716LL-55LLI

LY62L5128BRL-45SLI

LY625128SL-55LL

MDS5601URH

DL-6950N

DL-3900N

DL-165

W29N08GVSIAA

Description

Product Overview

The KLM8G1GETF-B041006 is an 8GB eMMC (embedded Multi-Media Card) from Samsung operating at 1.8V/3.3V I/O with eMMC 5.1 standard and HS400 mode support. It integrates Samsung’s V-NAND (3D NAND) Flash memory and an advanced controller in a 153-ball FBGA package, providing built-in ECC, wear leveling, and bad block management for reliable high-capacity storage.

Key Specifications

Density 8GB (64Gbit)
Standard eMMC 5.1
NAND Type V-NAND (3D TLC)
Supply Voltage VCC: 3.3V, VCCQ: 1.8V/3.3V
Interface eMMC (8-bit DAT bus)
Max Mode HS400 (400 MB/s)
Operating Temp -25°C to +85°C
Package FBGA-153 (11.5x13mm)
Part Status Active

Features

  • 8GB eMMC 5.1 with Samsung V-NAND
  • HS400 mode: 400 MB/s max throughput
  • 3D V-NAND for high density and reliability
  • Built-in ECC, wear leveling, bad block management
  • Command queuing and field firmware update
  • No external NAND controller needed

Applications

  • Smartphone and tablet main storage
  • Automotive navigation and infotainment
  • Industrial single-board computers
  • Consumer electronics OS + app storage

The KLM8G1GETF-B041006 is an 8GB eMMC 5.1 from Samsung integrating V-NAND (3D NAND) Flash and controller in a 153-ball FBGA package. HS400 mode provides up to 400 MB/s throughput. Samsung’s V-NAND technology delivers high density, improved endurance, and lower power compared to planar NAND. Built-in ECC, wear leveling, and bad block management simplify system design by eliminating the need for an external NAND controller.

The eMMC integrates Samsung V-NAND array and controller. V-NAND uses 3D stacked cell architecture for higher density and better endurance than planar NAND. The controller manages: (1) ECC — multi-bit error correction for TLC NAND, (2) Wear leveling — distributes writes across blocks, (3) Bad block management. HS400 DDR signaling on 8-bit DAT bus at 200 MHz achieves 400 MB/s peak. Command queuing improves random I/O performance.

Pin Group Interface Function
DAT0-DAT7 I/O 8-bit data bus
CMD I/O Command/response
CLK Input Clock from host
DS Output Data strobe (HS400)
RST_n Input Hardware reset
  • Smartphone/tablet 8GB main storage
  • Automotive navigation system
  • Industrial SBC (Raspberry Pi class) storage
  • Embedded Linux OS + rootfs
Manufacturer Part Number Package Notes
SK Hynix H28U6432FAMR FBGA-153 8GB eMMC alternative
Micron MTFC8GACQAM-4K-AIT FBGA-153 8GB eMMC alternative
Kioxia THGBMJG6C8BBAIJ FBGA-153 32GB larger alternative
