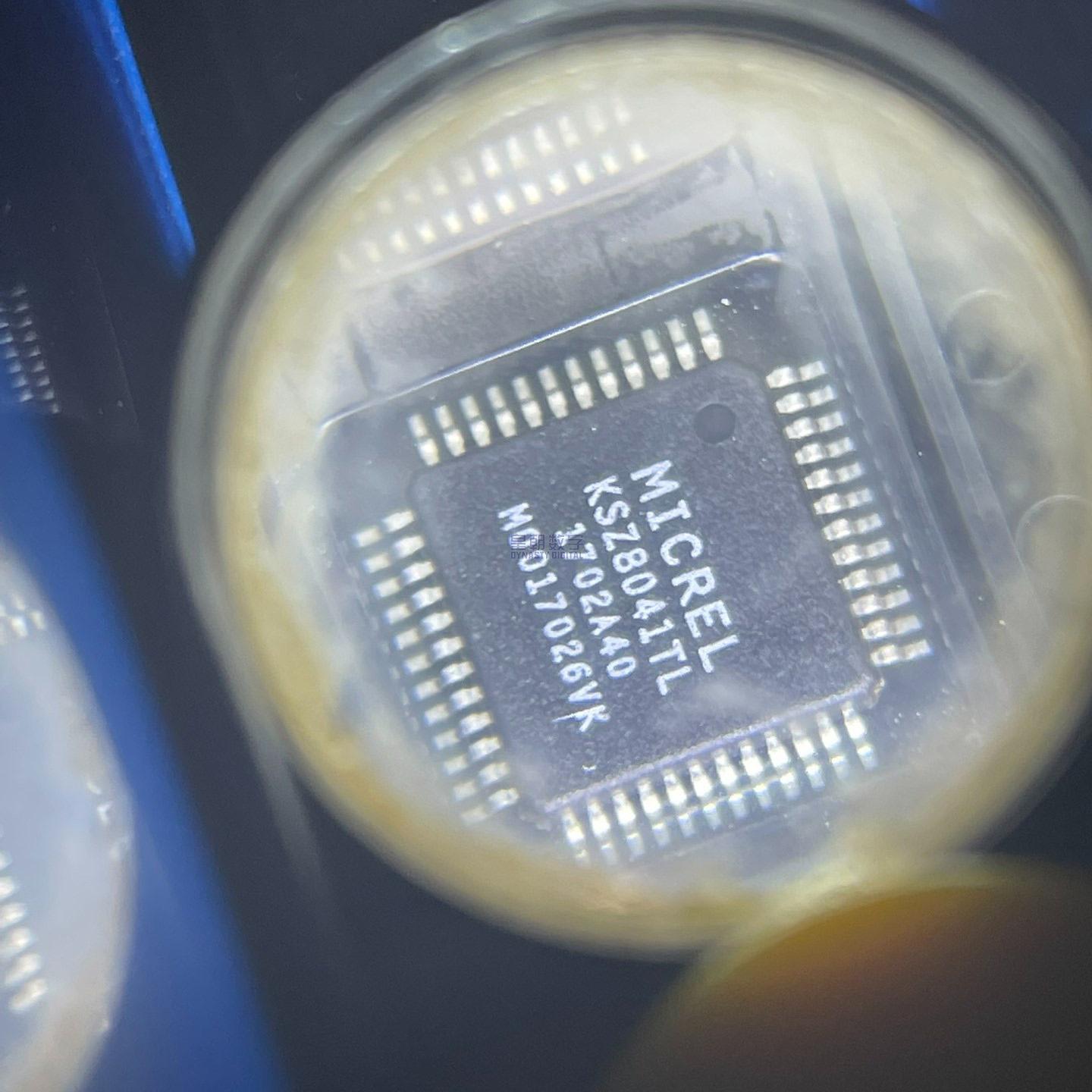

KSZ8041TL

The KSZ8041TL from Microchip Technology (formerly Micrel) is a highly integrated single-chip 10Base-T/100Base-TX Ethernet physical layer transceiver designed for applications requiring multiple PHY interface options. Building on the proven KSZ8041 architecture, the TL variant adds SMII (Serial MII) interface support in addition to MII and RMII, making it ideal for media converters, switches, and other networking equipment. HP Auto MDI/MDI-X provides automatic crossover detection and correction, eliminating the need for special crossover cables. The LinkMD® TDR-based cable diagnostic feature allows detection and location of cable faults including opens and shorts. With power consumption under 180mW and integrated 1.8V regulator allowing single 3.3V supply operation, the KSZ8041TL minimizes system power and component count. The device supports power-down mode and power-saving modes for energy-efficient operation. The MIIM management interface provides access to all IEEE standard PHY registers plus extended vendor-specific registers. Programmable LED outputs indicate link status, activity, speed, and duplex mode. An interrupt pin notifies the host system of link status changes and other events. Available in a 48-pin TQFP package, the KSZ8041TL offers the flexibility needed for a wide range of 10/100 Ethernet applications including media converters, network interface cards, IP phones, set-top boxes, industrial control, and networking infrastructure equipment.

The KSZ8041TL operates as a complete 10/100 Ethernet PHY with MII/RMII/SMII interface options. Its architectural blocks include: 1) Multi-Interface MAC Layer: The KSZ8041TL supports three MAC interface options configured via strap pins: MII (Media Independent Interface) with 4-bit wide transmit/receive data paths at 25MHz; RMII (Reduced MII) with 2-bit wide data paths using a 50MHz reference clock; and SMII (Serial MII) with a single-bit serial data path at 125MHz. This flexibility allows the same PHY chip to be used with different MAC controllers. 2) PCS (Physical Coding Sublayer): For 100Base-TX operation, the PCS performs 4B/5B encoding/decoding, scrambler/descrambler functions, and auto-negotiation. Auto-negotiation automatically detects and configures the best speed (10/100Mbps) and duplex (half/full) mode with the link partner per IEEE 802.3u Clause 28. 3) PMA (Physical Medium Attachment): The PMA handles the analog front-end including MLT-3 encoder/decoder for 100Base-TX and Manchester encoder/decoder for 10Base-T. The transmitter drives the differential output onto the twisted-pair cable via an external magnetics module. The receiver includes adaptive equalization to compensate for cable insertion loss, and clock/data recovery (CDR) circuitry to extract the clock and data from the incoming signal. 4) Auto MDI/MDI-X: HP Auto MDI/MDI-X technology automatically detects whether a straight-through or crossover cable is connected and swaps the transmit and receive pairs accordingly. This eliminates the need for crossover cables and reduces installation complexity. 5) Cable Diagnostics: LinkMD® technology uses Time Domain Reflectometry (TDR) to detect and locate cable faults such as open circuits and short circuits, enabling remote fault diagnosis without physical inspection of the cable.

• Ethernet media converters (fiber to copper, etc.)
• Network interface cards and LAN adapters
• IP phones, video phones, and VoIP endpoints
• IPTV set-top boxes and OTT streaming devices
• Network switches with PHY per port (via SMII)
• Printers, scanners, and multi-function peripherals
• Industrial networking and factory automation equipment
• Test and measurement instruments with Ethernet connectivity
