LM258DT

Dual Op-Amp, 3V-32V Single Supply, 1.1MHz GBW, SOIC-8

14532

Effective Inventory
Go to Inquiry

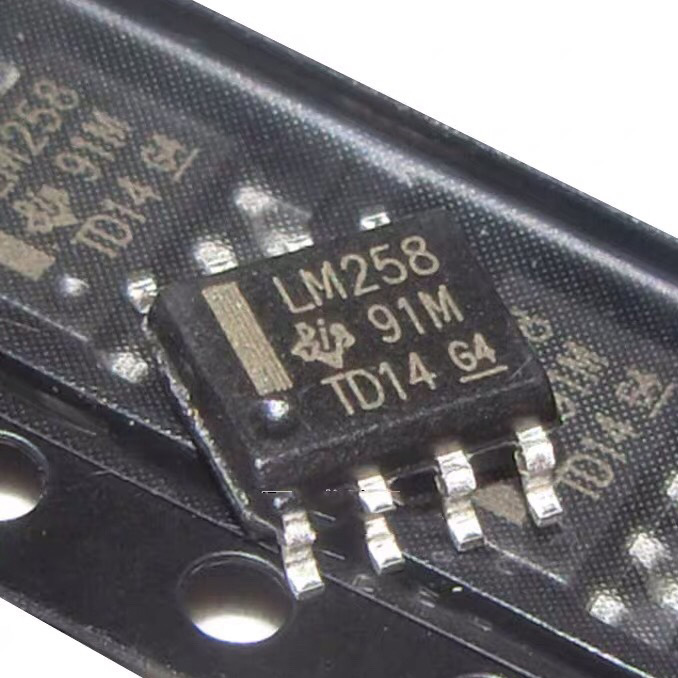

Image for reference only

Manufacturer Part：

LM258DT

Package：

SOIC-8, 4.9 x 3.9 x 1.5 mm

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The LM258DT is a dual operational amplifier from Texas Instruments LM158/LM258/LM358 family, featuring two independent, high-gain, internally frequency-compensated op-amps in an SOIC-8 surface-mount package. Optimized for single-supply operation from 3V to 32V, the input common-mode range extends down to ground, making it ideal for single-supply sensor interfaces, active filters, comparators, and buffer stages. With unity-gain bandwidth of 1.1MHz and 0.5mA per-channel quiescent current, the LM258 delivers reliable general-purpose performance at exceptional value for cost-sensitive industrial and consumer applications.

Key Specifications

Parameter Value
Manufacturer Texas Instruments
Part Number LM258DT
Product Category Operational Amplifiers
Number of Channels 2 (Dual)
Supply Voltage Range 3V to 32V single supply
Input Offset Voltage 2 mV typical
Input Bias Current 45 nA typical
Gain Bandwidth Product 1.1 MHz typical
Slew Rate 0.5 V/µs typical
Open-Loop Gain 100 dB typical
Package / Case SOIC-8
Operating Temperature 0°C to +70°C

Features

  • Two independent operational amplifiers in single package
  • Wide single-supply voltage range: 3V to 32V
  • Input common-mode voltage includes ground (0V)
  • Internally frequency compensated for unity gain
  • Large DC voltage gain: 100 dB typical
  • Wide bandwidth (unity-gain): 1.1 MHz typical
  • Low supply current: 0.5 mA per amplifier
  • Low input bias current: 45 nA typical
  • Output source/sink: 20 mA / 10 mA
  • Industry-standard SOIC-8 pinout

Applications

  • Active filters and signal conditioning
  • Comparators and level shifters
  • Transducer amplifiers and sensor interfaces
  • DC gain blocks and voltage followers
  • Power supply control and monitoring circuits

The LM258DT is a dual operational amplifier from Texas Instruments industry-standard LM158/LM258/LM358 family. This device contains two independent, high-gain, internally frequency-compensated operational amplifiers specifically designed for single-supply operation.

What distinguishes the LM258 from traditional dual-supply op-amps is its ability to operate with input voltages down to 0V (ground). The input stage uses PNP differential transistors that allow the common-mode input range to include the negative supply rail, a critical feature for single-supply sensor applications where signals are referenced to ground.

Each amplifier features a typical open-loop gain of 100dB and unity-gain bandwidth of 1.1MHz, with internal Miller compensation ensuring stability even at unity gain. The output stage can source up to 20mA and sink 10mA, sufficient for driving moderate loads and most analog circuit configurations.

The LM258DT is supplied in an SOIC-8 surface-mount package, offering a compact footprint suitable for space-constrained designs. This commercial-grade version is rated for operation from 0°C to +70°C. The LM258 is one of the most widely used dual op-amps in the industry, with multiple second sources ensuring supply chain flexibility.

The LM258 is a classic BJT-based operational amplifier with three primary internal stages:

1. Input Differential Stage: A PNP differential pair forms the input stage. The PNP transistors allow the input common-mode voltage to extend down to the negative supply (ground in single-supply operation). An NPN current mirror serves as the active load, converting the differential signal to a single-ended output while providing high gain.

2. Gain Stage (Second Stage): A common-emitter amplifier with an active current-mirror load provides the majority of the voltage gain (typically 60-80dB). A Miller compensation capacitor (integrated) is connected from output to input of this stage, providing frequency compensation for unity-gain stability. This creates a dominant pole that rolls off the gain at -20dB/decade.

3. Output Stage: A Class AB push-pull output stage drives the external load. An NPN transistor sources current to the load, while a PNP transistor sinks current. The output voltage can swing from near ground (within ~20-200mV depending on load) to within about 1.5V of the positive supply.

4. Bias Network: A bandgap-based bias reference generates stable current references for all stages, ensuring consistent performance across supply voltage and temperature.

5. Key Performance: Gain-bandwidth product ~1.1 MHz, slew rate ~0.5 V/µs, phase margin ~60° at unity gain, input noise ~40 nV/√Hz at 1kHz.

Pin Name Type Description
1 1OUT Output Output of Amplifier A (Channel 1)
2 1IN- Input Inverting (-) input of Amplifier A
3 1IN+ Input Non-inverting (+) input of Amplifier A
4 GND/VEE Power Negative power supply. For single-supply operation, connect to ground (0V).
5 2IN+ Input Non-inverting (+) input of Amplifier B
6 2IN- Input Inverting (-) input of Amplifier B
7 2OUT Output Output of Amplifier B (Channel 2)
8 VCC/V+ Power Positive power supply (3V to 32V). Decouple to GND with 0.1µF ceramic.
  • Signal conditioning for temperature and pressure sensors
  • Active low-pass, high-pass, and band-pass filters
  • Voltage followers and unity-gain buffer stages
  • Comparators with hysteresis (Schmitt triggers)
  • Current sensing and current-to-voltage conversion
Manufacturer Part Number Package Notes
Texas Instruments LM358DR SOIC-8 Extended temp (-40 to 85°C)
Texas Instruments LM2904DR SOIC-14 Quad op-amp (4 channels)
STMicroelectronics LM258DT SOIC-8 Pin-compatible direct alternative
ON Semiconductor LM258DR2G SOIC-8 Direct substitute
NXP LM258AD SOIC-8 Alternative source
Microchip MCP6002 SOIC-8 1.8V CMOS low-power option
