LM2902DR

Quad Op-Amp, 3V-32V Single Supply, 1.1MHz GBW, SOIC-14

8130

Effective Inventory
Go to Inquiry

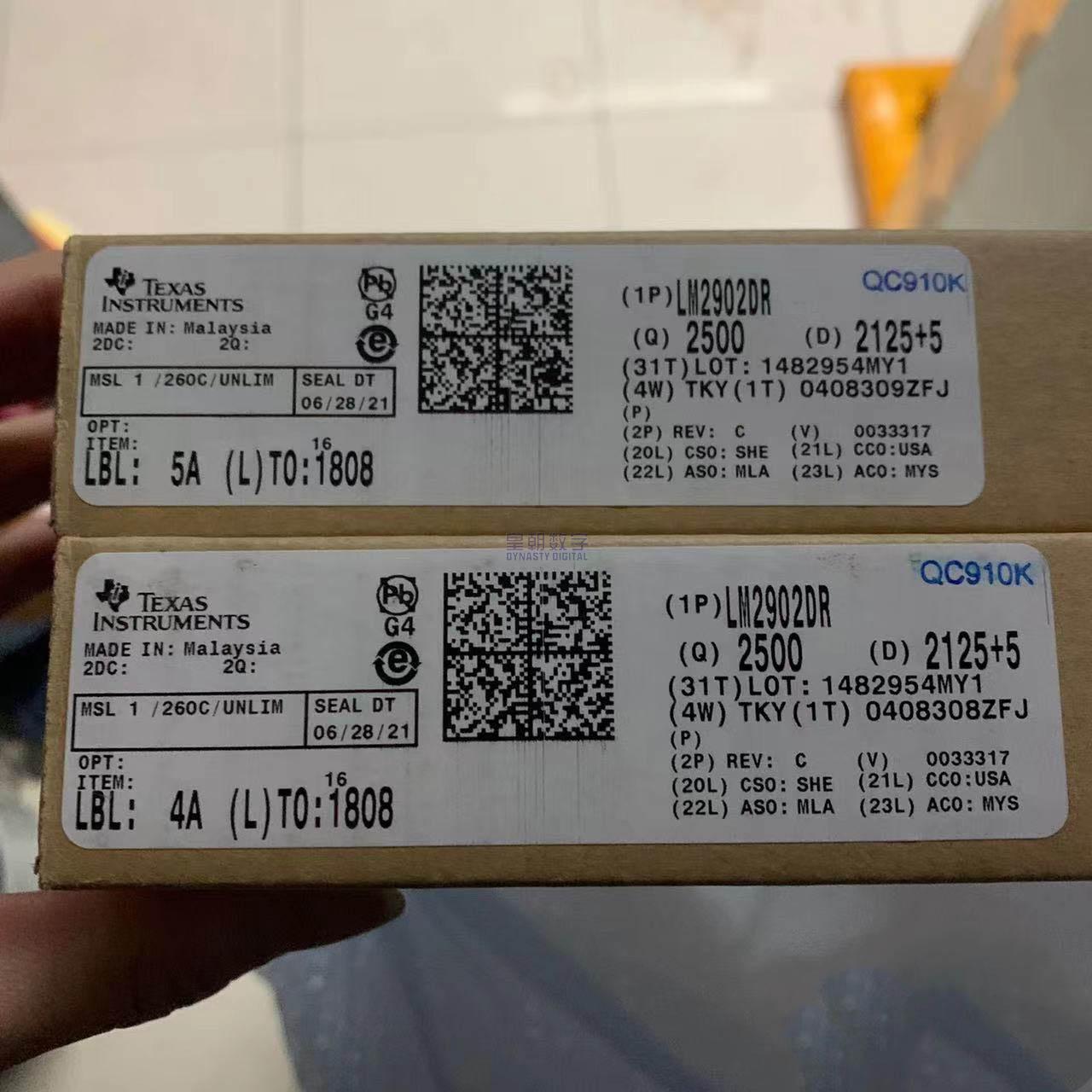

Image for reference only

Manufacturer Part：

LM2902DR

Package：

SOIC-14, 8.65 x 3.9 x 1.5 mm

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The LM2902DR is a quad operational amplifier from Texas Instruments, featuring four independent, high-gain, internally frequency-compensated op-amps in an SOIC-14 surface-mount package. Designed for single-supply operation from 3V to 32V (and dual supplies from ±1.5V to ±16V), the input common-mode range extends down to ground, making it ideal for applications where signals are referenced to the negative rail. With four amplifiers in a single package, the LM2902 provides excellent channel density for multi-channel signal conditioning, active filtering, and comparator circuits in industrial, automotive, and consumer electronics.

Key Specifications

Parameter Value
Manufacturer Texas Instruments
Part Number LM2902DR
Product Category Operational Amplifiers
Number of Channels 4 (Quad)
Supply Voltage Range 3V to 32V single supply
Input Offset Voltage 2 mV typical
Input Bias Current 45 nA typical
Gain Bandwidth Product 1.1 MHz typical
Slew Rate 0.5 V/µs typical
Open-Loop Gain 100 dB typical
Package / Case SOIC-14
Operating Temperature -40°C to +125°C

Features

  • Four independent operational amplifiers in single package
  • Wide single-supply voltage range: 3V to 32V
  • Input common-mode voltage includes ground (0V)
  • Internally frequency compensated for unity gain
  • Large DC voltage gain: 100 dB typical
  • Unity-gain bandwidth: 1.1 MHz typical
  • Low supply current per amplifier: 0.5 mA typical
  • Low input bias current: 45 nA typical
  • Output source/sink: 20 mA / 10 mA per channel
  • Industry-standard SOIC-14 pinout

Applications

  • Multi-channel signal conditioning
  • Active filter banks and equalizers
  • Instrumentation amplifiers and difference amplifiers
  • Voltage comparators and level detectors
  • Sensor interface and transducer amplifiers

The LM2902DR is a quad operational amplifier from Texas Instruments industry-standard LMx24/LMx58/LMx902 family. This device contains four independent, high-gain, internally frequency-compensated operational amplifiers specifically designed for single-supply operation, making it one of the most widely used quad op-amps in the industry.

The LM2902 operates from a single supply of 3V to 32V, or from dual supplies of ±1.5V to ±16V. A key feature is that the input common-mode voltage range includes ground (0V), enabling direct interfacing with ground-referenced sensors without the need for level shifting. This is achieved through the use of PNP input transistors.

Each of the four amplifiers features a typical open-loop gain of 100dB and unity-gain bandwidth of 1.1MHz. Internal Miller compensation ensures stability in unity-gain follower configurations. The output stage uses a Class AB push-pull architecture, capable of sourcing up to 20mA and sinking 10mA per channel.

Packaged in an SOIC-14 surface-mount package, the LM2902DR offers high channel density in a compact footprint. The extended industrial temperature range of -40°C to +125°C makes it suitable for demanding automotive and industrial applications.

The LM2902 is a classic BJT-based op-amp with four independent amplifiers sharing a common bias network and supply connections:

1. Input Differential Stage: Each amplifier uses a PNP differential pair as the input stage. The PNP architecture allows the common-mode input voltage to extend down to the negative supply rail (VEE or ground). An NPN current mirror load converts the differential input signal to a single-ended output while providing high gain.

2. High-Gain Stage: The second stage is a common-emitter amplifier with an active current-mirror load, providing the bulk of the voltage gain (60-80dB). An integrated Miller compensation capacitor provides frequency compensation, creating a dominant pole that ensures unity-gain stability with 60° phase margin.

3. Output Stage: A Class AB push-pull output stage drives the load. NPN and PNP output transistors work together to source and sink current with low crossover distortion. The output can swing from near ground to within approximately 1.5V of the positive supply.

4. Shared Bias Network: All four amplifiers share a common bandgap-based bias reference that generates stable current references, ensuring consistent performance across supply voltage and temperature variations. Each amplifier operates independently with no interaction between channels.

5. Protection: Each amplifier includes output short-circuit protection with current limiting, preventing damage under output short conditions.

Pin Name Type Description
1 1OUT Output Output of Amplifier 1
2 1IN- Input Inverting input of Amplifier 1
3 1IN+ Input Non-inverting input of Amplifier 1
4 VCC Power Positive power supply (3V to 32V). Decouple to GND with 0.1µF ceramic.
5 2IN+ Input Non-inverting input of Amplifier 2
6 2IN- Input Inverting input of Amplifier 2
7 2OUT Output Output of Amplifier 2
8 3OUT Output Output of Amplifier 3
9 3IN- Input Inverting input of Amplifier 3
10 3IN+ Input Non-inverting input of Amplifier 3
11 GND/VEE Power Negative power supply / ground. Connect to 0V for single-supply operation.
12 4IN+ Input Non-inverting input of Amplifier 4
13 4IN- Input Inverting input of Amplifier 4
14 4OUT Output Output of Amplifier 4
  • Multi-channel sensor signal conditioning
  • 4-channel active filter banks (low-pass, high-pass, band-pass)
  • Instrumentation amplifiers (3-op-amp configuration)
  • Window comparators and level detection circuits
  • Summing amplifiers and DAC output buffers
Manufacturer Part Number Package Notes
Texas Instruments LM324DR SOIC-14 Commercial grade (0 to 70°C)
Texas Instruments LM2902PWR TSSOP-14 Smaller TSSOP package
STMicroelectronics LM2902DT SOIC-14 Pin-compatible quad alternative
ON Semiconductor LM2902DR2G SOIC-14 Direct substitute
NXP LM2902D SOIC-14 Alternative source
Microchip MCP6004 SOIC-14 1.8V CMOS low-power option
