LT3092ETS8

2-terminal programmable current source, 0.5mA-200mA, 1.2V-40V, 1% accuracy, SOT-23-8, Linear Tech LT3092

5678

Effective Inventory
Go to Inquiry

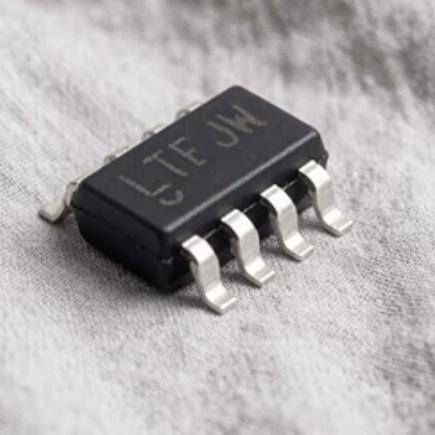

Image for reference only

Manufacturer Part：

LT3092ETS8

Package：

8-Lead SOT-23 (TSOT-23), 2.9mm x 2.8mm

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MT5016A

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

M65847AFP

KBPC5010

Description

Product Overview

The LT3092ETS8 is a 2-terminal programmable current source from Analog Devices (Linear Technology), capable of sourcing a precise and stable output current from 0.5mA to 200mA over a wide voltage range of 1.2V to 40V. Requiring only two external resistors to set the output current, this versatile device operates without input or output capacitors, making it ideal for intrinsic safety applications and sensitive circuits where capacitor energy storage is a concern. The SET pin features 1% initial accuracy with excellent temperature stability, and line regulation is better than 10ppm/V. Packaged in a compact 8-lead SOT-23 package, the LT3092 includes comprehensive protection features including reverse-voltage, reverse-current, short-circuit, and thermal shutdown protection.

Key Specifications

Parameter Value
Manufacturer Analog Devices (Linear Tech)
Type 2-Terminal Programmable Current Source
Output Current Range 0.5mA to 200mA
Voltage Range (IN to OUT) 1.2V to 40V
SET Pin Current Accuracy ±1% (initial)
Line Regulation 10 ppm/V typ
Load Regulation < 0.001%/V
Dropout Voltage 1.2V typ @ 200mA
SET Pin Temp Coefficient Very low (near zero TC)
Reverse-Voltage Protection Up to 40V reverse
Package 8-Lead SOT-23 (TSOT-23)
Operating Temperature -40°C to +125°C (E grade)

Features

  • Programmable 2-terminal current source — 0.5mA to 200mA
  • Wide operating voltage range: 1.2V to 40V across the device
  • No input or output capacitors required for stability
  • Single resistor ratio sets output current (I_OUT = 10µA × R_SET/R_OUT + 10µA)
  • 1% initial accuracy on SET pin current reference
  • Excellent line regulation: < 0.001%/V typical
  • Reverse-voltage and reverse-current protection
  • Short-circuit proof — unlimited short-circuit duration
  • Thermal shutdown protection with hysteresis
  • High DC and AC impedance
  • Available in SOT-23, SOT-223, and DFN packages
  • Intrinsically safe application compatible

Applications

  • 2-terminal floating current source
  • Ground-referenced current source
  • Variable and programmable current sources
  • In-line current limiter
  • Sensor biasing and excitation
  • Remote sensor power supply
  • Intrinsic safety circuits
  • Precision current limiters for local supplies
  • Battery charging circuits
  • LED driver applications

The LT3092ETS8 from Analog Devices (Linear Technology) is a versatile 2-terminal programmable current source that provides a precise, stable output current using only two external resistors. Unlike traditional current source circuits that require multiple components and can suffer from stability issues, the LT3092 integrates a precision 10µA reference current source and a power operational amplifier into a single IC. The SET pin generates a highly accurate 10µA reference current with ±1% initial accuracy and excellent temperature stability. By connecting two resistors (R_SET and R_OUT), the output current is programmed as I_OUT = 10µA × (R_SET/R_OUT) + 10µA, providing a simple resistor-ratio-based current setting. The device operates from just 1.2V of headroom up to 40V, and requires no input or output capacitors for stability — a key advantage for intrinsically safe applications where stored energy must be minimized. Comprehensive protection features including reverse-battery, reverse-current, short-circuit, and thermal shutdown ensure robust operation in demanding environments.

The LT3092 operates as a 2-terminal current source using an internal precision 10µA reference current source and a power operational amplifier. The 10µA reference current flows out of the SET pin. When an external resistor R_SET is connected from SET to OUT, a voltage V_SET = 10µA × R_SET is developed across it. The power op-amp forces the voltage at its output (OUT pin) to equal the voltage at its non-inverting input (the SET pin voltage, relative to IN). A second resistor R_OUT connected from OUT to the bottom of R_SET carries current equal to V_SET/R_OUT = 10µA × R_SET/R_OUT. Adding the 10µA reference current gives the total output current: I_OUT = 10µA × (R_SET/R_OUT + 1). The device operates in series with the load between IN and OUT terminals, functioning as a current source regardless of which terminal is at higher potential for reverse-current mode. The architecture provides very high output impedance and excellent line/load regulation because the op-amp continuously adjusts to maintain the programmed current.

Pin Name Description
1 OUT Output terminal (current source output)
2 OUT Output terminal (bonded to Pin 1)
3 NC No internal connection
4 SET Set pin (10µA reference current output)
5 NC No internal connection
6 NC No internal connection
7 IN Input terminal (supply side)
8 NC No internal connection

Note: Pins 1 and 2 are both OUT; pins 3, 5, 6, 8 are no-connect and may be tied to IN, OUT, GND or left floating.

  • Constant current LED drivers and LED bias circuits
  • Sensor excitation and bridge sensor biasing (RTD, strain gauge)
  • 2-wire 4-20mA current loop transmitters
  • Precision current limiters for power supply outputs
  • Battery charging and constant-current charger circuits
  • Intrinsically safe (IS) circuits in hazardous environments
  • Remote sensor powering over long cables
  • Active load circuits and current calibration
  • Low-power current reference for analog circuits
Model Manufacturer Current Range Voltage Package
LM334 TI 1µA-10mA 1V-40V TO-92/SO-8
REF200 TI 100µA fixed 2.5V-40V SOIC-8
LT3092EST ADI 0.5mA-200mA 1.2V-40V SOT-223
ADN8810 ADI 0-3A 2.7V-5.5V WLCSP
