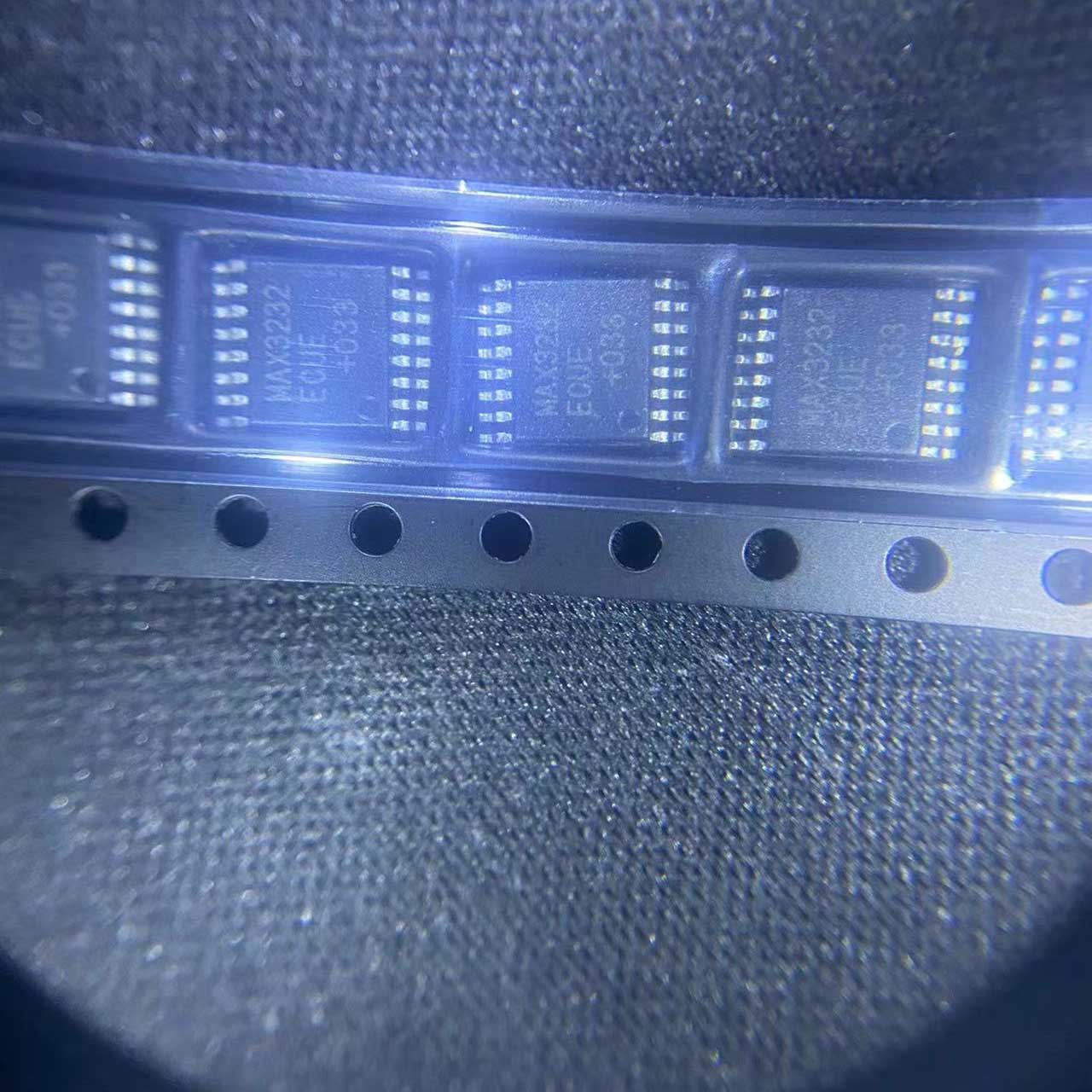

MAX3232ECUE

Dual RS-232 transceiver, ±15kV ESD protection, 3.0-5.5V, 250kbps, TSSOP-16

9820

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

MAX3232ECUE

Package：

TSSOP-16 (5.0 x 6.4 mm, 0.65 mm pitch)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MAX3232ECUE is an enhanced ESD-protected RS-232 transceiver from Analog Devices (formerly Maxim Integrated). This device features ±15kV ESD protection on all transmitter outputs and receiver inputs, operating from a single 3.0V to 5.5V supply. It includes two drivers and two receivers, utilizing a dual charge-pump architecture to generate true RS-232 voltage levels. Available in a TSSOP-16 package, the MAX3232ECUE supports data rates up to 250 kbps and meets TIA/EIA-232-F and ITU V.28 standards.

Key Specifications

Manufacturer Analog Devices / Maxim Integrated
Type RS-232 Transceiver
Number of Drivers 2
Number of Receivers 2
Supply Voltage 3.0V to 5.5V
Data Rate Up to 250 kbps
ESD Protection ±15kV HBM
Operating Temperature -40°C to +85°C
Package TSSOP-16
Supply Current 300 µA typical

Features

  • ±15kV ESD protection on RS-232 bus pins
  • True RS-232 performance from 3.0V to 5.5V supply
  • Two drivers and two receivers
  • Low supply current: 300 µA typical
  • Meets TIA/EIA-232-F and ITU V.28 standards
  • Four 0.1 µF external charge pump capacitors required
  • Accepts 5V logic input with 3.3V supply
  • TSSOP-16 package for space-constrained designs
  • Industrial temperature range: -40°C to +85°C

Applications

  • Industrial control and automation
  • Serial data communication interfaces
  • Portable and battery-powered equipment
  • Networking and telecommunications equipment
  • Medical and industrial instrumentation
  • Embedded systems and microcontroller interfaces

The MAX3232ECUE is an enhanced version of the industry-standard MAX3232 RS-232 transceiver with improved ESD protection, manufactured by Analog Devices (formerly Maxim Integrated). The ‘E’ suffix indicates enhanced ESD protection of ±15kV on all transmitter outputs and receiver inputs (IEC 1000-4-2 air discharge, human body model). The device consists of two line drivers, two line receivers, and a dual charge-pump circuit that generates the ±5.5V typical RS-232 output levels from a single 3.0V to 5.5V supply. Using a proprietary low dropout transmitter output stage, the MAX3232ECUE maintains true RS-232 performance across the full supply voltage range. The device operates at data rates up to 250 kbps with a maximum driver output slew rate of 30 V/µs. The ‘C’ grade version operates over the commercial temperature range of 0°C to +70°C, while the ‘E’ suffix adds enhanced ESD protection. The TSSOP-16 package provides a compact footprint ideal for space-constrained PCB designs in industrial, networking, and consumer applications.

The MAX3232ECUE uses a dual charge-pump architecture to generate the positive and negative voltage rails required for RS-232 signaling from a single positive supply. The charge pump operates in two phases: in the first phase, it charges a flying capacitor to the input voltage; in the second phase, it stacks the capacitor voltage on top of the supply to generate approximately 2×VCC for the positive rail, and inverts it for the negative rail (approximately -VCC). Only four small 0.1 µF external capacitors are needed for the charge pump. The TTL/CMOS compatible digital input signals are level-shifted and driven by the transmitter output stages, which swing between the generated positive and negative supply rails to produce true RS-232 voltage levels. On the receiver side, RS-232 input signals (which can swing from -25V to +25V) are level-shifted down to TTL/CMOS compatible output levels. The receivers feature fail-safe circuitry that ensures a logic-high output when the inputs are open-circuited. The charge pump design ensures low supply current of only 300 µA typical, making the device suitable for low-power applications.

Pin Name Type Function
1 C1+ External Charge pump capacitor 1 positive terminal
2 VS+ Power Positive charge pump voltage (2VCC)
3 C1- External Charge pump capacitor 1 negative terminal
4 C2+ External Charge pump capacitor 2 positive terminal
5 C2- External Charge pump capacitor 2 negative terminal
6 VS- Power Negative charge pump voltage (-VCC)
7 T2OUT Output Transmitter 2 RS-232 output
8 R2IN Input Receiver 2 RS-232 input
9 R2OUT Output Receiver 2 TTL/CMOS output
10 T2IN Input Transmitter 2 TTL/CMOS input
11 T1IN Input Transmitter 1 TTL/CMOS input
12 R1OUT Output Receiver 1 TTL/CMOS output
13 R1IN Input Receiver 1 RS-232 input
14 T1OUT Output Transmitter 1 RS-232 output
15 GND Ground Ground
16 VCC Power Positive supply voltage (3.0V to 5.5V)
  • Industrial control systems and PLC communication
  • Serial port interfaces for embedded systems
  • Networking equipment and routers
  • Medical diagnostic and monitoring equipment
  • Point-of-sale terminals and transaction systems
  • Consumer electronics with serial connectivity
Manufacturer Part Number Package Notes
Texas Instruments MAX3232EIPWR TSSOP-16 Pin-compatible ESD-protected version
Analog Devices MAX3232ECSE+ SOIC-16 SOIC package variant
Analog Devices MAX232ECUE+ TSSOP-16 Standard RS-232 transceiver
Texas Instruments SN65C3232EPWR TSSOP-16 1Mbps high-speed version
MaxLinear SP3232EEN SOIC-16 ESD-protected RS-232 transceiver
