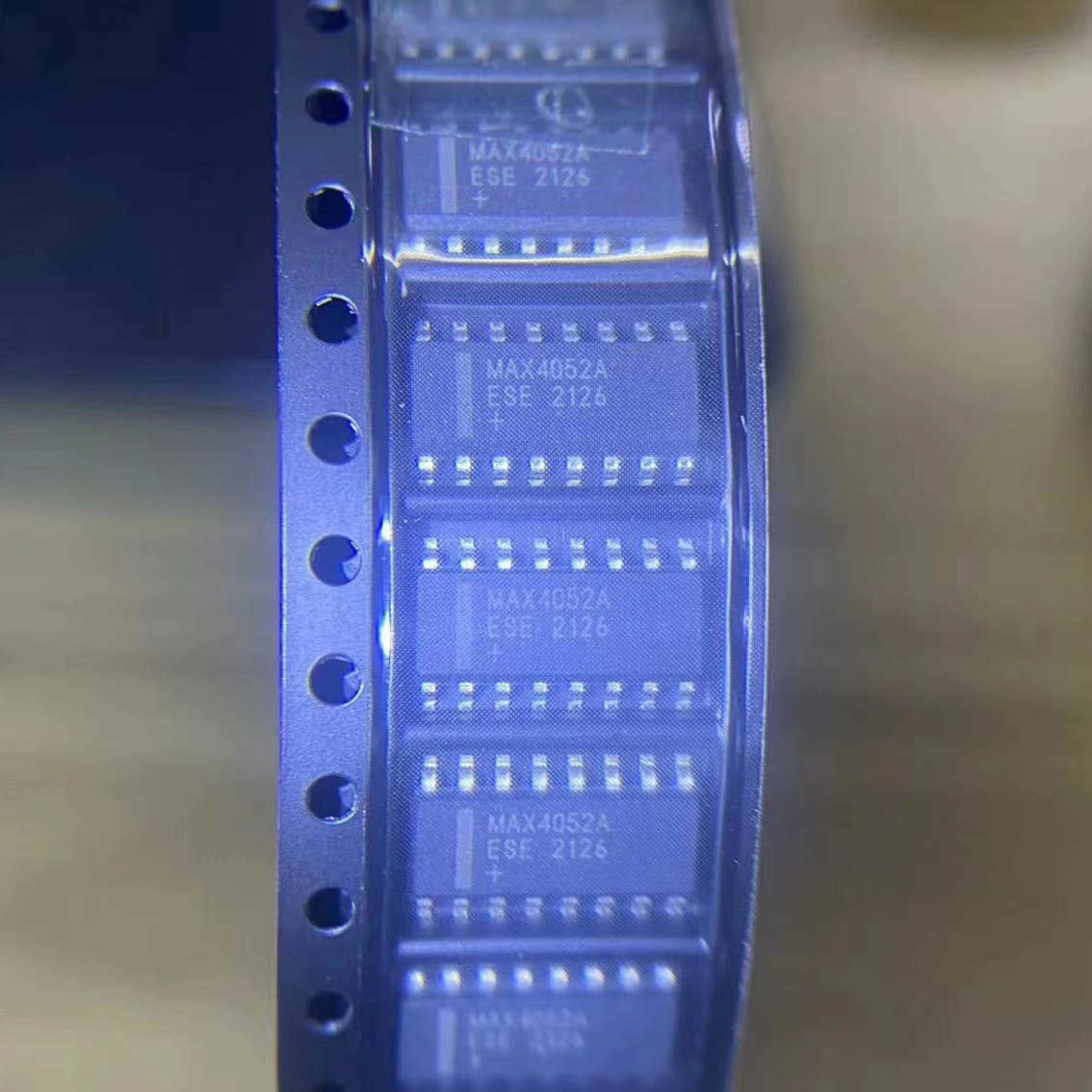

MAX4052AESE

Dual 4-channel analog multiplexer, A-grade precision, 2-16V single/±2.7-±8V dual, SOIC-16

7650

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

MAX4052AESE

Package：

SOIC-16 Narrow (3.9mm body width, 1.27mm pitch)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MAX4052AESE is a low-voltage, precision CMOS dual 4-channel analog multiplexer from Analog Devices (formerly Maxim Integrated). Configured as two independent 4:1 multiplexers, this device features guaranteed on-resistance matching of 6Ω between channels and low off-leakage currents of 0.1nA at +25°C. It operates from +2.0V to +16V single supply or ±2.7V to ±8V dual supply, and is pin-compatible with industry-standard 74HC4052 devices.

Key Specifications

Manufacturer Analog Devices / Maxim Integrated
Configuration Dual 4-Channel Multiplexer (2 x 4:1)
On-Resistance (±5V) 100Ω max
Channel Matching 6Ω (A-grade)
Off-Leakage Current 0.1nA typical @ 25°C
Supply Voltage (Single) 2.0V to 16V
Supply Voltage (Dual) ±2.7V to ±8V
Operating Temperature -40°C to +85°C
Package SOIC-16 (Narrow)
Logic Compatibility TTL/CMOS
THD < 0.04% (600Ω)

Features

  • Dual 4-channel CMOS analog multiplexer
  • A-grade precision: 6Ω channel-to-channel matching
  • Pin-compatible with 74HC4052 industry standard
  • Low off-leakage: 0.1nA at +25°C Rail-to-rail analog signal handling Low distortion: < 0.04% into 600Ω Low crosstalk: < -90dB at 50Ω High off-isolation: < -90dB at 50Ω TTL/CMOS logic compatible inputs SOIC-16 narrow package Extended temperature range: -40°C to +85°C

    Applications

    • Audio and video signal routing
    • Low-voltage data acquisition systems
    • Battery-operated portable equipment
    • Communication circuits and RF switching
    • Industrial automation and test equipment
    • Medical instrumentation

The MAX4052AESE is a low-voltage, CMOS analog multiplexer from Analog Devices (formerly Maxim Integrated), configured as two independent 4-channel multiplexers in a single 16-pin package. The ‘A’ suffix designation indicates enhanced performance specifications including guaranteed on-resistance matching between channels, improved on-resistance flatness, and lower leakage currents compared to the standard MAX4052 version. The device can operate continuously with dual power supplies ranging from ±2.7V to ±8V or a single supply between +2.0V and +16V. Each switch can handle rail-to-rail analog signals, making it versatile for a wide range of signal levels. The MAX4052AESE is pin-compatible with the industry-standard 74HC4052, allowing drop-in replacement with significantly improved analog performance. With low total harmonic distortion of less than 0.04% into 600Ω, it is well-suited for audio signal routing applications. The low off-leakage current of only 0.1nA at 25°C makes the device suitable for high-impedance signal switching in precision data acquisition systems. All digital inputs feature 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS compatibility when using ±5V or single +5V supplies.

The MAX4052AESE contains two independent 4-channel analog multiplexers, each with a common output pin and four selectable input pins. Channel selection is controlled by two digital address lines (A0 and A1) that are common to both multiplexers, along with an enable pin (EN) that, when high, turns off all channels. When a particular channel is selected, the corresponding NMOS and PMOS transmission gate connects the input pin to the common output pin, allowing bidirectional signal flow. The CMOS transmission gate structure enables rail-to-rail signal handling — signals can swing from the negative supply rail to the positive supply rail. The A-grade version features carefully matched transistor geometries to ensure minimal on-resistance variation between channels (6Ω max matching) and across the signal range (flatness). The off-state leakage current is extremely low due to the CMOS isolation structure, making the device suitable for multiplexing high-impedance sources. Internal level-shifting circuits translate the TTL/CMOS compatible digital control inputs to appropriate gate drive voltages for the analog switches, ensuring proper operation across the full supply range.

Pin Name Type Function
1 1Y I/O Multiplexer 1 common output/input
2 1A0 I/O Mux 1 channel 0 input/output
3 1A1 I/O Mux 1 channel 1 input/output
4 1A2 I/O Mux 1 channel 2 input/output
5 1A3 I/O Mux 1 channel 3 input/output
6 A0 Input Address select bit 0 (shared)
7 A1 Input Address select bit 1 (shared)
8 GND/VEE Ground Ground / negative supply (dual supply)
9 EN Input Enable (active low, shared)
10 2A3 I/O Mux 2 channel 3 input/output
11 2A2 I/O Mux 2 channel 2 input/output
12 2A1 I/O Mux 2 channel 1 input/output
13 2A0 I/O Mux 2 channel 0 input/output
14 2Y I/O Multiplexer 2 common output/input
15 VEE Power Negative supply (dual supply mode)
16 VCC Power Positive supply voltage
  • Audio signal routing and switching in audio mixers
  • Data acquisition systems and ADC frontends
  • Video signal switching and routing
  • Portable and battery-powered test instruments
  • Communication systems and RF signal paths
  • Industrial control and automation systems
Manufacturer Part Number Package Notes
Analog Devices MAX4052ACEE+ QSOP-16 A-grade, QSOP package
Analog Devices MAX4052ESE+ SOIC-16 Standard grade (non-A)
Texas Instruments CD74HC4052 SOIC-16 Industry standard 74HC4052
NXP 74HC4052PW TSSOP-16 Standard CMOS 4052 mux
Analog Devices ADG1409 LFCSP-16 High-performance dual 4:1 mux
