MB91F465PAPMC-GSE2

32-bit FR60 RISC MCU, 100MHz, 544KB Flash, 40KB RAM, 3xCAN, 12xUSART, LQFP-176

5680

Effective Inventory
Go to Inquiry

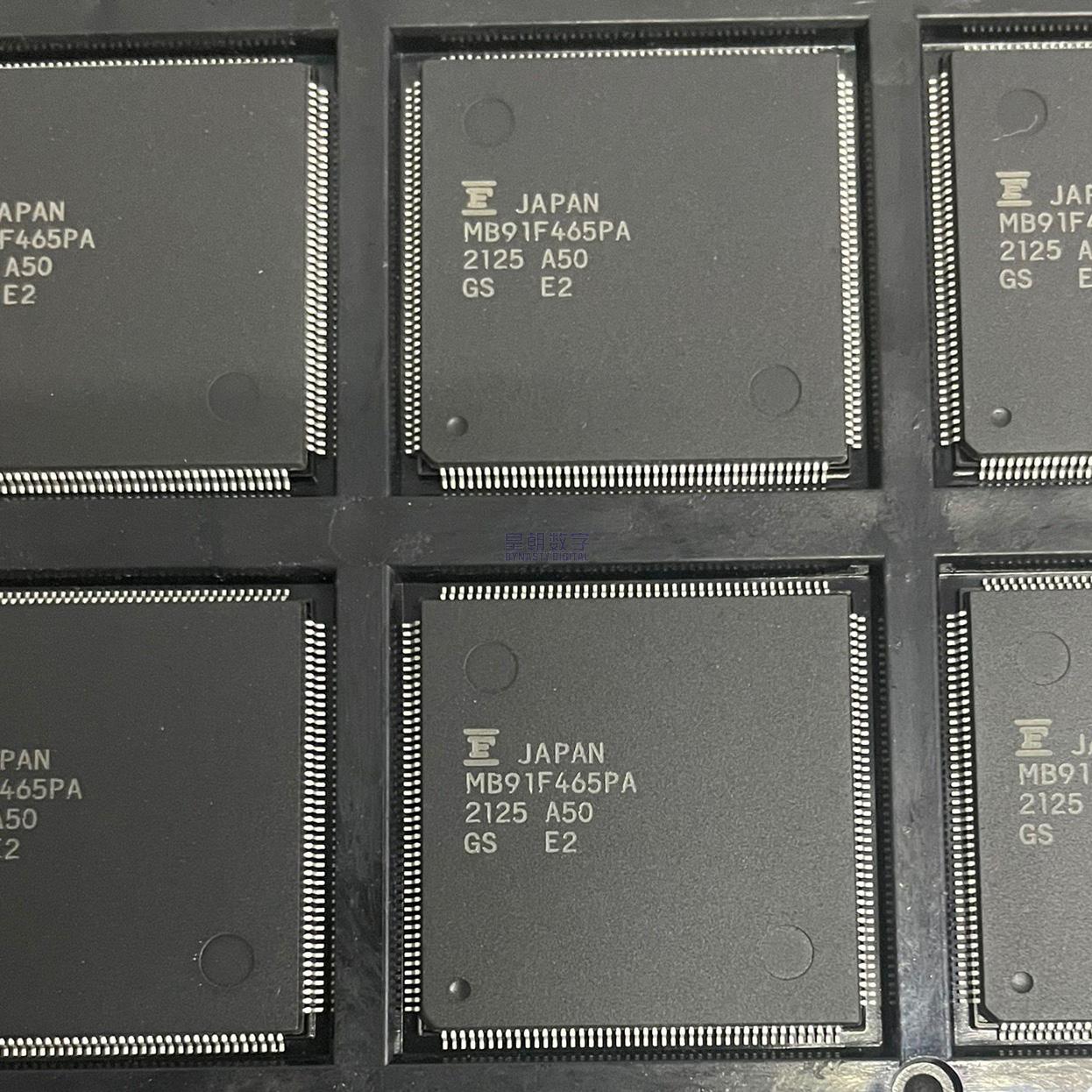

Image for reference only

Manufacturer Part：

MB91F465PAPMC-GSE2

Package：

LQFP-176 (24 x 24 x 1.4 mm, 0.5mm pitch)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

NT68F63L

MT6735V

MCIMX6D6AVT08AD

MC9328MXLVM20

JN5169

FM33LC026N

GD32F310C8T6

GD32F303ZET6

Description

Product Overview

The MB91F465PAPMC-GSE2 is a 32-bit RISC microcontroller from Cypress Semiconductor (formerly Fujitsu), featuring the FR60 CPU core operating at up to 100 MHz. This automotive/industrial-grade MCU integrates 544KB Flash memory, 40KB RAM, and a rich set of peripherals including 3 CAN controllers, 12 USART channels, 4 I2C interfaces, and a 32-channel 10-bit ADC. Packaged in a 176-pin LQFP, it is designed for demanding automotive and industrial control applications requiring high performance and extensive connectivity.

Key Specifications

Manufacturer Cypress Semiconductor / Fujitsu
CPU Core FR60 (32-bit RISC)
Clock Frequency Up to 100 MHz
Program Flash 544 KB
RAM 40 KB
Supply Voltage 3.0V to 5.5V (3.3V/5V typical)
I/O Pins 141
ADC 32 channels, 10-bit
CAN Controllers 3 channels
USART 12 channels
I2C 4 channels
Operating Temperature -40°C to +125°C
Package LQFP-176

Features

  • 32-bit FR60 RISC CPU core at 100 MHz
  • 544KB on-chip Flash memory with ECC
  • 40KB on-chip SRAM
  • 3 CAN controller interfaces
  • 12 USART channels (LIN-capable)
  • 4 I2C interfaces
  • 32-channel 10-bit ADC
  • DMA controller (5 channels)
  • 57 timer channels
  • 141 general-purpose I/O pins
  • Watchdog timer and RTC
  • Automotive temperature grade: -40°C to +125°C
  • LQFP-176 package (24x24mm, 0.5mm pitch)

Applications

  • Automotive body electronics and control modules
  • Industrial control and automation systems
  • Motor control and drive systems
  • Industrial networking with CAN bus
  • Building automation and HVAC control
  • Power management and energy systems

The MB91F465PAPMC-GSE2 is a high-performance 32-bit microcontroller from Cypress Semiconductor (formerly Fujitsu Semiconductor), part of the FR60 family of RISC microcontrollers. Built around the FR60 CPU core, it delivers processing performance up to 100 MHz, making it suitable for demanding real-time control applications in automotive and industrial environments. The device integrates 544KB of on-chip Flash program memory with error correction code (ECC) for enhanced reliability, along with 40KB of static RAM for data storage. Its comprehensive peripheral set includes three CAN controller interfaces for automotive and industrial networking, twelve USART channels supporting LIN bus communication, four I2C interfaces, and a 32-channel 10-bit analog-to-digital converter for sensor interfacing. The MCU also features a 5-channel DMA controller for efficient data transfer without CPU intervention, 57 timer channels for PWM generation and input capture, and 141 general-purpose I/O pins. With an operating temperature range of -40°C to +125°C and AEC-Q100 qualification, the MB91F465PAPMC-GSE2 meets the rigorous requirements of automotive and industrial applications. The 176-pin LQFP package provides high pin density while maintaining manufacturability. The device supports both 3.3V and 5V supply voltages, offering flexibility in system design.

The MB91F465PAPMC-GSE2 is built on the FR60 32-bit RISC CPU architecture, which features a Harvard-style memory bus structure with separate instruction and data buses for improved performance. The CPU executes most instructions in a single clock cycle, achieving 1 MIPS per MHz of processing speed. The on-chip Flash memory stores program code and non-volatile data, with embedded ECC logic that detects and corrects single-bit errors on the fly for high reliability in harsh environments. The 40KB SRAM provides fast data storage for variables and stack operations. The bus matrix connects the CPU core to various peripheral modules through multiple bus bridges, enabling efficient concurrent access. The DMA controller can transfer data between memory and peripherals without CPU intervention, reducing overhead for data-intensive operations. The 32-channel 10-bit successive approximation ADC provides analog input capability for sensor interfacing, with sample sequencing and conversion result buffering. The three CAN controllers implement the CAN 2.0B protocol for robust automotive and industrial networking, each with its own message buffers and interrupt capabilities. The twelve USART channels support asynchronous serial communication, with some channels capable of LIN protocol operation. Clock management includes PLL-based clock generation from an external crystal, with multiple power-saving modes including standby, sleep, and stop modes for power management.

Pin Group Name Type Function
Power VCC Power Main supply voltage (3.3V/5V)
Power VSS Ground Ground
Power AVCC Power Analog supply for ADC
Power AVSS Ground Analog ground
Clock X0/X1 Input Main oscillator pins
Reset RSTX Input Active-low reset input
Debug JTAG pins I/O JTAG debug interface
CAN CAN0-2 TX/RX I/O 3 CAN controller I/O
UART USART0-11 I/O 12 USART channels TX/RX
I2C I2C0-3 SDA/SCL I/O 4 I2C interface pins
ADC AN00-AN31 Input 32 ADC analog inputs
GPIO P0-Pxx I/O 141 general-purpose I/O pins
Timers TIOA/B I/O Timer I/O pins (PWM/capture)
  • Automotive body control modules and gateway ECUs
  • Industrial PLC and motion control systems
  • Motor drive and inverter control
  • Building automation and HVAC controllers
  • Industrial networking with CAN bus communication
  • Power generation and energy management systems
Manufacturer Part Number Package Notes
Cypress MB91F467DAPMC-GSE2 LQFP-208 Higher pin count variant
Cypress MB91F465KPMC-GSE2 LQFP-120 Lower pin count variant
Infineon XC2365A LQFP-144 16-bit automotive MCU alternative
STMicroelectronics STM32F407ZGT6 LQFP-144 ARM Cortex-M4 MCU alternative
NXP MPC5748G LQFP-176 Automotive MCU with CAN FD
