MBM29LV400TC-90PFTN

4Mb 3V NOR Flash, 512KB, Bottom Boot, 90ns, TSOP-48

5000

Effective Inventory
Go to Inquiry

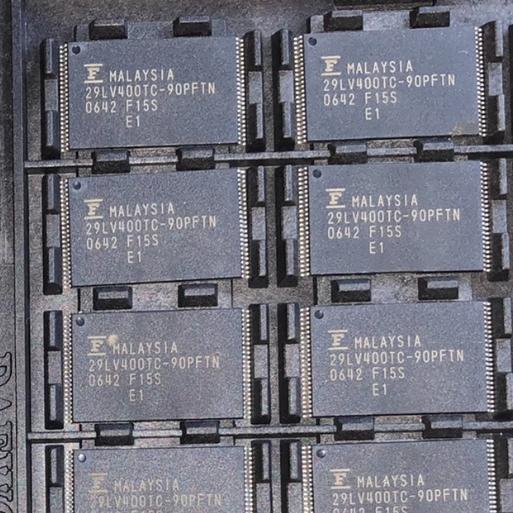

Image for reference only

Manufacturer Part：

MBM29LV400TC-90PFTN

Package：

TSOP-48

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MBM29LV400TC-90PFTN is a 4Mbit (512KB) 3V NOR Flash from Fujitsu/Spansion. Supports 8/16-bit mode via BYTE# pin. TC = Bottom Boot architecture. 90ns access time, 3.0-3.6V supply, 48-pin TSOP package.

Key Specifications

Type NOR Flash (3V)
Capacity 4Mbit (512KB)
Boot Bottom Boot (TC)
Access Time 90ns
Voltage 3.0V ~ 3.6V
Package 48-pin TSOP

Features

  • 4Mbit 3V NOR Flash: 512KB
  • Byte/Word configurable
  • 90ns access time
  • Bottom Boot architecture
  • 3.0-3.6V supply
  • Hardware reset
  • 48-pin TSOP package

Applications

  • Bootloader storage
  • Embedded firmware
  • Network boot ROM
  • Small embedded systems
  • Industrial control

The MBM29LV400TC-90PFTN is a 4Mbit (512KB) 3V NOR Flash from Fujitsu/Spansion. Supports 8/16-bit mode via BYTE# pin. TC = Bottom Boot architecture. 90ns access time, 3.0-3.6V supply, 48-pin TSOP package.

3V NOR Flash with Bottom Boot architecture. Boot code at address 0x00000. Mixed sector sizes for flexible storage.

Pin Name Description
DQ0-DQ14 Data 15-bit data
DQ15/A-1 Data/A-1 16th bit / A-1 address
A0-A17 Address 18 address inputs
CE#, OE#, WE# Control Enable signals
BYTE# Mode 8/16-bit select
RY/BY# Status Ready/Busy
RESET# Reset Hardware reset
  • Bootloader storage
  • Embedded firmware
  • Network boot ROM
  • Small embedded systems
  • Industrial control
Manufacturer Part Number Description
Spansion S29AL004D90BA 4Mb NOR, Bottom Boot
Atmel AT49BV040B 4Mb NOR Flash
