MC9328MXLVM20

i.MXL applications processor, ARM920T 200MHz, LCD ctrl, USB, MMC/SD, 256-LFBGA, commercial temp

3420

Effective Inventory
Go to Inquiry

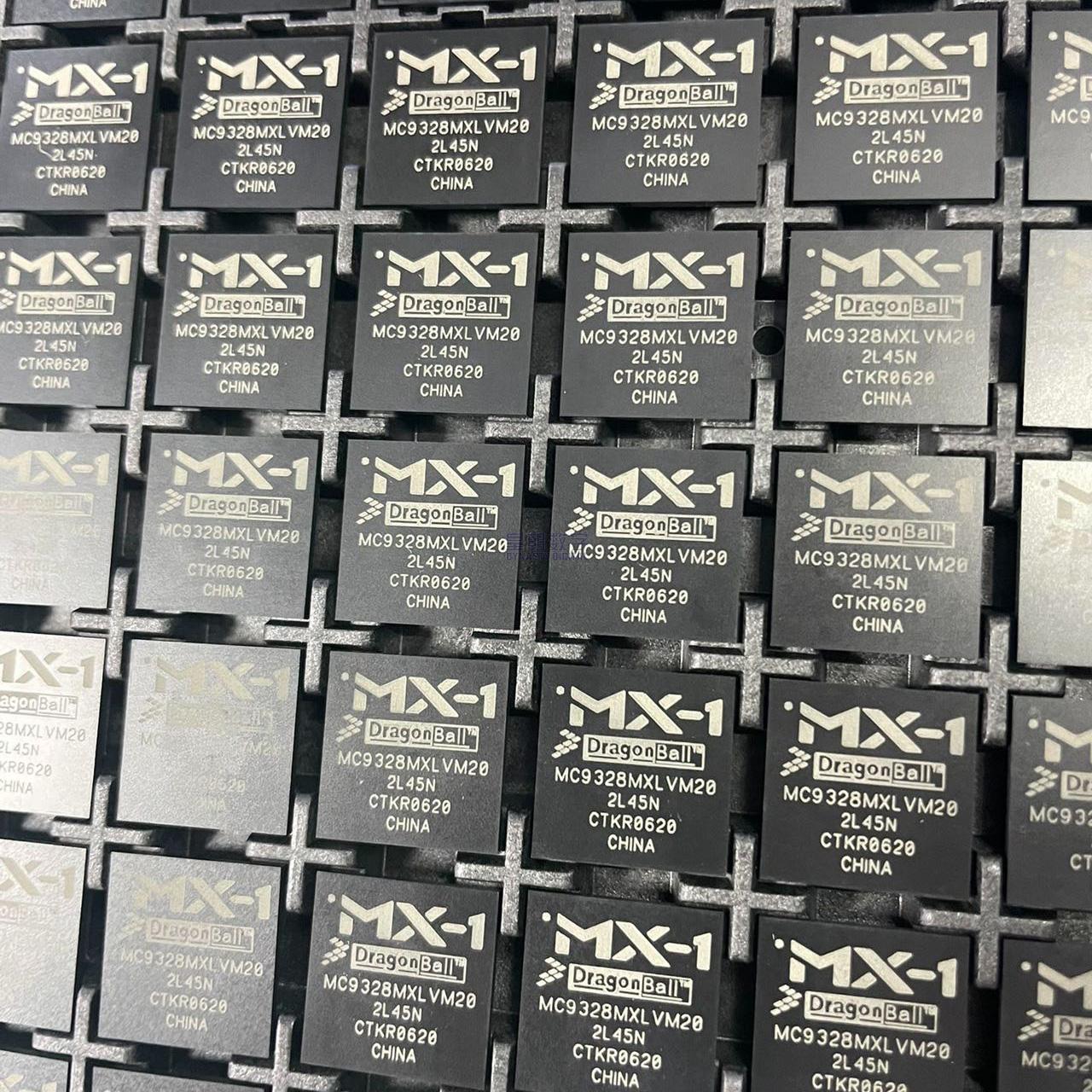

Image for reference only

Manufacturer Part：

MC9328MXLVM20

Package：

256-LFBGA (Mold Array Process BGA, 0.8mm pitch)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

NT68F63L

MT6735V

MCIMX6D6AVT08AD

MB91F465PAPMC-GSE2

JN5169

FM33LC026N

GD32F310C8T6

GD32F303ZET6

Description

Product Overview

The MC9328MXLVM20 is a member of NXP Semiconductor’s i.MX family of application processors, featuring an ARM920T core operating at 200 MHz. Originally from Freescale Semiconductor, this highly integrated applications processor includes an LCD controller, USB support, MMC/SD host controller, and extensive connectivity peripherals. Packaged in a 256-pin LFBGA (0.8mm pitch), it is designed for portable and handheld multimedia devices requiring a balance of performance and power efficiency.

Key Specifications

Manufacturer NXP / Freescale Semiconductor
CPU Core ARM920T (32-bit RISC)
Clock Frequency 200 MHz
Core Voltage 1.9V
I/O Voltage 3.3V
Operating Temperature -30°C to +70°C
Package 256-LFBGA (0.8mm pitch)
LCD Controller Integrated
USB USB host/device support
MMC/SD Host controller
UART 2 channels
SPI 2 channels
Memory Stick Host controller

Features

  • ARM920T core at 200 MHz with MMU
  • Integrated LCD controller for display interfaces
  • USB host and device support
  • MMC/SD and Memory Stick host controllers
  • Two UARTs and two SPI interfaces
  • SSI/I2S audio interface
  • PWM and timer modules
  • Real-time clock (RTC)
  • Power management capabilities
  • JTAG/ICE debug interface
  • 256-pin mold array process BGA package
  • Commercial temperature range: -30°C to +70°C

Applications

  • Portable handheld devices and PDAs
  • Multimedia and infotainment systems
  • Industrial human-machine interfaces (HMI)
  • Medical patient monitoring equipment
  • Embedded systems with graphical displays
  • Portable data terminals and scanners

The MC9328MXLVM20 is an applications processor from NXP Semiconductors (formerly Freescale Semiconductor), part of the i.MX (Media Extensions) family of processors designed for portable and embedded multimedia applications. Building on the legacy of the DragonBall family of application processors, the i.MX series provides a significant leap in performance with its ARM9 microprocessor core and highly integrated system functions. The MC9328MXL features the advanced and power-efficient ARM920T core operating at speeds up to 200 MHz, with integrated memory management unit (MMU) for operating system support. The device integrates numerous peripheral modules including an LCD controller for direct display driving, USB support for host and device connectivity, an MMC/SD host controller for removable storage, and a Memory Stick host controller. It is packaged in a 256-pin Mold Array Process-Ball Grid Array (MAPBGA) package with 0.8mm pitch, enabling a compact form factor ideal for portable devices. The commercial temperature range of -30°C to +70°C makes it suitable for consumer and industrial handheld products. The ‘V’ in the part number indicates the commercial temperature grade, while ‘M20’ denotes the 200 MHz speed grade.

The MC9328MXL is built around the ARM920T processor core, which implements the ARMv4T architecture with Thumb instruction set support. The ARM920T features a 5-stage pipeline, separate 16KB instruction and 16KB data caches, and a memory management unit (MMU) with translation lookaside buffers for virtual memory support. The system bus architecture connects the CPU core to the memory controller and peripheral modules through an AMBA-based bus matrix. The external memory controller supports various memory types including SDRAM, SRAM, Flash, and ROM, with configurable timing parameters. The integrated LCD controller supports both monochrome and color STN/TFT displays up to a resolution of 640×480, with hardware cursor support and display DMA for reduced CPU overhead. The USB module provides both host and device functionality with full-speed USB 1.1 compliance. The MMC/SD and Memory Stick host controllers offer removable storage options with dedicated DMA channels. Clock management includes a phase-locked loop (PLL) that generates the high-frequency system clock from a lower-frequency external crystal reference. Multiple power management modes allow the system to reduce power consumption during idle periods, with programmable wake-up sources including GPIO interrupts and timer events. The SSI/I2S interface provides audio connectivity for multimedia applications, supporting various audio codec devices.

Pin Group Name Type Function
Power NVDDx Power Core supply voltage (1.9V)
Power QVDDx Power I/O supply voltage (3.3V)
Power NVSS Ground Core ground
Power QVSS Ground I/O ground
Clock XTAL_IN/OUT I/O Main crystal oscillator
Reset RESET_B Input Active-low reset
Memory SDCLK/SDCKE Output SDRAM clock and clock enable
Memory SDCSx/SDWE Output SDRAM chip select and write enable
Memory A[25:0] Output Address bus
Memory D[31:0] I/O Data bus
LCD LD[17:0] Output LCD data lines
LCD LSCLK/LFP/LP Output LCD sync signals
USB USB_DP/DM I/O USB differential data
UART UART1/2 TX/RX I/O UART transmit/receive
SPI SPI1/2 SCLK/MOSI/MISO I/O SPI interface pins
MMC/SD MMC_CLK/DAT/CMD I/O MMC/SD interface
GPIO GPIO[xx] I/O General-purpose I/O pins
JTAG TCK/TMS/TDI/TDO I/O JTAG debug interface
