MCIMX6D6AVT08AD

Dual Cortex-A9 at 800MHz, 3D GPU, 1080p VPU, DDR3-1066, PCIe/SATA/GbE, 624-LFBGA, industrial

2850

Effective Inventory
Go to Inquiry

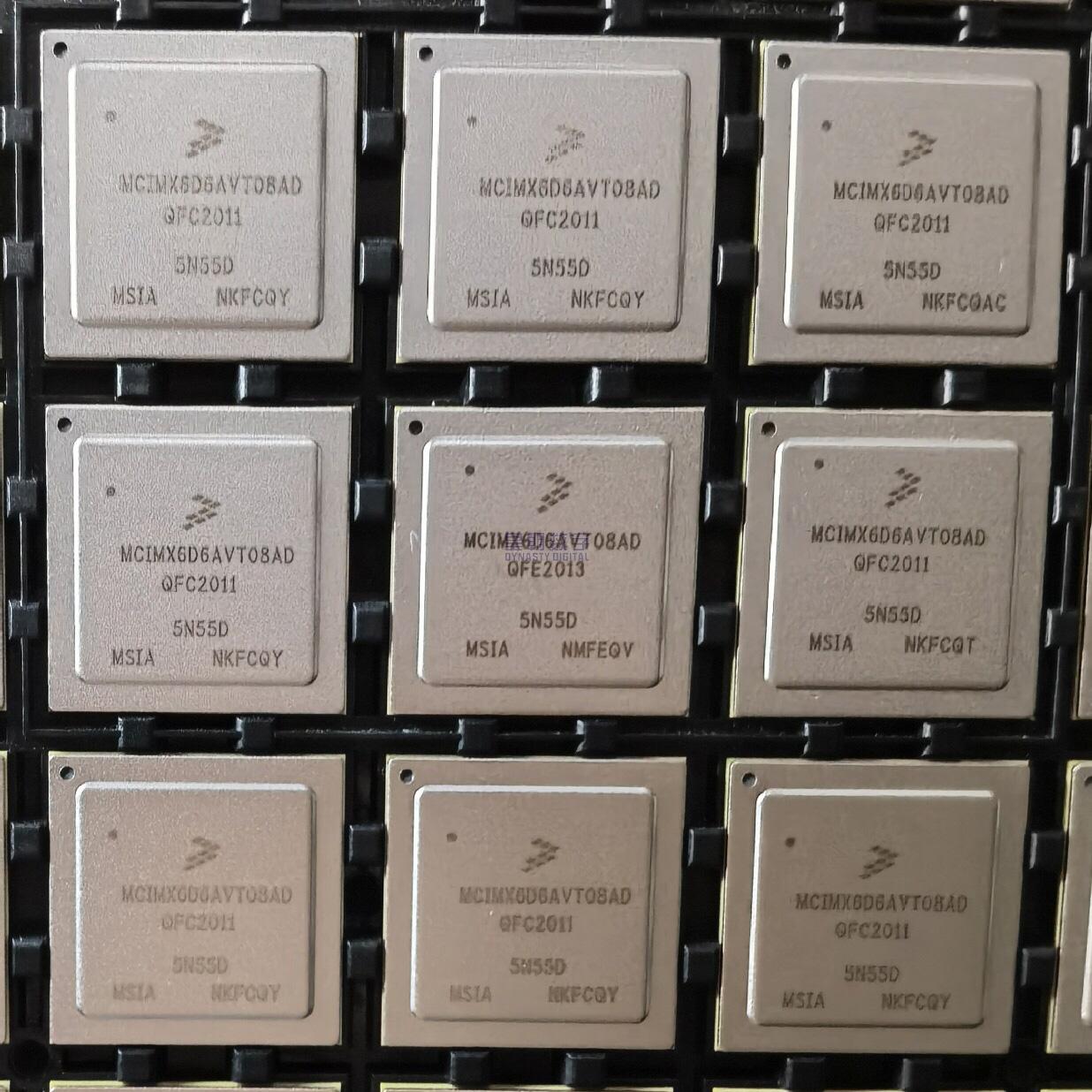

Image for reference only

Manufacturer Part：

MCIMX6D6AVT08AD

Package：

624-LFBGA (19 x 19 x 1.5 mm, 0.8mm pitch)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

NT68F63L

MT6735V

MC9328MXLVM20

MB91F465PAPMC-GSE2

JN5169

FM33LC026N

GD32F310C8T6

GD32F303ZET6

Description

Product Overview

The MCIMX6D6AVT08AD is a high-performance applications processor from NXP Semiconductors, featuring a dual-core ARM Cortex-A9 architecture operating at up to 800 MHz. Part of the i.MX6 series, this processor integrates advanced 3D graphics acceleration, 1080p video processing, and extensive connectivity options including PCIe, SATA, Gigabit Ethernet, and multiple display interfaces. Designed for industrial and automotive applications, it combines high processing power with rich multimedia capabilities in a compact BGA package.

Key Specifications

Manufacturer NXP Semiconductors
CPU Cores Dual ARM Cortex-A9
Clock Frequency Up to 800 MHz
GPU Vivante GC2000 3D GPU
VPU 1080p video encode/decode
L2 Cache 1 MB (shared)
Memory Interface 32-bit DDR3/LVDDR3, 64-bit DDR3-1066
Display Dual display support, up to 1080p
GPU 2D Vivante GC320 2D accelerator
PCIe 1 lane Gen 2
SATA SATA 3.0 (6 Gbps)
Ethernet Gigabit Ethernet MAC
USB 2x USB 2.0 OTG + 1x USB Host
Operating Temperature -40°C to +105°C (extended)
Package 624-LFBGA (19x19mm, 0.8mm pitch)

Features

  • Dual ARM Cortex-A9 cores at 800 MHz with NEON SIMD
  • 1MB unified L2 cache with parity protection
  • Vivante GC2000 3D GPU with OpenGL ES 2.0
  • 1080p60 video decode and 1080p30 encode VPU
  • Dual independent display controllers (up to 1080p each)
  • 64-bit DDR3-1066 memory interface
  • PCIe 2.0 (1-lane), SATA 3.0, Gigabit Ethernet Multiple USB 2.0 OTG/host ports MLB 150, SD 3.0, MIPI CSI camera interface Industrial temperature range: -40°C to +105°C 624-ball LFBGA package (19x19mm) Advanced power management with multiple power domains

    Applications

    • Industrial human-machine interfaces (HMI)
    • Automotive infotainment and dashboard systems
    • Medical imaging and patient monitoring
    • Industrial automation and control panels
    • Digital signage and kiosk systems
    • High-end IoT gateways and edge computing

The MCIMX6D6AVT08AD is a high-performance multi-core applications processor from NXP Semiconductors, part of the i.MX 6Dual family. Featuring two ARM Cortex-A9 cores running at up to 800 MHz, this processor delivers significant computing power for demanding embedded and multimedia applications. The i.MX6 series represents NXP’s flagship applications processor lineup, designed with a focus on multimedia performance, power efficiency, and extensive integration. The ‘D’ in the part number indicates a dual-core configuration, while ‘6’ denotes the 800 MHz speed grade. The device integrates the Vivante GC2000 GPU for advanced 3D graphics acceleration with support for OpenGL ES 2.0 and OpenVG, along with dedicated 2D graphics acceleration. The integrated video processing unit (VPU) supports 1080p60 video decoding and 1080p30 encoding, enabling rich multimedia experiences. With dual independent display controllers supporting resolutions up to 1080p, the processor can drive multiple displays simultaneously. The 64-bit DDR3 memory interface provides high memory bandwidth for graphics and video applications. Industrial-grade features include an extended temperature range of -40°C to +105°C, making it suitable for harsh industrial and automotive environments. The 624-ball LFBGA package with 0.8mm pitch provides a good balance of pin count, thermal performance, and PCB manufacturability.

The MCIMX6D6AVT08AD is based on NXP’s i.MX6 architecture, built around two ARM Cortex-A9 processor cores with NEON SIMD extensions and a shared 1MB L2 cache with ECC/parity protection. The Cortex-A9 cores feature out-of-order execution, dual-issue superscalar pipelines, and support for ARM and Thumb-2 instruction sets. The system interconnect uses a multi-layer AXI bus matrix that enables concurrent access to memory and peripherals from different masters (CPU, GPU, VPU, DMA) without bus contention. The memory subsystem includes a 64-bit DDR3/LPDDR2 controller running at up to 533 MHz (DDR3-1066), providing sufficient bandwidth for high-resolution graphics and video. The multimedia subsystem consists of three main components: the Vivante GC2000 GPU for 3D graphics rendering, the GC320 2D graphics processor for blitting and composition, and the VPU for hardware video codec acceleration. The display subsystem includes two independent display processing units (DPUs) that can drive two separate displays at up to 1080p resolution, with support for multiple pixel formats and hardware cursor overlays. Peripheral connectivity is extensive: PCIe 2.0 one-lane interface for high-speed expansion, SATA 3.0 for storage connectivity, Gigabit Ethernet MAC for networking, multiple USB 2.0 ports, and various serial interfaces including SPI, I2C, UART, and CAN. The power management architecture features multiple power domains with dynamic voltage and frequency scaling (DVFS) to optimize power consumption based on processing demand.

Pin Group Name Type Function
Power NVCC_xxx Power Various I/O supply rails
Power VCC_ARM Power CPU core supply
Power VCC_PU Power PU domain (GPU/VPU) supply
Power VCC_SOC Power SoC logic supply
Power GND Ground Ground pins
Memory DRAM_D[63:0] I/O DDR data bus (64-bit)
Memory DRAM_ADDR[15:0] Output DDR address bus
Memory DRAM_CS/DRAM_WE Output DDR control signals
Memory DRAM_DQS[7:0] I/O DDR data strobes
Display LVDS0/1_TX[3:0]_P/N Output Dual LVDS display outputs
Display HDMI_TX[2:0]_P/N Output HDMI display output
Camera CSI0/1_D[7:0]/CLK Input MIPI CSI camera inputs
PCIe PCIE_RX/TX_P/N I/O PCIe differential pairs
SATA SATA_RX/TX_P/N I/O SATA differential pairs
Ethernet ENET_TX/RX[3:0] I/O Gigabit Ethernet RGMII
USB USB_OTG1/2_DP/DM I/O USB 2.0 OTG data pairs
USB USB_H1_DP/DM I/O USB host data pair
Clock XTALI/XTALO I/O 24MHz main crystal
JTAG JTAG_TCK/TMS/TDI/TDO I/O JTAG debug interface
GPIO GPIO[xx] I/O General-purpose I/O with mux options
  • Industrial HMIs and operator terminals with high-resolution displays
  • Automotive infotainment, instrument clusters, and ADAS
  • Medical imaging equipment and patient monitoring systems
  • Digital signage, kiosks, and interactive displays
  • Industrial IoT gateways and edge computing nodes
  • Advanced robotics and machine vision systems
Manufacturer Part Number Package Notes
NXP MCIMX6Q5EYM10AC 624-LFBGA Quad-core Cortex-A9, 1GHz
NXP MCIMX6S5DVM10AC 624-LFBGA Single-core Cortex-A9, 1GHz
Texas Instruments AM5728 760-FCBGA Dual Cortex-A15 + dual C66x DSP
Xilinx XC7Z030-2CLG484I 484-BGA Zynq-7000 SoC with FPGA fabric
Renesas RZ/G2L 551-LFBGA Dual Cortex-A55 MPU alternative
