MT29F2G08ABAEAH4-IT:E

2Gb SLC NAND Flash, 256Mx8, ONFI 1.0, on-die ECC, 2K+128 page, VFBGA-63, -40~85°C

8765

Effective Inventory
Go to Inquiry

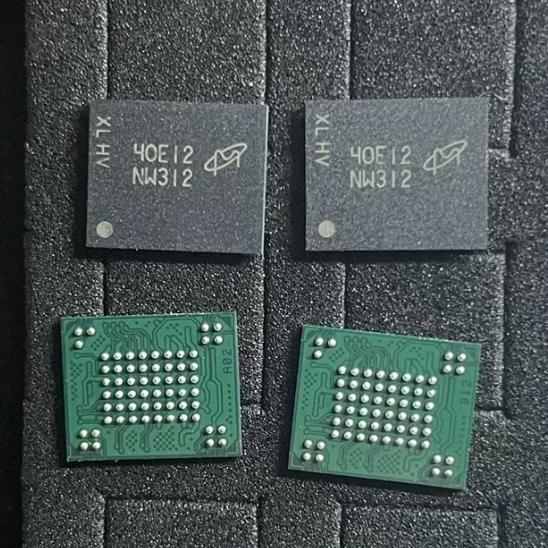

Image for reference only

Manufacturer Part：

MT29F2G08ABAEAH4-IT:E

Package：

VFBGA-63 (9.0 x 11.0 x 1.0 mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MT29F2G08ABAEAH4-IT:E is a 2Gbit SLC NAND Flash from Micron with x8 parallel interface, operating at 3.3V. The IT:E suffix denotes industrial temperature grade (-40°C to +85°C) with on-die ECC. It uses the ONFI 1.0 command set with 2048+128 byte pages and 64 pages per block, providing high endurance (~100K P/E cycles) for code and data storage in industrial and automotive applications.

Key Specifications

Density 2Gbit (256MB)
Cell Type SLC NAND
Supply Voltage 2.7V to 3.6V
Interface Parallel ONFI 1.0 (x8)
Page Size 2048 + 128 bytes
Block Size 64 pages (128KB + 8KB)
On-Die ECC Yes
Random Read 25 µs
Page Program ~250 µs typical
Block Erase ~700 µs typical
Endurance ~100,000 P/E cycles
Operating Temp -40°C to +85°C
Package VFBGA-63 (9x11mm)
Part Status Production

Features

  • 2Gbit SLC NAND with on-die ECC
  • ONFI 1.0 standard command set
  • 2048+128B page with extended spare area
  • SLC technology for ~100K P/E endurance
  • Internal data move (copy back)
  • Interleaved die operations
  • OTP (one-time programmable) area
  • Industrial temperature grade

Applications

  • Industrial firmware and data storage
  • Automotive ECU code storage
  • Networking equipment boot code
  • Consumer electronics code shadowing

The MT29F2G08ABAEAH4-IT:E is a 2Gbit SLC NAND Flash from Micron with x8 parallel interface and on-die ECC, operating at 3.3V with industrial temperature grade (-40°C to +85°C). The 2048+128B page with extended spare area supports ECC metadata storage. SLC technology provides ~100K P/E cycle endurance for reliable code and data storage in industrial, automotive, and networking applications.

Parallel SLC NAND Flash per ONFI 1.0. Memory organized as pages (2048+128 bytes) in blocks (64 pages). The 128-byte spare area stores ECC parity and bad block markers. Page read loads data into register (25µs random access), sequential read at 16ns cycle. Page program (~250µs typical), block erase (~700µs typical). On-die ECC corrects bit errors during reads and verifies during writes, simplifying host-side ECC requirements. SLC stores 1 bit per cell for maximum endurance.

Pin Group Interface Function
I/O0-I/O7 I/O 8-bit multiplexed data/address/command
CE#, WE#, RE# Input Control signals
WP#, R/B# Input/Output Write protect, Ready/Busy
ALE, CLE Input Address/Command latch enable
  • Industrial Linux code storage with on-die ECC
  • Automotive ECU firmware storage
  • Networking router/switch boot code
  • Consumer set-top box code shadowing
Manufacturer Part Number Package Notes
Winbond W29N02KVSIAF TSOP-48 2Gb SLC NAND alternative
Kioxia TH58NVG2S3HBAI4 VFBGA 2Gb SLC NAND alternative
Alliance AS29F2G08 VFBGA 2Gb SLC NAND alternative
