MX30LF2G18AC-TI

2Gbit Parallel SLC NAND Flash, x8, 2KB page, 4-bit ECC, 2.7-3.6V, 48-TSOP

6789

Effective Inventory
Go to Inquiry

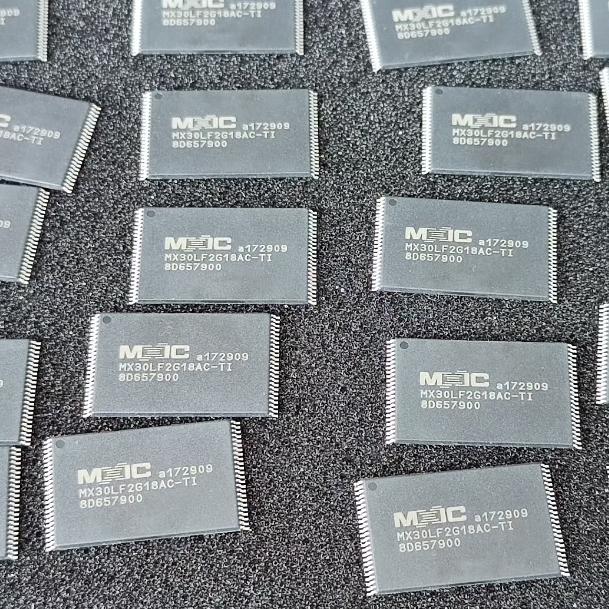

Image for reference only

Manufacturer Part：

MX30LF2G18AC-TI

Package：

48-TSOP

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The MX30LF2G18AC-TI is a 2Gbit SLC NAND Flash memory from Macronix with standard parallel NAND interface and x8 bus width. It operates from 2.7V to 3.6V supply voltage and is ONFI 1.0 compliant. The device features 2KB page size, 128KB block size, and requires 4-bit ECC for data integrity. Packaged in a 48-TSOP for industrial temperature range of -40°C to +85°C. This SLC NAND provides reliable high-density non-volatile storage with 100,000 program/erase cycle endurance and 10-year data retention.

Key Specifications

Memory Type FLASH – NAND SLC (Non-Volatile)
Memory Size 2Gbit (256MB)
Interface Parallel NAND (ONFI 1.0)
Bus Width x8
Page Size 2048 + 64 bytes
Block Size 128K + 4K bytes
ECC Requirement 4-bit ECC per 528 bytes
Voltage Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Package 48-TSOP

Features

  • 2Gbit SLC (Single Level Cell) NAND Flash
  • x8 data bus width
  • ONFI 1.0 compliant interface
  • Page size: (2K + 64) bytes
  • Block size: (128K + 4K) bytes
  • 4-bit ECC per 528 bytes
  • Fast page read: 25us max latency
  • Sequential read: 20ns min cycle time
  • Page program: 300us typical
  • Block erase: 1ms typical
  • 100,000 program/erase cycles
  • 10 years data retention
  • 30 OTP pages
  • ONFI Unique ID
  • Block protection via PT pin & BP bits
  • RoHS compliant

Applications

  • Digital TVs and set-top boxes
  • Networking equipment
  • Industrial control systems
  • Consumer electronics
  • Automotive infotainment
  • Medical devices
  • Multimedia storage
  • Embedded data logging

The MX30LF2G18AC-TI is a 2Gbit 3V SLC NAND Flash memory from Macronix’s MX30LF series. It provides high-density non-volatile storage using Single-Level Cell (SLC) NAND technology for superior reliability and endurance. The device features a standard parallel NAND interface with x8 data bus width and is ONFI 1.0 compliant. The memory has a page size of 2048+64 bytes and a block size of 128K+4K bytes, requiring 4-bit ECC per 528 bytes for data integrity. Performance specifications include 25us maximum page read latency, 20ns minimum sequential read cycle time, 300us typical page program time, and 1ms typical block erase time. The device supports standard NAND commands including cache read, cache program, copy-back, status read, unique ID read, and block protection operations. It features 30 OTP (One-Time Programmable) pages and ONFI standard Unique ID for device identification and security applications. Hardware block protection is available via the PT pin and BP bits. With 100K program/erase cycle endurance and 10-year data retention, it is well-suited for a wide range of embedded storage applications in industrial, consumer, and automotive markets.

The MX30LF2G18AC operates as a parallel SLC NAND Flash memory. SLC (Single-Level Cell) technology stores one bit per memory cell, providing higher reliability, faster access times, and greater endurance compared to MLC NAND. The device communicates via an 8-bit bidirectional data bus (I/O0-I/O7) used for commands, addresses, and data transfer. Control signals include CLE (Command Latch Enable), ALE (Address Latch Enable), CE# (Chip Enable), RE# (Read Enable), and WE# (Write Enable). Read operations transfer a page of data from the NAND array to the internal page buffer (25us max), then output the data sequentially. Program operations load data into the page buffer, then program it into the selected page using Fowler-Nordheim tunneling. Erase operations clear entire blocks using block erase commands. The RY/BY# pin provides hardware status indicating when the device is busy. The 4-bit ECC requirement means the host system must implement error correction to maintain data integrity over the device’s lifetime. Bad blocks are factory-marked and managed by the host.

Pin Type Name Type Description
I/O I/O0-I/O7 I/O 8-bit data input/output bus
Control CLE Input Command Latch Enable
Control ALE Input Address Latch Enable
Control CE# Input Chip Enable, active low
Control RE# Input Read Enable, active low
Control WE# Input Write Enable, active low
Control WP# Input Write Protect, active low
Status RY/BY# Output Ready/Busy, open drain
Power VCC Power 2.7V-3.6V power supply
Power VSS Ground Ground
Other NC – No internal connection
  • Digital TV and set-top box storage
  • Network routers and access points
  • Industrial PLC and data logging
  • Consumer electronics products
  • Automotive infotainment
  • Medical equipment data storage
  • Multimedia player storage
  • Embedded system code + data storage
Manufacturer Part Number Description
Micron MT29F2G08ABAEAWP-IT:E 2Gb SLC NAND, x8, 3V, TSOP
ISSI IS34ML02G081-TLI 2Gb SLC NAND Flash, x8, 3V, TSOP
Winbond W29N02GVSIAA 2Gb SLC NAND, parallel interface
Toshiba/Kioxia TC58NVG2S0HTAI0 2Gb SLC NAND, x8, 3V, TSOP
