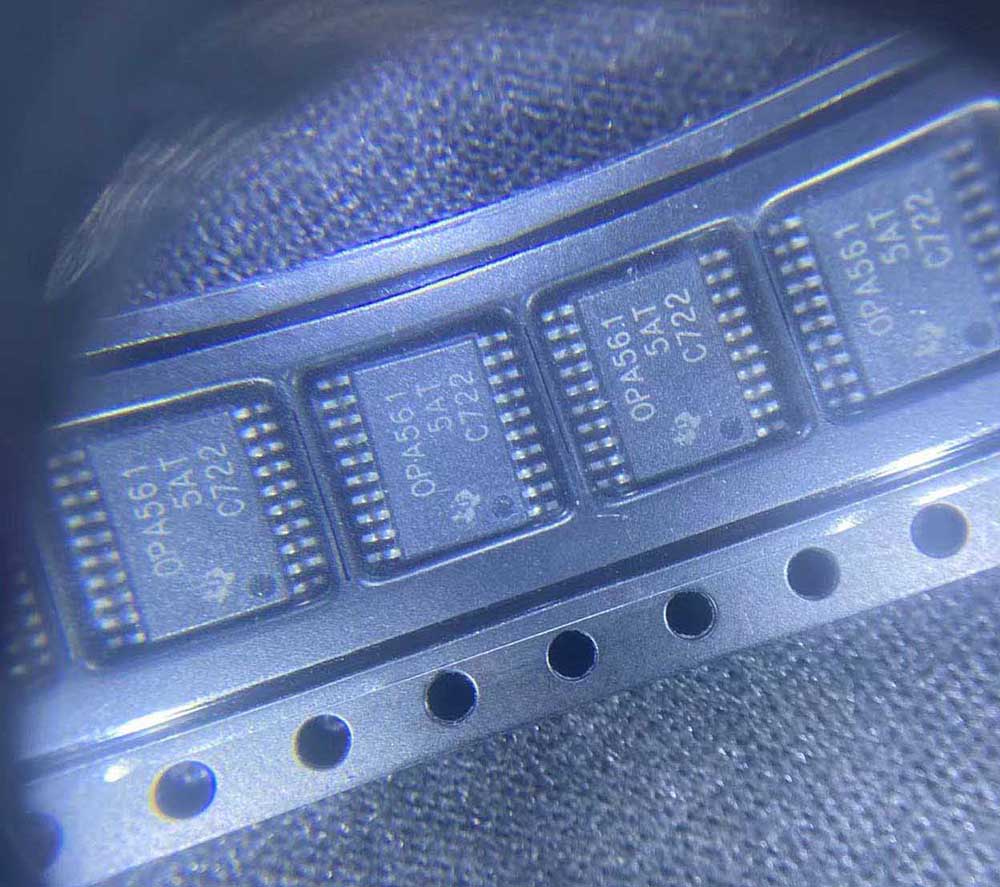

OPA561PWP

High-voltage power op-amp, 1.5A output, ±30V supply, HTSSOP-20 with thermal pad

4180

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

OPA561PWP

Package：

HTSSOP-20 / PWP (6.5 x 4.4 x 1.0 mm, exposed pad)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

RM5532AL

RDA5856TE

RA80H1415M1

R5F109BCK

R2A20178NP

QMC5883L

PS2805C-1-F3-A

PIC32MZ1024ECG100-I

Description

Product Overview

The OPA561PWP is a high-voltage, high-current operational amplifier designed to drive demanding loads in industrial and automotive applications. Capable of delivering up to 1.5A continuous output current and operating from supply voltages up to ±30V, this power op-amp provides robust drive capability for actuators, motors, and power supply control circuits. The PWP package variant features a thermally enhanced HTSSOP-20 package with exposed thermal pad, ensuring efficient heat dissipation for reliable operation at high power levels.

Key Specifications

Number of Channels 1 (Single)
Supply Voltage Range ±5V to ±30V (10V to 60V)
Output Current (Continuous) 1.5 A
Output Current (Peak) 2.5 A
Gain Bandwidth Product 1.2 MHz
Slew Rate 3.5 V/μs
Input Offset Voltage 3 mV (max)
Supply Current (Quiescent) 20 mA
Operating Temperature -40°C to +125°C
Package Type HTSSOP-20 (PWP)

Features

  • High output current: 1.5A continuous, 2.5A peak
  • Wide high-voltage supply range: ±5V to ±30V
  • Built-in thermal shutdown protection
  • Current limit protection (adjustable)
  • Low output saturation voltage
  • Unity-gain stable operation
  • Thermally enhanced package with exposed pad
  • Automotive-grade temperature range: -40°C to +125°C

Applications

  • Motor drive and control circuits
  • Industrial actuator drivers
  • Programmable power supplies
  • High-current audio amplifiers
  • Solenoid and relay drivers
  • Test and measurement equipment
  • Automotive electronics systems
  • Piezoelectric transducer drivers

The OPA561PWP is a high-power operational amplifier engineered for applications requiring substantial output current drive and wide operating voltage range. Capable of sourcing and sinking up to 1.5A continuously with 2.5A peak current capability, this device can directly drive motors, actuators, solenoids, and other high-current loads without the need for external power transistors. Operating from dual supplies of ±5V to ±30V (or single supply 10V to 60V), the OPA561 offers designers flexibility to accommodate various system voltage requirements. The HTSSOP-20 PWP package incorporates an exposed thermal pad on the underside, enabling efficient heat transfer to the PCB and allowing the device to maintain safe operating temperatures even under high-power continuous load conditions. Comprehensive protection features including adjustable current limiting and thermal shutdown safeguard the device and load from fault conditions. The OPA561 is specified for operation over the extended industrial temperature range of -40°C to +125°C, making it suitable for automotive, industrial control, and harsh environment applications.

The OPA561PWP power op-amp architecture consists of three main stages: a differential input stage, a gain stage, and a high-current output stage. The input stage employs a bipolar differential pair with active current mirror load, providing high open-loop gain and good common-mode rejection. The intermediate gain stage uses a cascoded configuration to achieve high voltage gain while maintaining phase margin for stable closed-loop operation. The output stage is the key feature of this power op-amp, utilizing a class AB push-pull configuration with large-area power transistors capable of handling high current densities. An internal current-sense mechanism monitors output current and provides adjustable current limiting through an external resistor, protecting both the amplifier and the connected load from overcurrent conditions. Thermal shutdown circuitry monitors junction temperature and disables the output if excessive heating is detected, automatically recovering once the temperature drops below the safe threshold. The frequency compensation network is designed for unity-gain stability, simplifying design in buffer and low-gain configurations.

Pin Name Type Function
1-5 NC – No internal connection
6 IN+ Input Non-inverting input terminal
7 IN- Input Inverting input terminal
8 V- Power Negative supply voltage
9-10 GND Power Ground / thermal pad connection
11-12 OUT Output Amplifier output (multiple pins bonded)
13 V+ Power Positive supply voltage
14 ILIMIT Input Current limit adjustment pin
15-20 NC – No internal connection
  • DC motor drive and speed control circuits
  • Industrial actuator and valve drivers
  • Programmable power supply control loops
  • High-current solenoid and relay drivers
  • Piezoelectric transducer excitation circuits
  • Automotive electronic control units (ECUs)
Manufacturer Part Number Package Notes
Texas Instruments OPA548 TO-220-7 3A continuous, ±35V, power op-amp
Analog Devices AD815 TO-220 3A high power buffer, ±18V
Linear Tech LT1010 TO-220 Power buffer, ±20V, ±150mA
Apex Micro PA02 TO-3 10A high power op-amp
