P87C15SBAA

80C51 8-bit MCU, 16KB Flash, 512B RAM, 20MHz, QFP-44 package

6800

Effective Inventory
Go to Inquiry

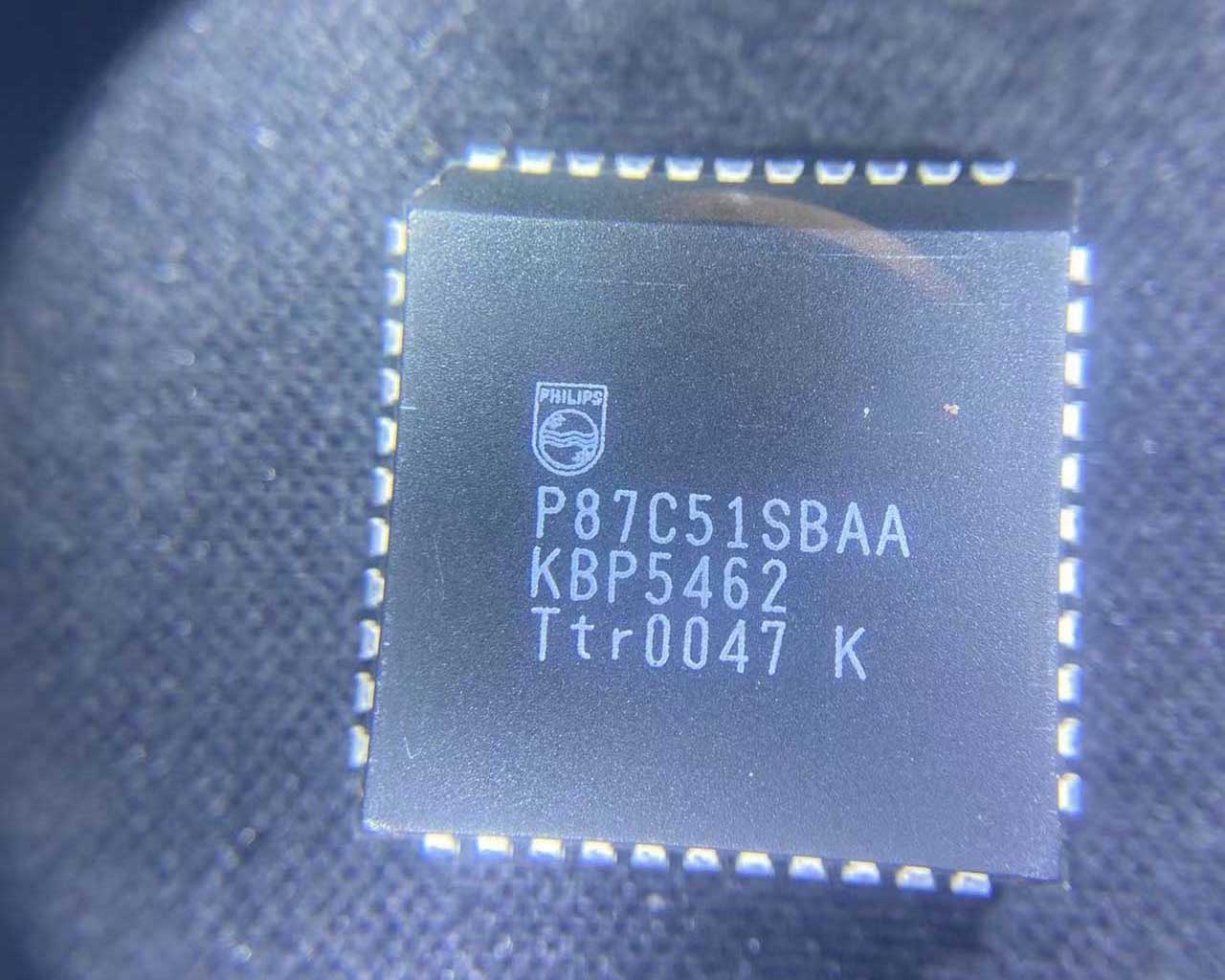

Image for reference only

Manufacturer Part：

P87C15SBAA

Package：

LQFP-44 / SBAA (10 x 10 x 1.4 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The P87C15SBAA is an 8-bit microcontroller based on the classic 80C51 architecture, offering a cost-effective solution for simple embedded control applications. Featuring 16KB of Flash program memory, 512 bytes of RAM, and multiple general-purpose I/O ports, this device provides sufficient resources for basic control tasks, human-machine interfaces, and simple data acquisition. The device operates from a wide supply voltage range and is available in a compact surface-mount package, making it suitable for high-volume consumer electronics, appliance controls, and industrial peripheral applications.

Key Specifications

Core Architecture 80C51 (8-bit)
Flash Program Memory 16 KB
RAM (Internal) 512 bytes
EEPROM (Data) 256 bytes
Operating Frequency Up to 20 MHz
Supply Voltage 2.7V to 5.5V
GPIO Pins Up to 32
Timer/Counters 3 (16-bit)
UART 1 channel
Operating Temperature -40°C to +85°C
Package Type QFP-44 (SBAA)

Features

  • 80C51-compatible 8-bit CPU core
  • 16KB in-system programmable Flash memory
  • 512B internal RAM + 256B EEPROM
  • Wide voltage range: 2.7V to 5.5V
  • Up to 20MHz operating frequency
  • 3-channel 16-bit timers/counters
  • Full-duplex UART serial port
  • Power-saving idle and power-down modes

Applications

  • Home appliance control systems
  • Consumer electronics peripherals
  • Industrial sensor interfaces
  • LED display controllers
  • Keyboard and button scanning
  • Simple data loggers
  • Toys and gaming accessories

The P87C15SBAA is a member of NXP’s 80C51 family of 8-bit microcontrollers, offering a proven architecture with Flash program memory for cost-sensitive embedded control applications. Built around the industry-standard 80C51 core, this device maintains full instruction set compatibility with classic MCS-51 microcontrollers, allowing developers to leverage an extensive ecosystem of development tools, reference code, and engineering expertise. The 16KB of Flash program memory supports in-system programming (ISP), enabling firmware updates without removing the device from the target board, which simplifies both manufacturing and field upgrades. With 512 bytes of internal RAM and 256 bytes of on-chip EEPROM for non-volatile data storage, the P87C15 provides adequate memory resources for a wide range of simple to moderately complex control applications. Operating from a 2.7V to 5.5V supply voltage range and supporting clock frequencies up to 20MHz, this microcontroller offers design flexibility for both 3.3V and 5V system environments. The LQFP-44 package provides up to 32 general-purpose I/O pins, along with three 16-bit timer/counters and a full-duplex UART, covering the most common peripheral requirements for embedded control designs.

The P87C15SBAA microcontroller executes instructions based on the classic 80C51 Harvard architecture, with separate memory spaces for program and data. The CPU fetches instructions from the 16KB Flash program memory via the program counter, which is incremented after each instruction fetch. The 80C51 core uses a 12-clock machine cycle architecture, with most single-byte instructions executing in one machine cycle and more complex instructions requiring two or more cycles. The internal 256 bytes of directly-addressable RAM include the register banks (R0-R7 in four banks), bit-addressable memory regions, and general-purpose storage. An additional 256 bytes of indirect-addressable RAM (upper 128 bytes) expand the total RAM to 512 bytes. The three 16-bit timer/counters can be configured in various modes including 13-bit, 16-bit, 8-bit auto-reload, and split 8-bit timers, providing flexible timing and event counting capabilities. The on-chip UART supports both synchronous and asynchronous serial communication with selectable baud rates derived from timer 1 or timer 2. Power management features include idle mode (CPU stopped, peripherals active) and power-down mode (all clocks stopped, RAM contents preserved) for battery-powered applications.

Pin Group Pins Type Function
Port 0 P0.0-P0.7 I/O 8-bit open-drain I/O port (AD0-AD7 multiplexed)
Port 1 P1.0-P1.7 I/O 8-bit quasi-bidirectional I/O port
Port 2 P2.0-P2.7 I/O 8-bit quasi-bidirectional I/O port (A8-A15 address)
Port 3 P3.0-P3.7 I/O 8-bit I/O with alternate functions (UART, timers, INT)
ALE – Output Address Latch Enable (for external memory access)
PSEN – Output Program Store Enable (external ROM read strobe)
EA – Input External Access: high = internal Flash, low = external memory
RST – Input Active-high reset input
XTAL1/XTAL2 – Analog Crystal oscillator connections
VCC/GND – Power Power supply and ground
  • Home appliance controls (washing machines, microwaves, air conditioners)
  • Consumer electronic remote controls and peripherals
  • Industrial sensor signal processing and interfaces
  • LED/LCD display panel controllers
  • Keypad and matrix button scanning circuits
  • Simple data acquisition and logging devices
