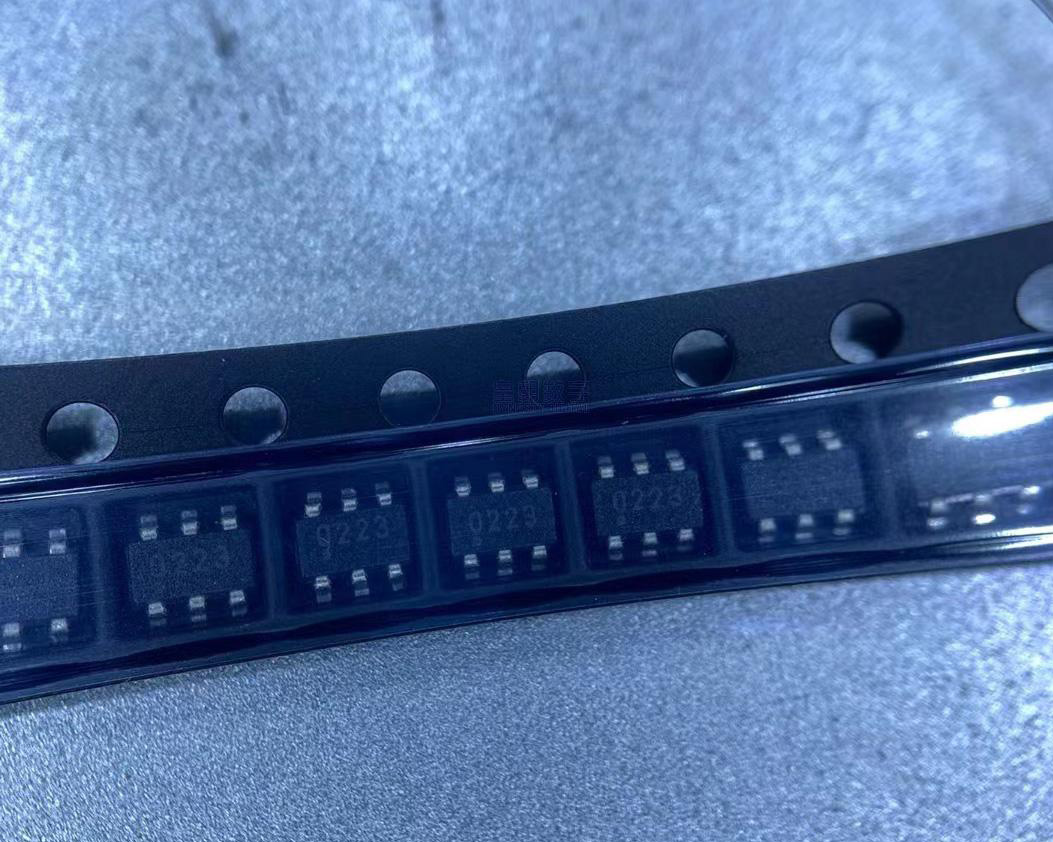

PIC10F202T-I

8-bit tiny MCU, 512W Flash, 4MHz int osc, analog comparator, SOT-23-6

9800

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

PIC10F202T-I

Package：

SOT-23-6 / T-I (2.9 x 1.6 x 1.1 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC10F202T-I is a tiny, low-cost 8-bit microcontroller from Microchip’s PIC10F family, designed for space-constrained and cost-sensitive embedded applications. Featuring just 6 I/O pins in a compact SOT-23 package, this device packs a surprising amount of functionality including 512 words of Flash program memory, 24 bytes of RAM, an 8-bit timer, and internal oscillator. The industrial temperature variant (-40°C to +85°C) is ideal for simple control tasks, sensor interfaces, and glue logic replacement in consumer electronics, automotive accessories, and industrial sensors.

Key Specifications

Core Architecture PIC RISC (8-bit, baseline)
Flash Program Memory 512 words (12-bit instruction)
RAM (Data Memory) 24 bytes
EEPROM None
Internal Oscillator 4 MHz / 125 kHz (selectable)
Supply Voltage 2.0V to 5.5V
GPIO Pins 6 (4 with interrupt-on-change)
Timer TMR0: 8-bit with 8-bit prescaler
Comparator 1 (analog comparator module)
Operating Temperature -40°C to +85°C (Industrial)
Package Type SOT-23-6 (T-I suffix)

Features

  • Ultra-compact SOT-23-6 package
  • 512 words Flash program memory
  • 4 MHz internal oscillator (no external crystal needed)
  • Wide operating voltage: 2.0V to 5.5V
  • Built-in analog comparator module
  • 8-bit Timer0 with prescaler

Applications

  • Simple sensor interfaces and signal conditioning
  • Glue logic replacement
  • LED lighting control
  • Battery-powered portable devices
  • Consumer electronics accessories
  • Automotive interior lighting
  • Keypad and button debouncing
  • Power supply sequencing and monitoring

The PIC10F202T-I is an ultra-small, 6-pin microcontroller from Microchip Technology’s PIC10F family, representing one of the smallest and most cost-effective programmable microcontrollers available. Despite its diminutive size, this device incorporates a complete 8-bit RISC CPU core, 512 words of Flash program memory, 24 bytes of SRAM, and a set of useful peripherals including an 8-bit timer, an analog comparator, and interrupt-on-change GPIO. The integrated 4 MHz internal oscillator eliminates the need for external timing components, further reducing bill of materials cost and PCB space. With a supply voltage range of 2.0V to 5.5V and low power consumption, the PIC10F202 is well-suited for battery-powered applications and designs powered by a wide range of supply rails. The SOT-23-6 surface-mount package occupies barely more than 5 mm² of board space, making it possible to add intelligence to even the most space-constrained designs. The industrial temperature grade variant (-I suffix) is specified for operation from -40°C to +85°C, ensuring reliable performance in a broad range of environmental conditions. For applications requiring the simplest possible microcontroller solution—where traditional 8-bit MCUs would be overkill—the PIC10F202 provides an optimal balance of functionality, size, and cost.

The PIC10F202T-I executes instructions based on Microchip’s baseline PIC RISC architecture, which features a 12-bit instruction word and just 33 unique instructions, most of which execute in a single instruction cycle. The CPU uses a Harvard architecture with separate program and data memory buses, allowing instruction fetch and data access to occur in parallel. Program memory consists of 512 words of Flash, which can be programmed in-system via the ICSP (In-Circuit Serial Programming) interface using only two pins (clock and data). The 24 bytes of general-purpose RAM are mapped into the data memory space, along with the special function registers (SFRs) that control the various peripherals. The internal oscillator block provides selectable frequencies of 4 MHz or 125 kHz, calibrated at the factory to ±1% accuracy at 25°C and 3V. The analog comparator module allows comparison of two analog voltages or monitoring of a single analog input against an internal voltage reference. Timer0 is an 8-bit timer/counter with a programmable 8-bit prescaler, capable of timing events or counting external pulses. The four GPIO pins with interrupt-on-change capability allow the processor to wake from sleep mode upon state changes on selected pins, enabling very low-power operation for duty-cycled applications.

Pin Name Type Function
1 GP0 / ICSPDAT I/O GPIO pin 0 / ICSP data pin
2 GP1 / ICSPCLK I/O GPIO pin 1 / ICSP clock pin
3 GP2 / T0CKI / CIN+ I/O GPIO pin 2 / Timer0 clock input / Comparator + input
4 MCLR / VPP / GP3 Input Master clear / Programming voltage / GPIO input only
5 GP4 / CIN- I/O GPIO pin 4 / Comparator negative input
6 GP5 / T1G / COUT I/O GPIO pin 5 / Timer1 gate / Comparator output
Pad VSS Power Ground (center pad, underside)
  • Simple sensor signal processing and threshold detection
  • Replacing discrete logic gates (AND, OR, flip-flops)
  • LED dimming and breathing light control
  • Battery charge monitoring and low-battery indicators
  • Keypad button debouncing and encoding
  • Power supply enable sequencing and soft-start control
Manufacturer Part Number Package Notes
Microchip PIC10F200 SOT-23-6 384W Flash, no comparator, lower cost
Microchip PIC10F206 SOT-23-6 1024W Flash, 24B RAM, more memory
STC STC15W100 SOP-8 1T 8051 tiny MCU, 1KB Flash, ADC
ESMT AD16F100 SOT-23-6 RISC tiny MCU alternative
Recommend Parts
