PIC12C509-04I

8-bit PIC MCU, 1024W OTP, 41B RAM, 4MHz, 6 I/O, 8-pin package, industrial grade

11200

Effective Inventory
Go to Inquiry

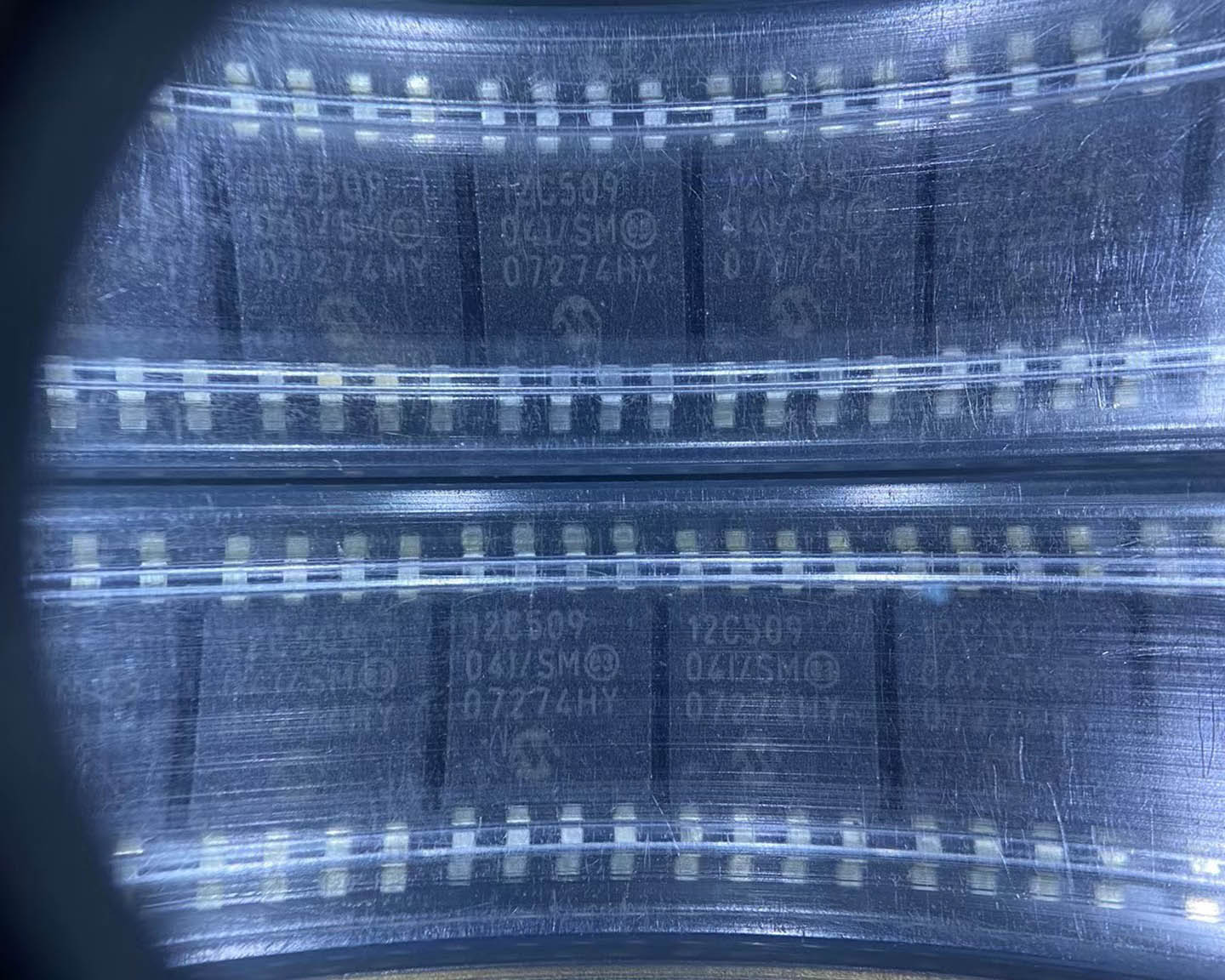

Image for reference only

Manufacturer Part：

PIC12C509-04I

Package：

PDIP-8 / SOIC-8 (3.9 x 4.9 x 1.5 mm SOIC)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC12C509-04I is a classic 8-bit microcontroller from Microchip Technology’s PIC12 family, offering a cost-effective solution for simple embedded control in an 8-pin package. Featuring 1024 words of one-time programmable (OTP) memory, 41 bytes of RAM, a built-in 4 MHz oscillator option, and 6 general-purpose I/O pins, this device provides ample resources for basic control tasks, state machines, and glue logic replacement. The 04I variant operates at 4 MHz with an industrial temperature range of -40°C to +85°C, making it suitable for a wide range of consumer, industrial, and automotive applications requiring reliable, low-cost embedded control.

Key Specifications

Core Architecture PIC RISC (8-bit, baseline)
Program Memory 1024 words (OTP – One Time Programmable)
RAM (Data Memory) 41 bytes
EEPROM None
Oscillator Options RC, LP, XT, HS, EC
Max Frequency 4 MHz
Supply Voltage 2.5V to 5.5V
GPIO Pins 6 bidirectional I/O
Timer TMR0: 8-bit with prescaler
Wake-up from Sleep Pin change, timer overflow
Operating Temperature -40°C to +85°C (Industrial)
Package Type PDIP-8 / SOIC-8 (04I)

Features

  • 1024 words OTP program memory
  • 41 bytes general-purpose RAM
  • 6 I/O pins with high current sink/source capability
  • 8-bit Timer0 with 8-bit prescaler

Applications

  • Simple industrial control
  • Consumer product controllers
  • LED display drivers
  • Keypad scanners
  • Power supply supervisors
  • Automotive accessory controls

The PIC12C509-04I is a member of Microchip’s baseline PIC12 family of 8-pin 8-bit microcontrollers. Built on the proven PIC RISC architecture with just 33 single-word instructions, this device provides a simple yet capable processing platform for cost-sensitive embedded control applications. The program memory consists of 1024 words of one-time programmable (OTP) ROM, which is programmed at the factory or with a device programmer before board assembly—making it ideal for high-volume, stable applications where in-field firmware updates are not required. With 41 bytes of general-purpose RAM and an 8-bit timer/counter with prescaler, the PIC12C509 offers sufficient resources for simple state machines, timing functions, and basic I/O control. The device supports multiple oscillator configurations including precision RC, low-power crystal, standard crystal/ceramic, high-speed crystal, and external clock, allowing designers to trade off between cost, precision, and power consumption based on application requirements. Six of the eight pins are general-purpose I/O, each capable of sourcing and sinking significant current for directly driving LEDs and other small loads. The industrial temperature range (-40°C to +85°C) and wide supply voltage range (2.5V to 5.5V) ensure reliable operation across diverse environmental conditions.

The PIC12C509-04I operates on Microchip’s baseline PIC RISC architecture, featuring a 12-bit instruction word and a two-stage pipeline (fetch and execute) that allows most instructions to complete in a single instruction cycle (4 oscillator cycles). The Harvard architecture separates program and data memory spaces, with 1024 words of OTP program memory addressed by a 10-bit program counter and a 4-level deep hardware stack for subroutine calls. The data memory space contains special function registers (SFRs) for controlling I/O, the timer, and the option register, plus 41 bytes of general-purpose file registers. The Watchdog Timer (WDT) provides protection against software lockups, with an on-chip RC oscillator for independent operation. Timer0 is an 8-bit counter that can be clocked from the instruction cycle (timer mode) or from an external pin (counter mode), with an 8-bit prescaler shared with the Watchdog Timer. The I/O ports are individually configurable as inputs or outputs, with TTL input buffers and CMOS output drivers. The device supports power-saving sleep mode, where the CPU stops executing instructions and all clocks are halted, dramatically reducing power consumption. Wake-up from sleep can be triggered by an external reset, Watchdog Timer timeout, or pin change on selected I/O pins.

Pin Name Type Function
1 VDD Power Positive supply voltage (2.5V to 5.5V)
2 GP5 / T0CKI I/O GPIO pin 5 / Timer0 clock input
3 GP4 / OSC2 / CLKOUT I/O GPIO pin 4 / Oscillator output / Clock output
4 GP3 / MCLR Input GPIO pin 3 (input only) / Master clear reset
5 GP2 / T0CKI / INT I/O GPIO pin 2 / Timer0 clock / External interrupt
6 GP1 I/O GPIO pin 1
7 GP0 I/O GPIO pin 0
8 VSS Power Ground reference
  • Simple industrial sensor interfaces and threshold detectors
  • Consumer appliance control panels and indicators
  • LED multiplexing and 7-segment display drivers
  • Matrix keypad scanning and encoding
  • Power supply monitoring and reset generation
  • Automotive interior lighting control modules
Manufacturer Part Number Package Notes
Microchip PIC12F509 SOIC-8 Flash version, 1024W, reprogrammable
Microchip PIC12C508 SOIC-8 512W OTP, smaller memory, lower cost
Microchip PIC12F675 SOIC-8 1024W Flash, 128B RAM, ADC, comparator
Atmel ATtiny13 SOIC-8 AVR 8-bit MCU, 1KB Flash, ADC
