PIC12F509-I

8-pin 8-bit Flash MCU, 1024W Flash, 41B RAM, 4MHz int osc, industrial grade

9200

Effective Inventory
Go to Inquiry

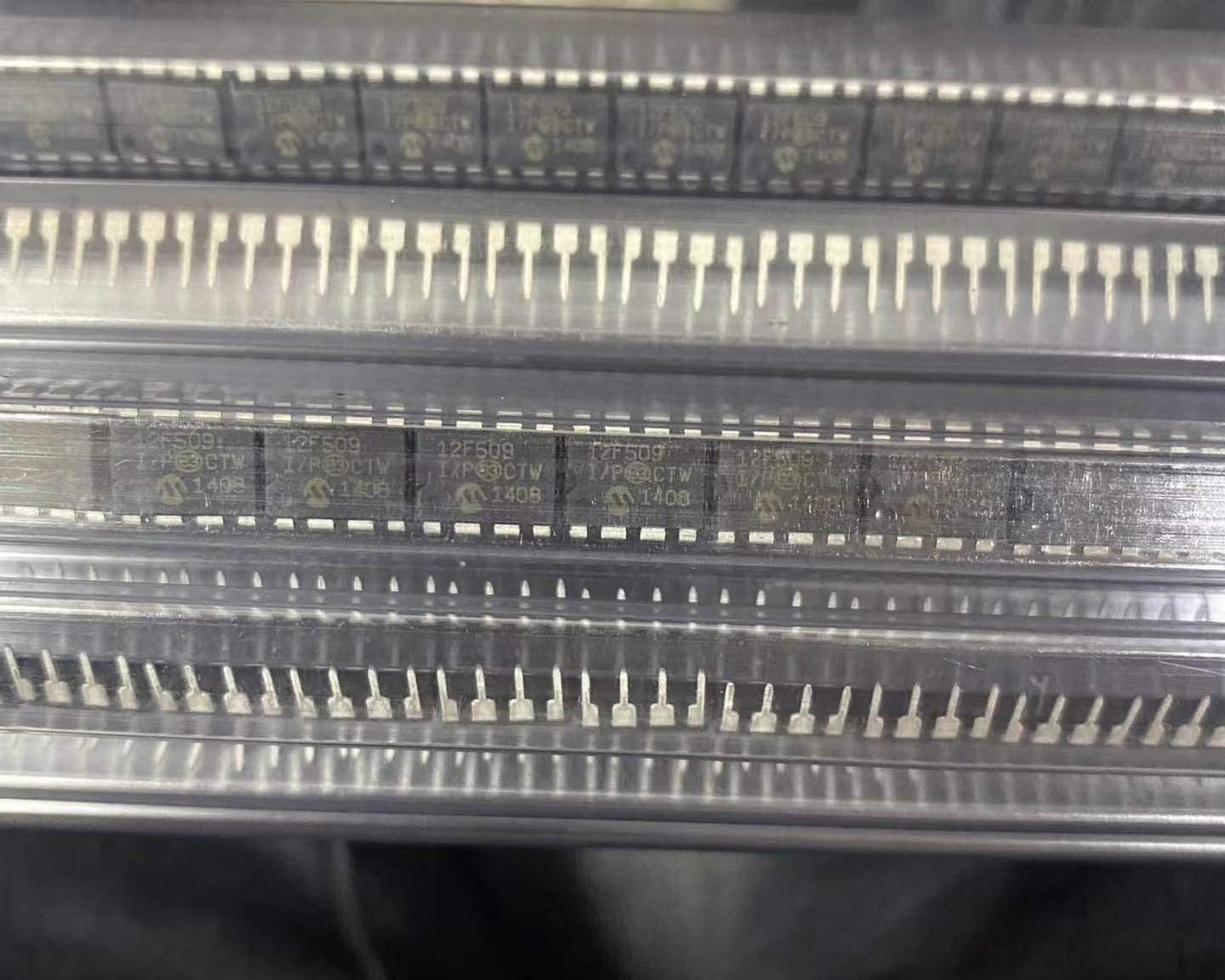

Image for reference only

Manufacturer Part：

PIC12F509-I

Package：

SOIC-8 (3.9 x 4.9 x 1.5 mm) / PDIP-8

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC12F509-I is an 8-pin, 8-bit Flash microcontroller from Microchip Technology, offering a cost-effective and flexible solution for simple embedded control applications. Featuring 1024 words of Flash program memory with in-circuit serial programming (ICSP) capability, 41 bytes of RAM, and 6 general-purpose I/O pins, this device provides reprogrammable functionality in a compact package. The industrial temperature variant operates reliably from -40°C to +85°C, making it suitable for consumer electronics, industrial sensors, automotive accessories, and battery-powered devices.

Key Specifications

Core Architecture PIC RISC (8-bit, baseline)
Flash Program Memory 1024 words (12-bit)
RAM (Data Memory) 41 bytes
EEPROM None
Internal Oscillator 4 MHz (±1% calibrated)
Oscillator Options INTOSC, RC, XT, HS, LP, EC
Supply Voltage 2.0V to 5.5V
GPIO Pins 6 bidirectional I/O
Timer TMR0: 8-bit with prescaler
Operating Temperature -40°C to +85°C (Industrial)
Package Type SOIC-8 / PDIP-8 (I suffix)

Features

  • 1024 words of Flash program memory (reprogrammable)
  • In-Circuit Serial Programming (ICSP) support
  • 4 MHz calibrated internal oscillator
  • Wide operating voltage range: 2.0V to 5.5V
  • 6 I/O pins with high current drive capability
  • 8-bit Timer0 with 8-bit programmable prescaler
  • Power-on Reset and Power-up Timer
  • Watchdog Timer with independent oscillator
  • Industrial temperature grade: -40°C to +85°C

Applications

  • Simple sensor interfaces
  • LED lighting and display control
  • Consumer product controllers
  • Keypad and button scanning
  • Power supply supervisors
  • Battery-powered portable devices
  • Automotive interior electronics
  • Glue logic replacement

The PIC12F509-I is a member of Microchip’s PIC12F family of 8-pin Flash microcontrollers, built on the proven baseline PIC RISC architecture with 33 single-word instructions. Unlike its OTP (One-Time Programmable) predecessor the PIC12C509, the PIC12F509 features Flash program memory that can be reprogrammed multiple times, enabling firmware updates in the field or during product development cycles. In-Circuit Serial Programming (ICSP) allows the device to be programmed while mounted on the target board using just two pins (clock and data), eliminating the need for socketed programming and simplifying manufacturing. The device includes a factory-calibrated 4 MHz internal oscillator with ±1% accuracy at room temperature, reducing external component count and PCB space requirements. With 1024 words of program memory, 41 bytes of RAM, and an 8-bit timer/counter, the PIC12F509 provides sufficient resources for a wide range of simple control tasks, state machines, and timing applications. Six general-purpose I/O pins offer high current sink/source capability for directly driving LEDs and other loads. The industrial temperature range specification ensures reliable operation in demanding environmental conditions.

The PIC12F509-I executes instructions using the baseline PIC RISC Harvard architecture, where program and data memory are accessed through separate buses. The 12-bit wide instruction word supports 33 unique instructions, most of which execute in a single instruction cycle (four oscillator periods). A two-stage pipeline overlaps instruction fetch with execution, maximizing throughput. Program memory consists of 1024 words of Flash, addressed by a 10-bit program counter with a 4-level deep hardware stack for subroutine calls. Data memory is organized as 41 bytes of general-purpose registers plus Special Function Registers (SFRs) that control I/O, the timer, and system configuration. The internal oscillator block provides a 4 MHz system clock (1 MHz instruction cycle) that is calibrated during manufacturing to achieve ±1% accuracy at 25°C and 3V. The Timer0 module is an 8-bit counter with a programmable 8-bit prescaler, configurable to count instruction cycles (timer mode) or external pulses (counter mode). The device includes multiple power-saving features including Sleep mode, which halts the CPU while maintaining RAM contents, and can be woken by external pin interrupts, Watchdog Timer timeout, or reset. Power-on Reset (POR), Power-up Timer (PWRT), and Oscillator Start-up Timer (OST) ensure reliable power-up sequencing.

Pin Name Type Function
1 VDD Power Positive supply voltage (2.0V to 5.5V)
2 GP5 / T0CKI I/O GPIO pin 5 / Timer0 external clock input
3 GP4 / OSC2 / CLKOUT I/O GPIO pin 4 / Oscillator output / Clock output
4 GP3 / MCLR / VPP Input GPIO pin 3 (input only) / Master Clear / Programming voltage
5 GP2 / T0CKI I/O GPIO pin 2 / Timer0 clock input (alternate)
6 GP1 / ICSPDAT I/O GPIO pin 1 / ICSP data pin
7 GP0 / ICSPCLK I/O GPIO pin 0 / ICSP clock pin
8 VSS Power Ground reference (0V)
  • Simple industrial sensor signal conditioning and thresholds
  • LED brightness control and decorative lighting effects
  • Consumer appliance user interface controllers
  • Keypad debouncing and matrix scanning circuits
  • Power supply sequencing and reset generation
  • Battery-powered portable instrument indicators
Manufacturer Part Number Package Notes
Microchip PIC12F508 SOIC-8 512W Flash, smaller memory, lower cost
Microchip PIC12F675 SOIC-8 1024W Flash, 128B RAM, ADC + comparator
Atmel ATtiny13A SOIC-8 AVR core, 1KB Flash, ADC, low power
STC STC15W104 SOP-8 1T 8051 core, 4KB Flash, ADC
