PIC12F629-I

8-pin MCU with analog comparator, 1024W Flash, 64B RAM, 128B EEPROM, 16-bit timer

7500

Effective Inventory
Go to Inquiry

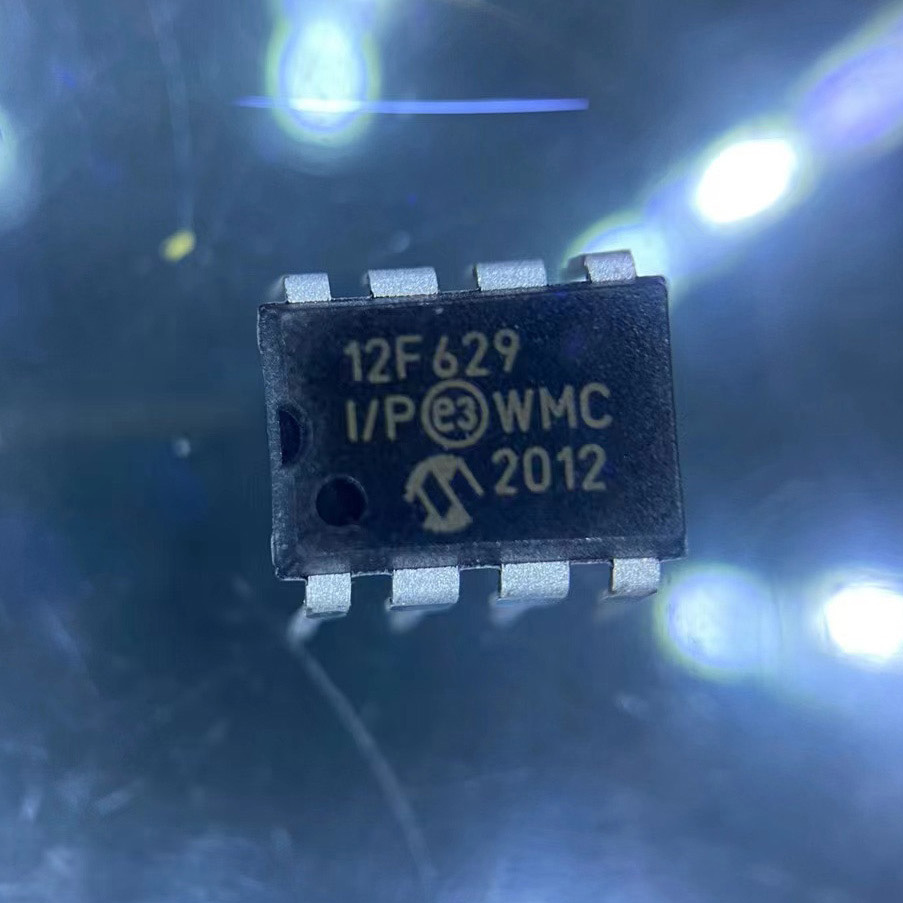

Image for reference only

Manufacturer Part：

PIC12F629-I

Package：

SOIC-8 (3.9 x 4.9 x 1.5 mm) / PDIP-8

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC12F629-I is an enhanced 8-pin 8-bit Flash microcontroller featuring a comparator module and higher RAM capacity compared to the baseline PIC12F509 series. With 1024 words of Flash program memory, 64 bytes of RAM, an analog comparator module, and internal oscillator with selectable frequencies, this device offers enhanced analog capabilities in a compact 8-pin package. The industrial temperature variant is ideal for battery monitoring, sensor interfaces, and analog signal processing applications where space is at a premium.

Key Specifications

Core Architecture PIC RISC (8-bit, mid-range)
Flash Program Memory 1024 words (14-bit)
RAM (Data Memory) 64 bytes
EEPROM 128 bytes
Internal Oscillator 4 MHz / 8 MHz / 125 kHz
Supply Voltage 2.0V to 5.5V
GPIO Pins 6 (5 with interrupt-on-change)
Analog Comparator 1 (with multiplexed inputs)
Timer TMR0: 8-bit + TMR1: 16-bit
Operating Temperature -40°C to +85°C (Industrial)
Package Type SOIC-8 / PDIP-8 (I suffix)

Features

  • 1024 words Flash program memory with ICSP
  • 64 bytes RAM + 128 bytes EEPROM
  • Built-in analog comparator module
  • 16-bit Timer1 + 8-bit Timer0
  • Multi-speed internal oscillator (4/8 MHz)
  • Interrupt-on-change on 5 I/O pins
  • Power-on Reset and Brown-out Reset

Applications

  • Battery voltage monitoring
  • Analog sensor interfaces
  • Threshold detectors and comparators
  • Power supply supervisors
  • LED control with dimming
  • Portable medical devices
  • Industrial limit switches

The PIC12F629-I is a mid-range 8-pin Flash microcontroller from Microchip Technology that adds analog comparator capability and expanded peripheral features compared to the baseline PIC12F5xx family. Built on a 14-bit instruction core with 35 instructions (including interrupt support), this device provides significantly more processing capability while maintaining the same compact 8-pin form factor. The integrated analog comparator module allows the device to monitor analog signals without an external comparator IC, making it ideal for voltage monitoring, level detection, and simple analog signal processing applications. With 1024 words of Flash program memory, 64 bytes of RAM, and 128 bytes of EEPROM for non-volatile data storage, the PIC12F629 offers a well-balanced mix of resources for small to medium complexity control tasks. The dual timer architecture—combining an 8-bit Timer0 with a 16-bit Timer1—provides flexible timing and event counting capabilities, with Timer1 capable of running asynchronously from a secondary low-frequency crystal for real-time clock applications. The internal oscillator supports multiple speed selections including 8 MHz, 4 MHz, and 125 kHz, allowing the application to dynamically trade off between performance and power consumption. The industrial temperature rating ensures reliable operation in challenging environments.

The PIC12F629-I is based on Microchip’s mid-range PIC architecture with a 14-bit instruction word, supporting 35 instructions including interrupt handling with multiple interrupt sources. The Harvard architecture uses separate program and data buses, with a two-stage pipeline for efficient execution. Program memory consists of 1024 words of Flash, addressable by an 11-bit program counter with an 8-level deep hardware stack. The data memory space contains 64 bytes of general-purpose RAM, organized in banks, along with Special Function Registers for peripheral control. The analog comparator module features one comparator with two multiplexed inputs and a selectable voltage reference, configurable for various modes including window comparison and hysteresis. Timer0 is an 8-bit timer/counter with an 8-bit prescaler, while Timer1 is a 16-bit timer/counter with its own prescaler and support for asynchronous external crystal operation. The EEPROM module provides 128 bytes of non-volatile data storage accessible through special function registers, with automatic erase-before-write operation. The internal oscillator block generates the system clock at selectable frequencies of 8 MHz, 4 MHz, 2 MHz, 1 MHz, or 125 kHz, all factory-calibrated for accuracy. Interrupt sources include Timer0 overflow, Timer1 overflow, comparator output change, GPIO pin change, and EEPROM write completion.

Pin Name Type Function
1 VDD Power Positive supply voltage (2.0V to 5.5V)
2 GP5 / T1CKI / OSC1 I/O GPIO pin 5 / Timer1 clock input / Oscillator input
3 GP4 / AN3 / T1G / OSC2 I/O GPIO pin 4 / Analog input 3 / Timer1 gate / Oscillator output
4 GP3 / MCLR / VPP Input GPIO pin 3 (input only) / Master Clear / Programming voltage
5 GP2 / AN2 / T0CKI / INT I/O GPIO pin 2 / Analog input 2 / Timer0 clock / External interrupt
6 GP1 / AN1 / CIN+ / ICSPDAT I/O GPIO pin 1 / Analog input 1 / Comparator + input / ICSP data
7 GP0 / AN0 / CIN- / ICSPCLK I/O GPIO pin 0 / Analog input 0 / Comparator – input / ICSP clock
8 VSS Power Ground reference
  • Battery charge level monitoring and low-battery detection
  • Analog sensor threshold detection and alarm circuits
  • Over-voltage and under-voltage protection supervisors
  • Simple LED drivers with analog dimming control
  • Portable medical device status indicators
  • Industrial limit switch and position sensor interfaces
Manufacturer Part Number Package Notes
Microchip PIC12F675 SOIC-8 10-bit ADC added, same pinout, drop-in upgrade
Microchip PIC12F615 SOIC-8 896W Flash, PWM, comparator, lower cost
Atmel ATtiny25 SOIC-8 AVR core, 2KB Flash, ADC, comparator
Nuvoton MS51FB0AE TSSOP-8 1T 8051, 4KB Flash, ADC, 128B EEPROM
