PIC12F675-I-DIP

8-pin MCU with 10-bit ADC, 1024W Flash, comparator, 128B EEPROM, DIP-8 package

6300

Effective Inventory
Go to Inquiry

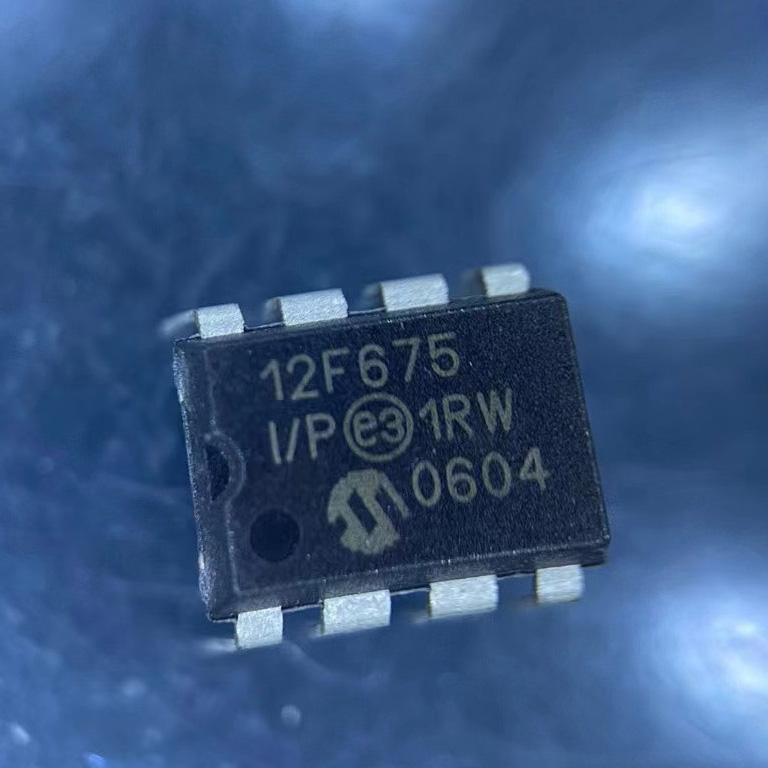

Image for reference only

Manufacturer Part：

PIC12F675-I-DIP

Package：

PDIP-8 / DIP-8 (6.35 x 9.27 x 3.3 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC12F675-I-DIP is an 8-pin 8-bit Flash microcontroller with a 10-bit analog-to-digital converter (ADC), offering analog measurement capability in a compact through-hole package. Featuring 1024 words of Flash memory, 64 bytes of RAM, 128 bytes of EEPROM, a 10-bit ADC with 4 channels, and an analog comparator, this device is one of the most feature-rich 8-pin MCUs available. The DIP-8 package variant with industrial temperature rating is ideal for prototyping, hobbyist projects, educational use, and low-volume industrial applications requiring easy socketed programming.

Key Specifications

Core Architecture PIC RISC (8-bit, mid-range)
Flash Program Memory 1024 words (14-bit)
RAM (Data Memory) 64 bytes
EEPROM Data Memory 128 bytes
ADC Resolution 10-bit, 4 channels
Analog Comparator 1 channel
Internal Oscillator 4 MHz / 8 MHz (calibrated)
Supply Voltage 2.0V to 5.5V
GPIO Pins 6 (5 with interrupt-on-change)
Timers TMR0 (8-bit) + TMR1 (16-bit)
Operating Temperature -40°C to +85°C (Industrial)
Package Type PDIP-8 / DIP-8 (through-hole)

Features

  • 10-bit ADC with 4 analog input channels
  • 1024 words Flash program memory (ICSP capable)
  • 64B RAM + 128B EEPROM non-volatile storage
  • Built-in analog comparator module
  • 16-bit Timer1 + 8-bit Timer0
  • 8 MHz calibrated internal oscillator
  • Interrupt-on-change GPIO pins

Applications

  • Sensor data acquisition and logging
  • Analog voltage and current monitoring
  • Temperature measurement with thermistors
  • Battery fuel gauging
  • Prototyping and educational projects
  • DIY electronics and maker projects
  • Industrial analog signal processing

The PIC12F675-I-DIP is a highly integrated 8-pin Flash microcontroller from Microchip Technology, notable for packing a 10-bit analog-to-digital converter into an 8-pin package. This device represents the top-of-the-line offering in the PIC12F 8-pin family, combining analog measurement capability with a full set of digital peripherals in a compact through-hole DIP-8 package that facilitates easy prototyping and socket-based programming. The 10-bit successive approximation ADC provides 4 analog input channels, enabling precise measurement of analog voltages from sensors, potentiometers, and other analog signal sources without requiring external ADC components. With 1024 words of Flash program memory, 64 bytes of RAM, and 128 bytes of EEPROM for parameter and data storage, the PIC12F675 offers ample resources for moderately complex embedded control applications. Additional peripherals include an analog comparator, 8-bit Timer0, 16-bit Timer1, and multiple interrupt sources, providing design flexibility for a wide range of applications. The through-hole DIP-8 package is particularly popular among hobbyists, educators, and prototypers due to its compatibility with solderless breadboards and easy hand soldering. The industrial temperature grade variant ensures reliable performance across a wide range of operating conditions.

The PIC12F675-I-DIP employs Microchip’s mid-range 14-bit PIC RISC architecture with 35 instructions and hardware interrupt support. The Harvard architecture uses separate program and data memory buses, allowing instruction fetch and data access to occur simultaneously through a two-stage pipeline. Program memory consists of 1024 words of Flash, with an 8-level deep hardware stack for subroutine and interrupt handling. The 10-bit ADC module uses a successive approximation register (SAR) architecture, capable of converting analog voltages in the range of 0V to VREF with 10-bit resolution (1024 discrete levels). The ADC has four multiplexed analog input channels shared with digital I/O pins, and can use either VDD or an external voltage reference. Conversion can be triggered manually or automatically by Timer1 overflow for periodic sampling. The analog comparator module complements the ADC by providing fast analog signal comparison with configurable hysteresis. Timer0 (8-bit) and Timer1 (16-bit) provide flexible timing and counting capabilities, with Timer1 supporting asynchronous low-speed crystal operation for real-time clock functions. The 128-byte EEPROM provides non-volatile data storage that is preserved across power cycles, useful for storing calibration data, configuration parameters, and user settings. The internal oscillator provides selectable system clock frequencies up to 8 MHz, factory calibrated for accuracy.

Pin Name Type Function
1 VDD Power Positive supply voltage (2.0V to 5.5V)
2 GP5 / T1CKI / OSC1 / CLKIN I/O GPIO 5 / Timer1 clock / Oscillator input / Clock input
3 GP4 / AN3 / T1G / OSC2 / CLKOUT I/O GPIO 4 / ADC channel 3 / Timer1 gate / Oscillator / Clock out
4 GP3 / MCLR / VPP Input GPIO 3 (input only) / Master Clear / Programming voltage
5 GP2 / AN2 / T0CKI / INT I/O GPIO 2 / ADC channel 2 / Timer0 clock / External interrupt
6 GP1 / AN1 / CIN+ / VREF / ICSPDAT I/O GPIO 1 / ADC CH1 / Comparator + / Vref+ / ICSP data
7 GP0 / AN0 / CIN- / ICSPCLK I/O GPIO 0 / ADC CH0 / Comparator – / ICSP clock
8 VSS Power Ground reference (0V)
  • Multi-channel sensor data acquisition and temperature logging
  • DC voltage and current monitoring in power supplies
  • Thermistor and RTD temperature measurement circuits
  • Battery state-of-charge monitoring and fuel gauging
  • Electronics prototyping and STEM education platforms
  • DIY projects, maker builds, and hobbyist electronics
Manufacturer Part Number Package Notes
Microchip PIC12F675-I/SN SOIC-8 Surface-mount version of same chip
Atmel ATtiny45 DIP-8 AVR core, 4KB Flash, 8-bit ADC, popular
STC STC15W201S DIP-8 1T 8051, 1KB Flash, 8-bit ADC, low cost
Padauk PMS150C DIP-8 Ultra-low cost 8-bit MCU with ADC
